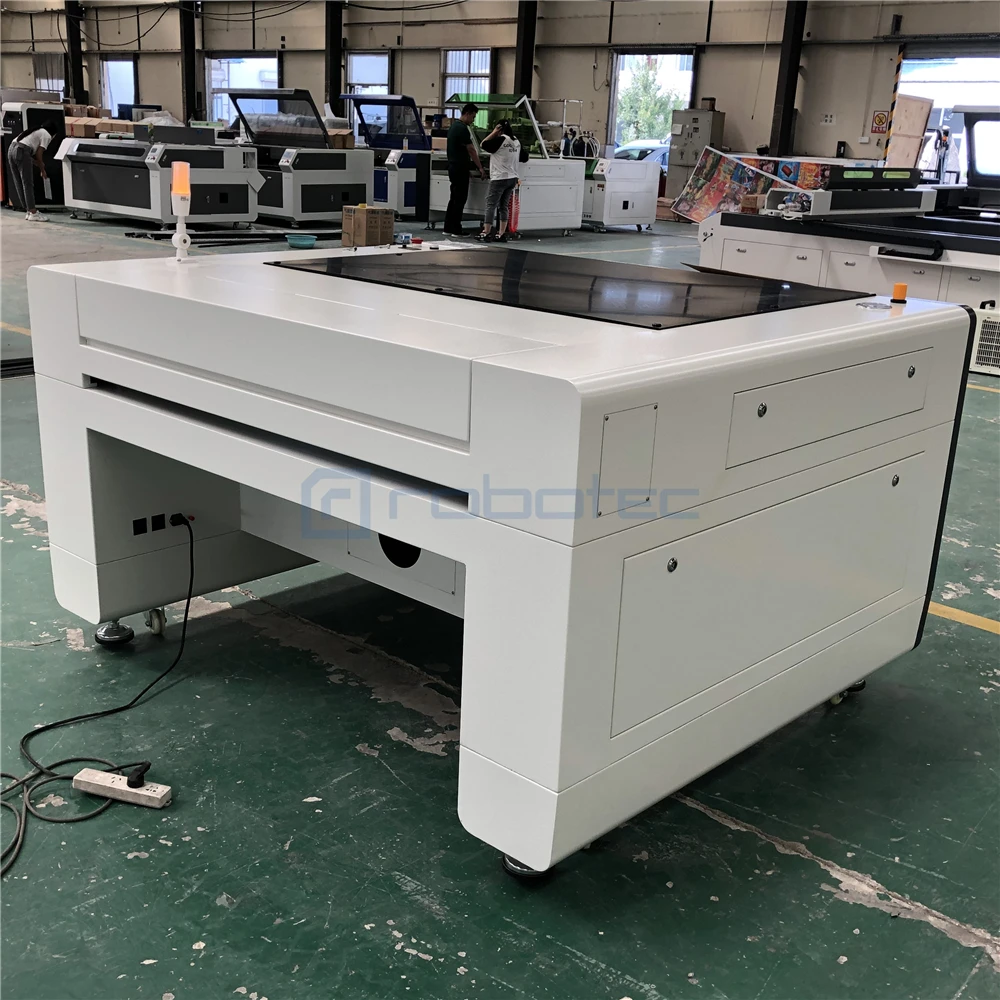

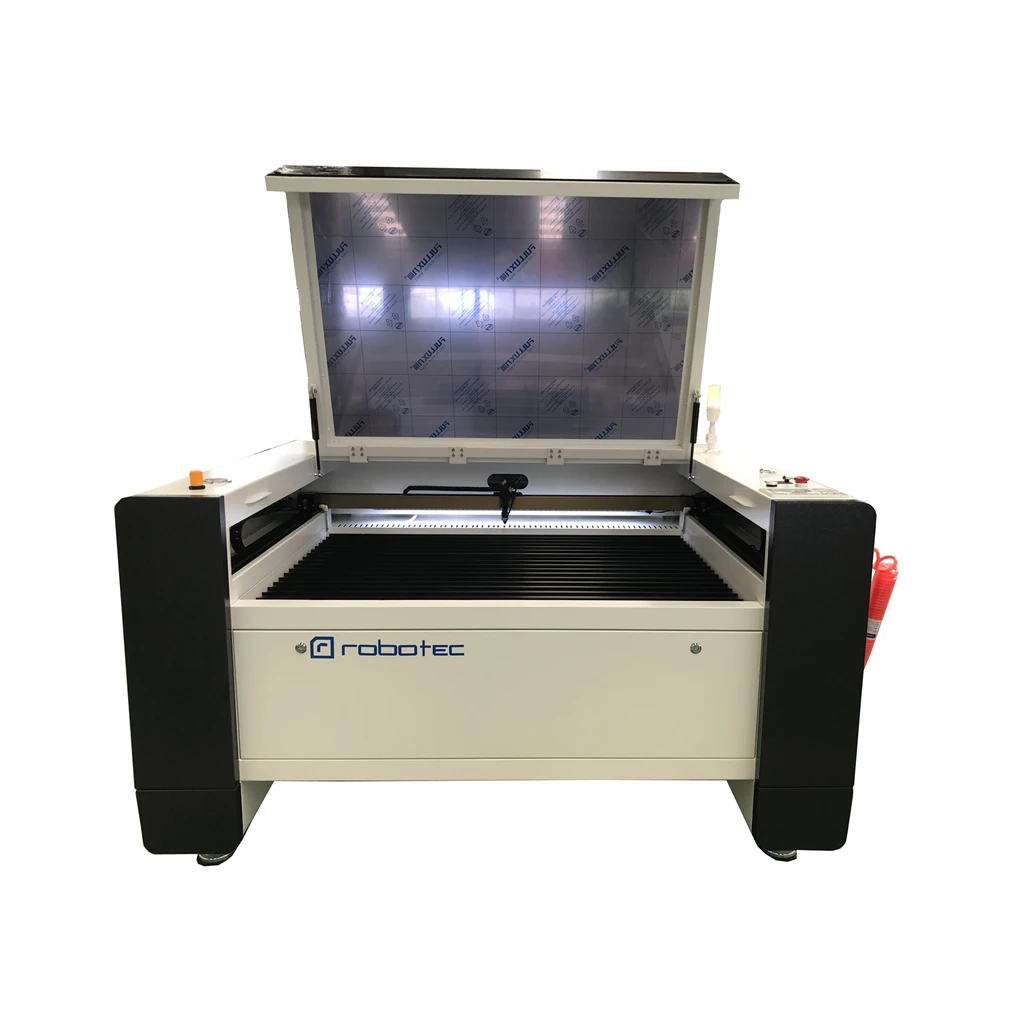

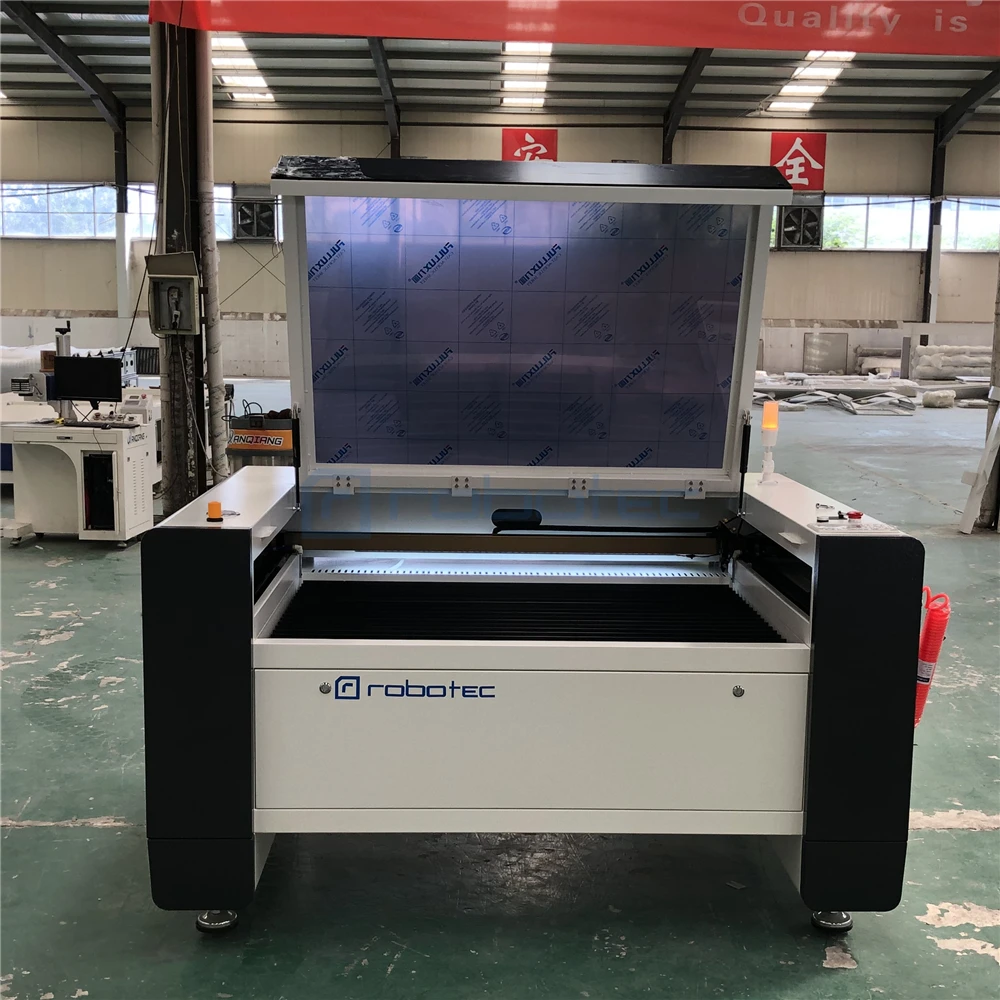

Оптовая продажа продукции 1300x900 мм рабочий размер Co2 CNC лазерный режущий станок 150 Вт CNC лазерный гравер с противопожарной защитой

laser engraving machine machine description:

Item  /  Model

RTJ-1390I laser engraving/cutting machine

Cutting area

1300 x 900mm

Laser power

80W/100w/150w/180w

Laser type

CO2 sealed laser tube,water-cooled,10.6um

Engraving speed

0-60000mm/min

Cutting speed

0-40000mm/min

Laser Output

1-100%software setting

Resetting positioning accuracy

≤±0.01mm

Power supply

220V/50HZ (Optional 110V/60HZ)

Operating temperature

0 - 45°C

Operating humidity

5 - 95%

Min. shaping character

English 1.0 x 1.0mm

Graphic format supported

BMP, PLT, DST, DXF, AI

Software supported

TAJIMA, CorelDraw, Photoshop, AutoCAD

Driving system

stepper motor

Cooling mode

Water-cooling and protection system

Equipment Dimensions

1990x1400x1470mm

Net Weight:

550kg

Shipping Dimensions

2090 x 1500 x 1570mm

Optional Spare Parts

Up-down clump, Rotary System, Honeycomb table

Recommended Spare Parts

Laser Tube and Lens

>> Laser cutting engraving machine features:

1.3mm Cold-rolled steel welded machine bed, strong and running stable.

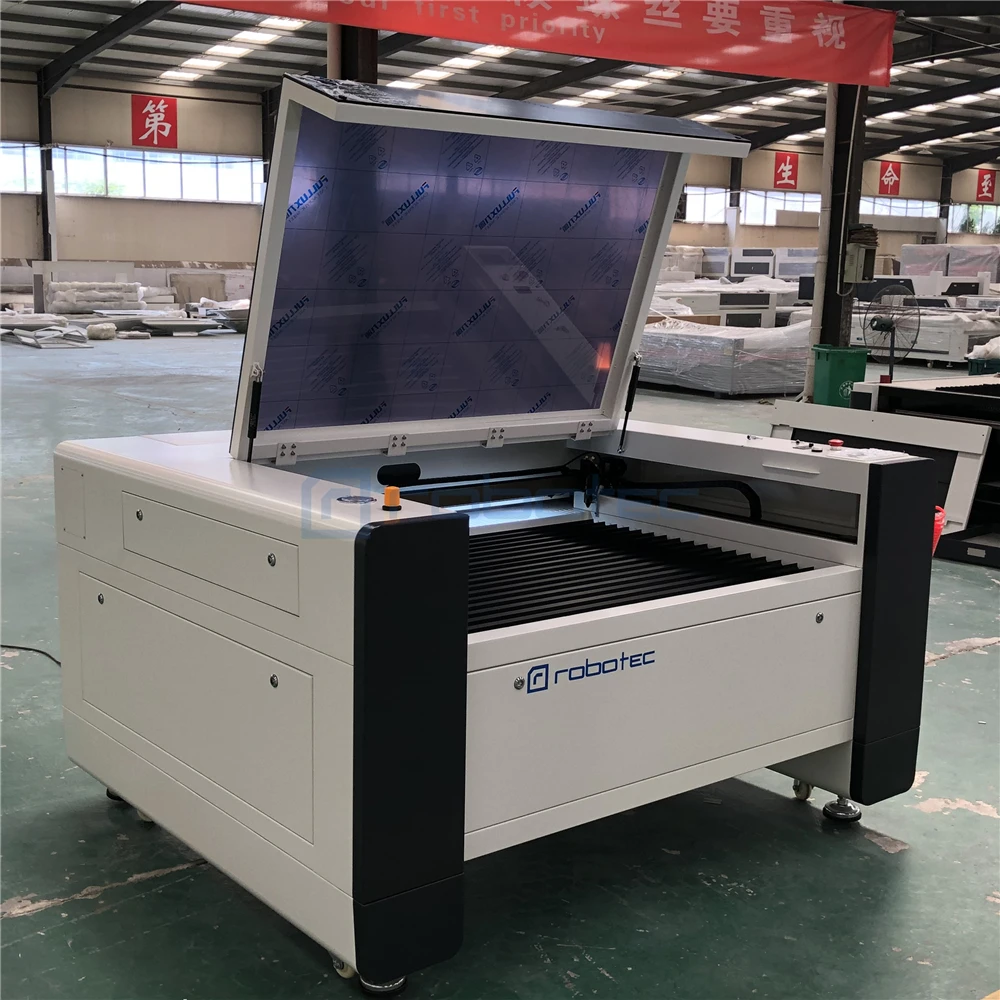

2. Aluminium blade table: to process hard materials like acrylic, wood and so on.

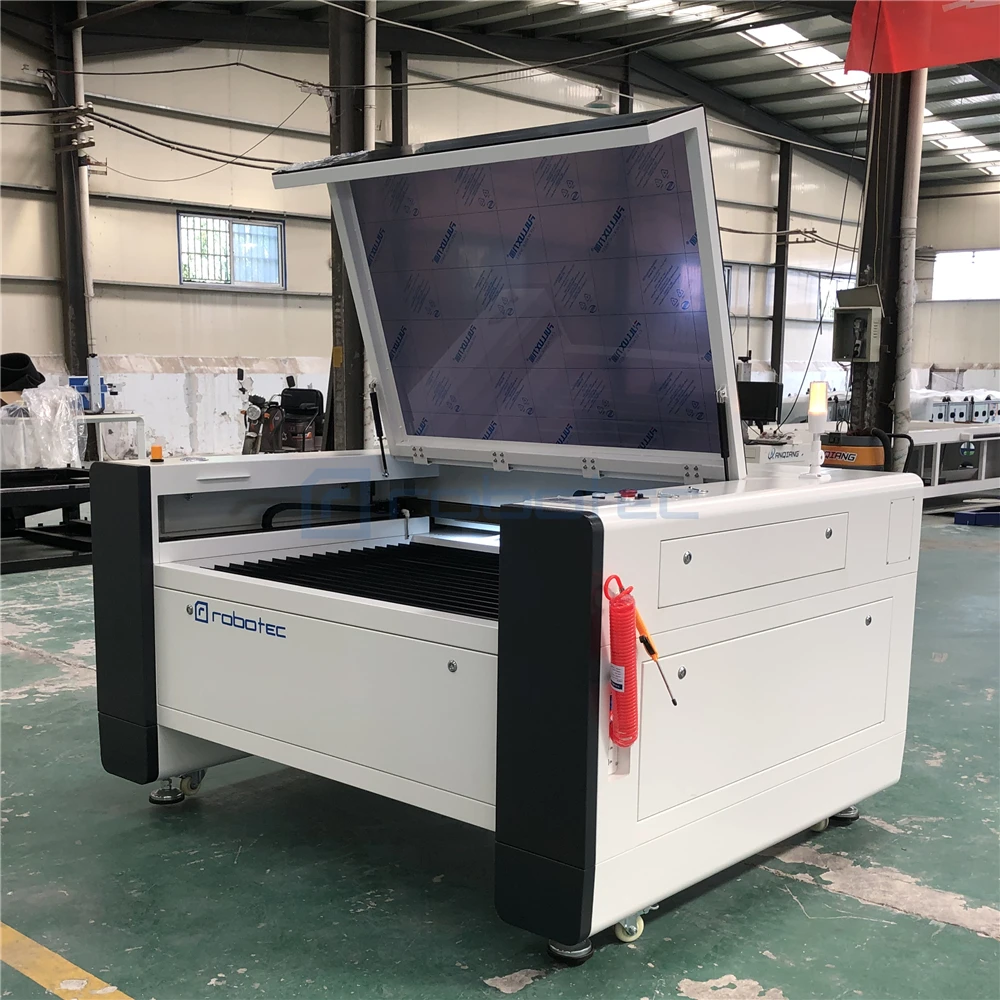

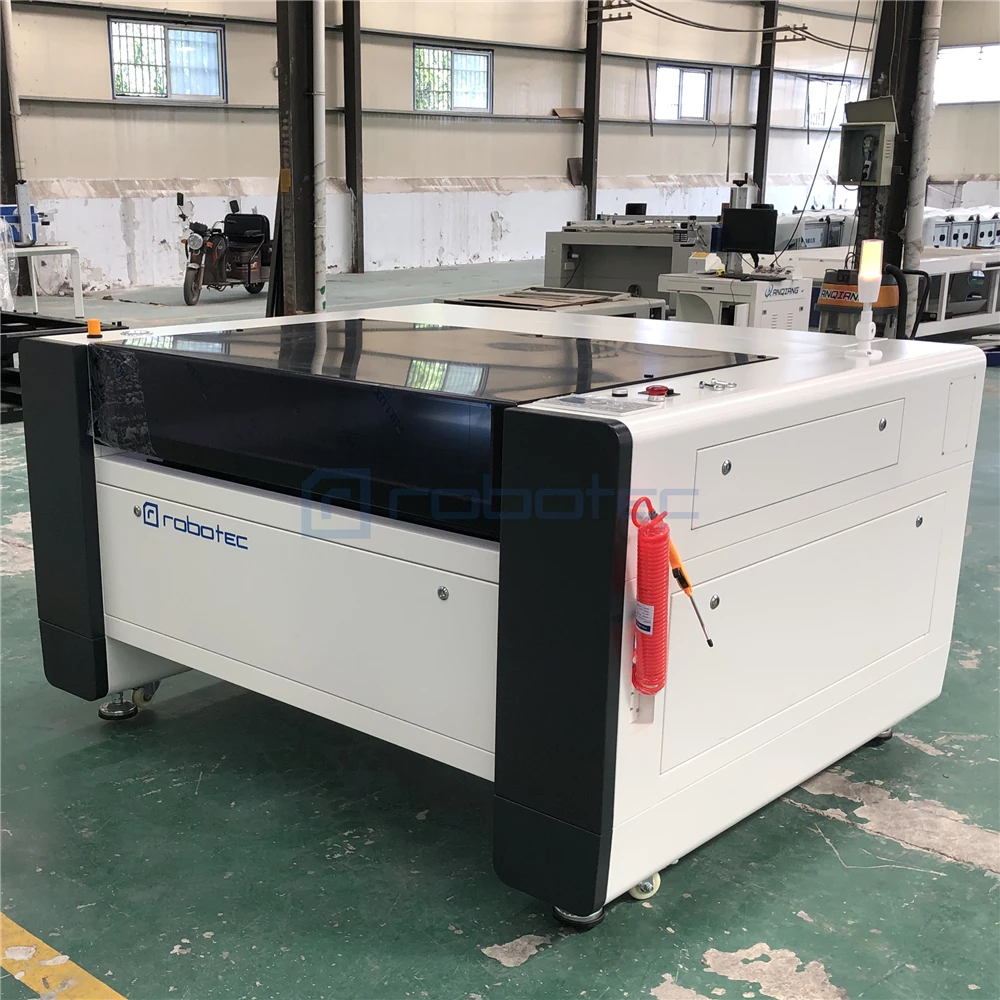

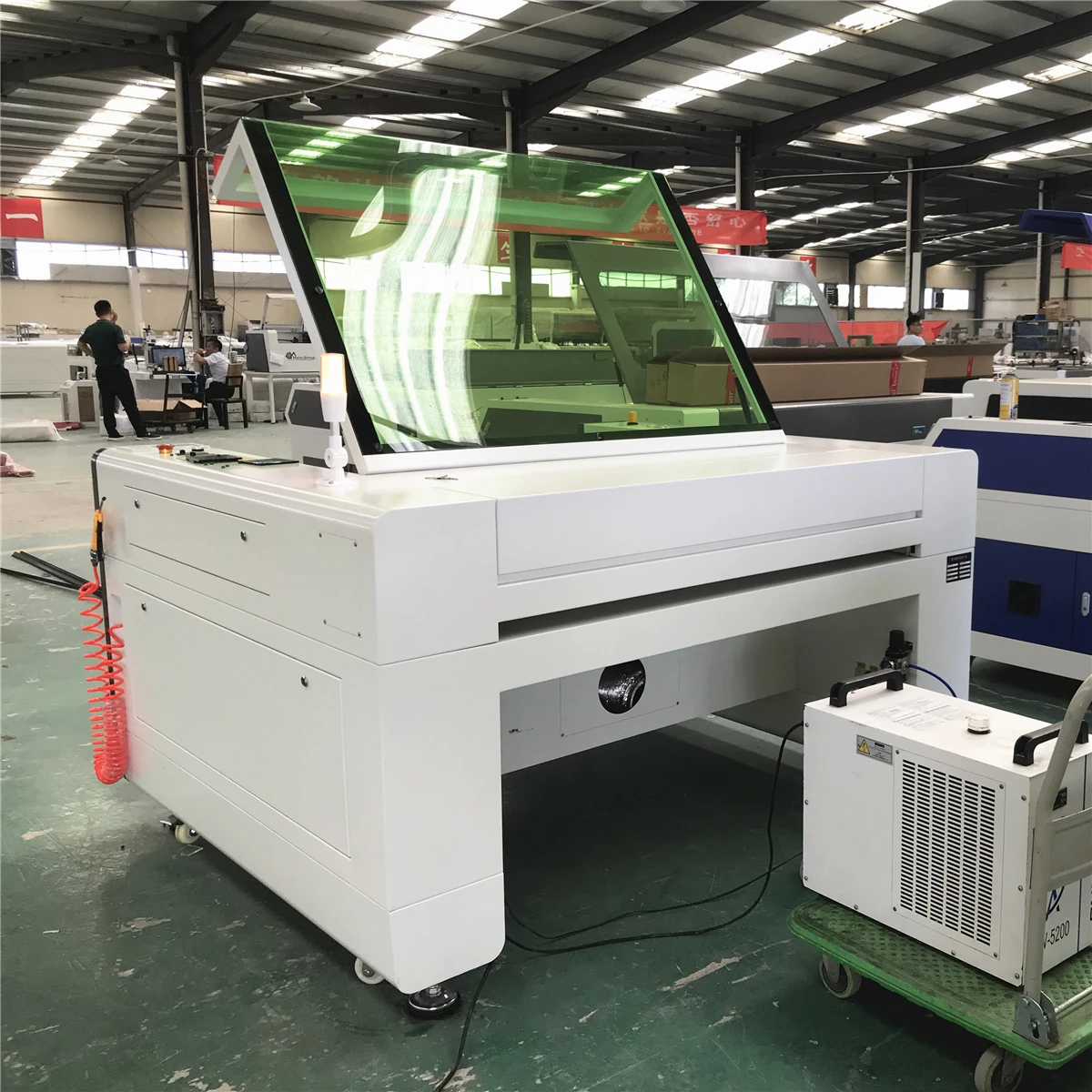

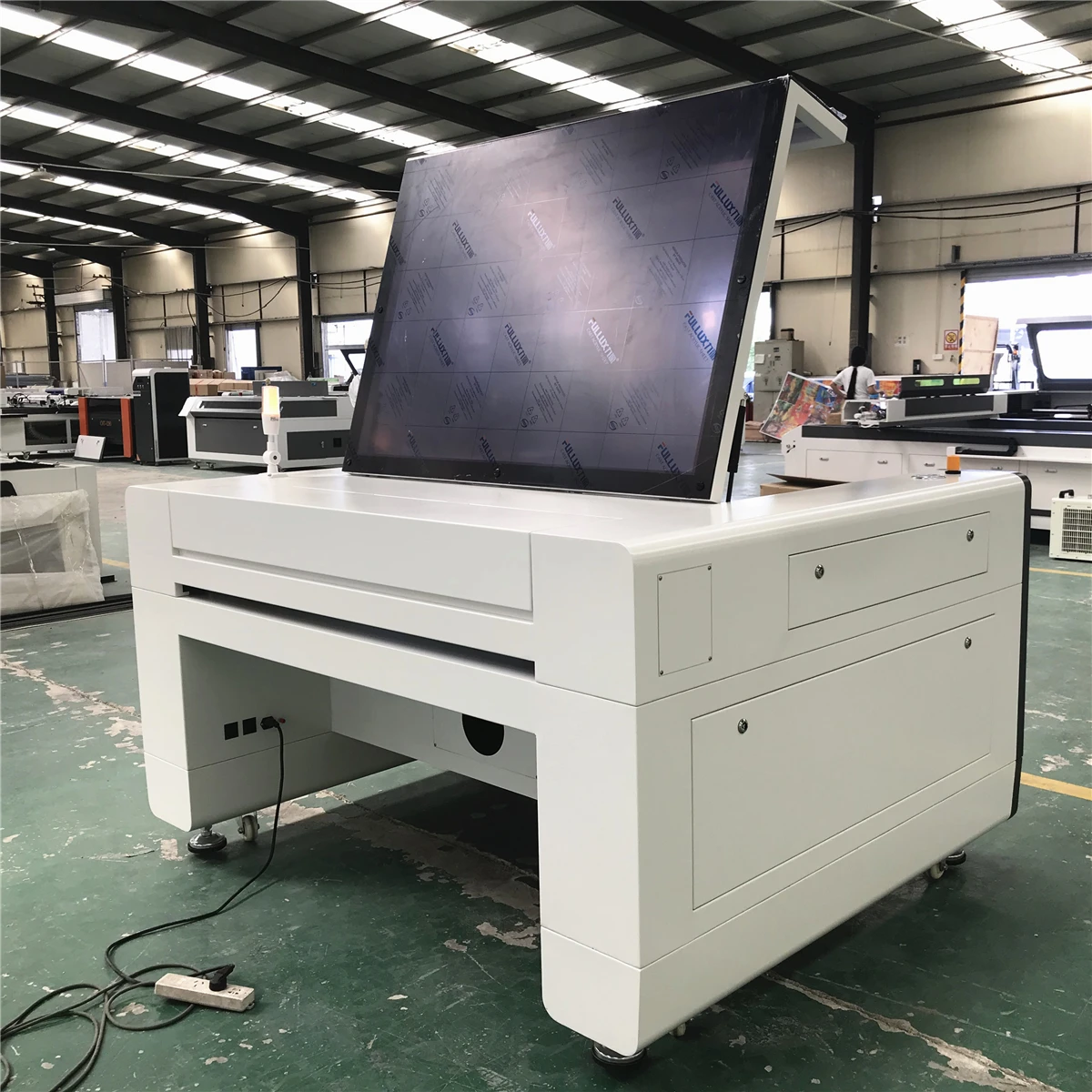

3.Fireproof window,more security.

4.CO2 Glass sealed laser tube China famous brand (EFR, Reci, WG), good beam mode stability, service timeover 8500~10000 working hours.

5. Laser Power40W~180W, good quality and stable output to prolong the laser tube service time.

6.Singapore imported lens and mirrors. High transmittance, good focusing, reflecting effect.

7.Ruida or Leetro ControllerUSB interface, support online/offline working, English language system, adjustable cutting speed and power.

8. High accuracy stepper motors and drivers. Belt transmission.

9. TiwanHiwin Linear square guide rails, higher precision.

10. Laser engraving and cutting or Lasercut 8.0 software, user’s manual.

11. Tool box: A set of wrenches, lens cleaning paper, a pack of screws, a spare limit switch, a lens removaltool, manual, CD, U disk, a focal length of stick.

12.Open style, the front and back of the machine is open which is possible for longer material, breakthroughthe limit of the workpiece length.

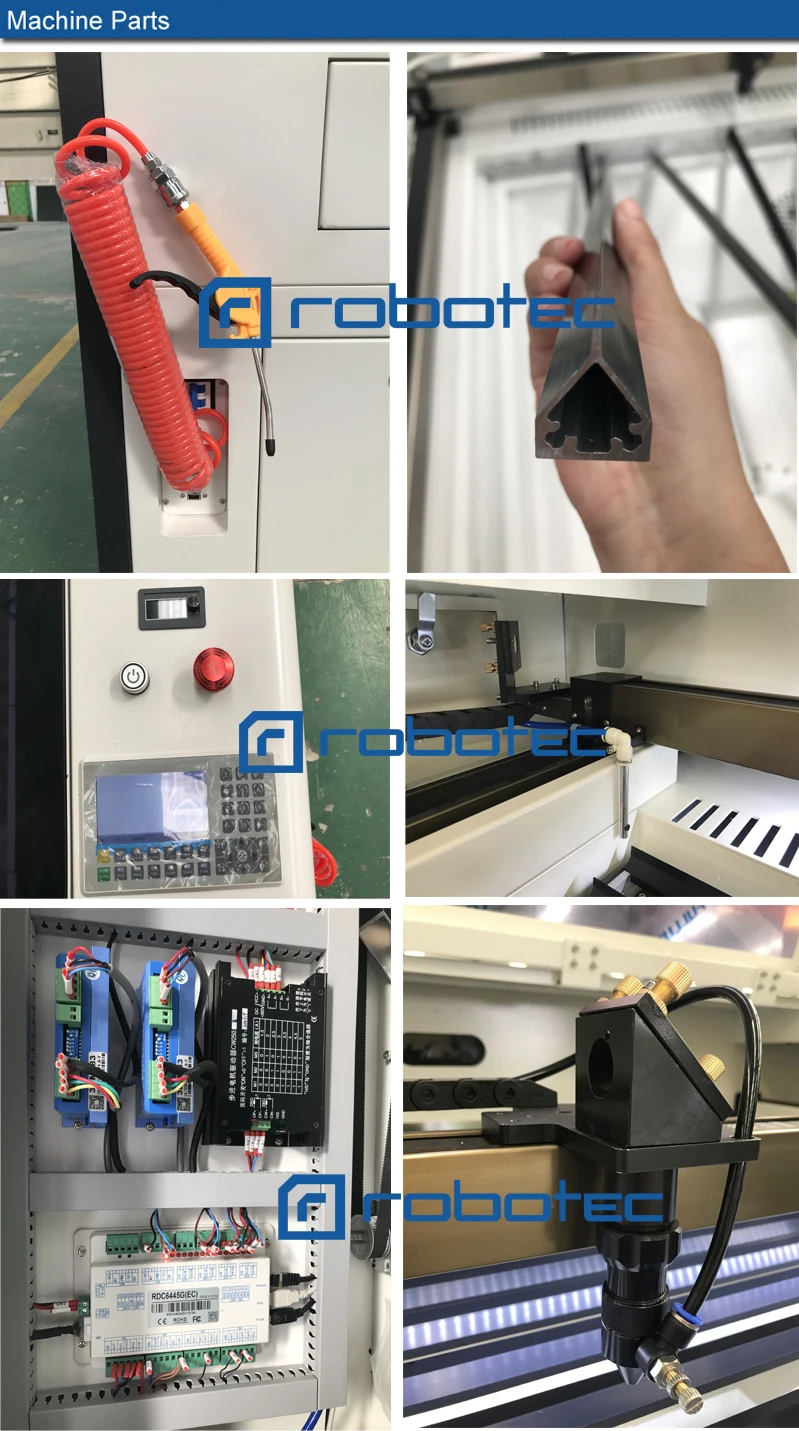

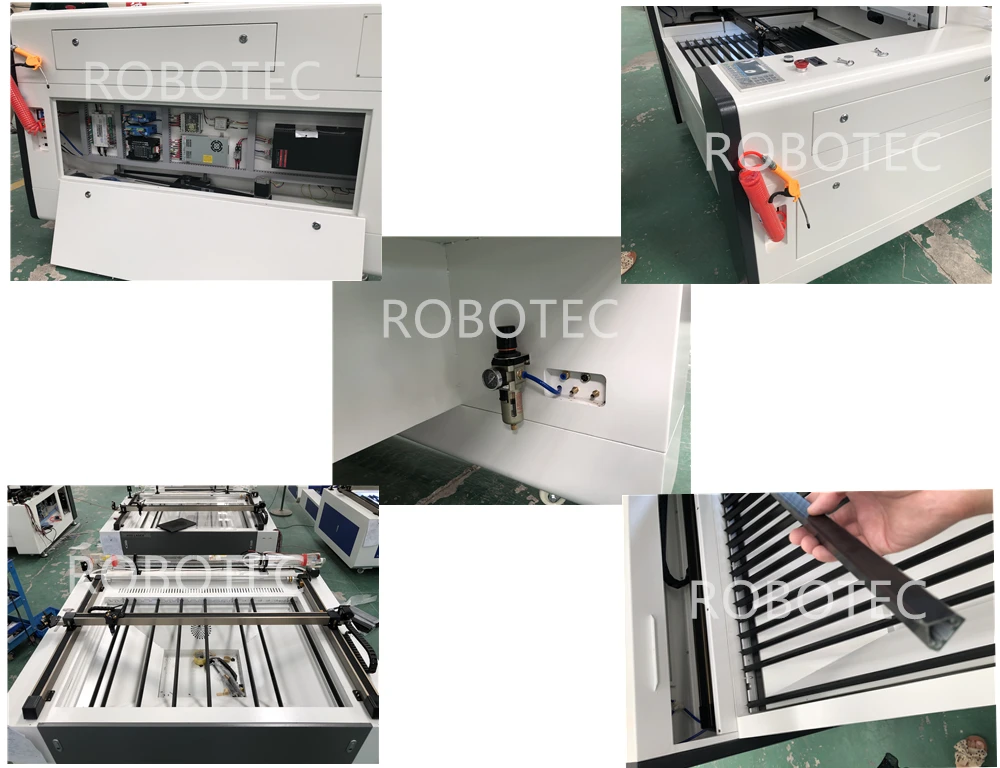

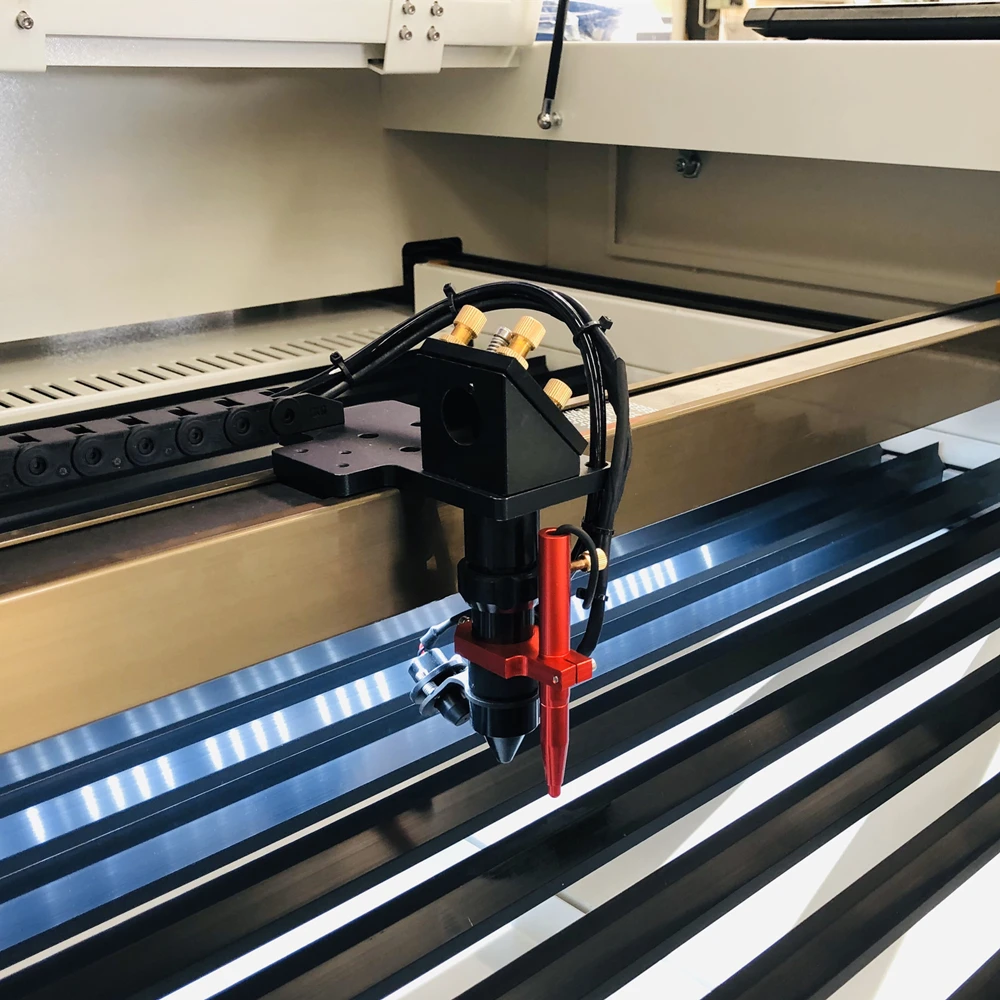

>> Laser cutting machine parts:

>>Laser Cutting Engraving Machine Option Parts:

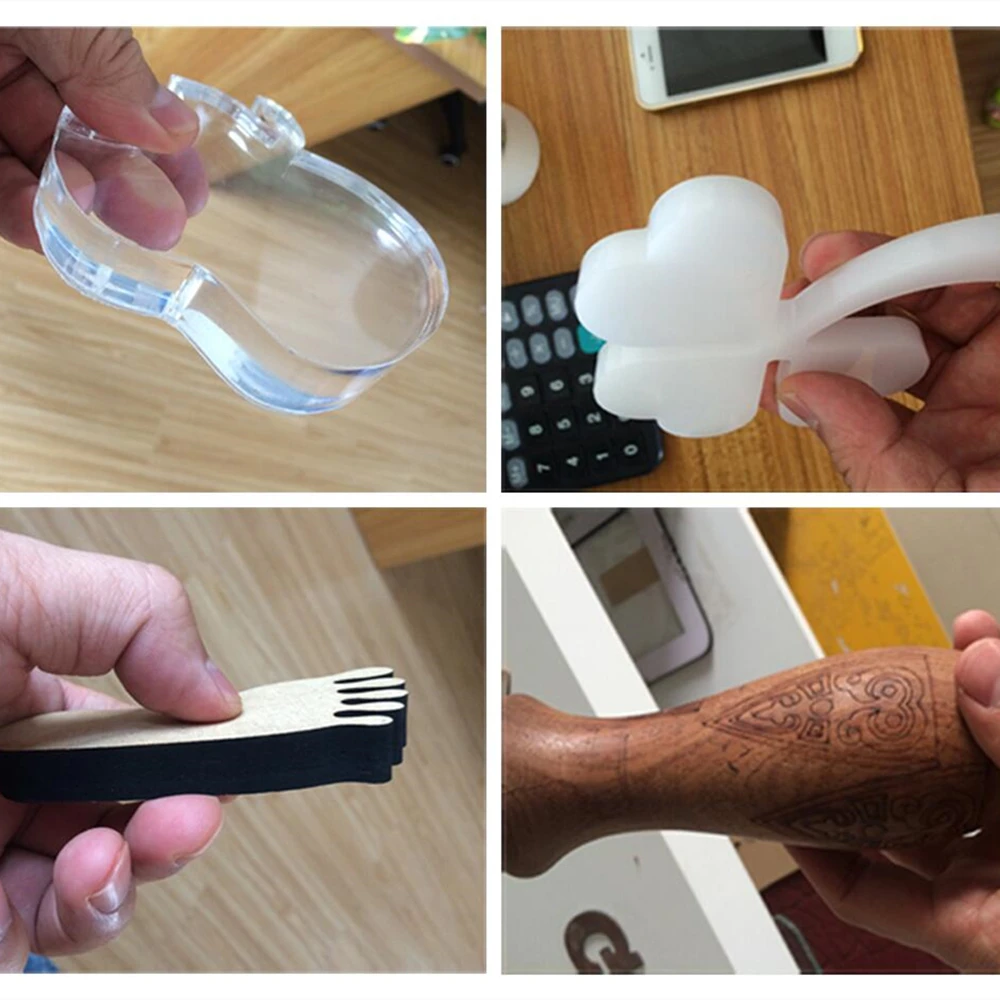

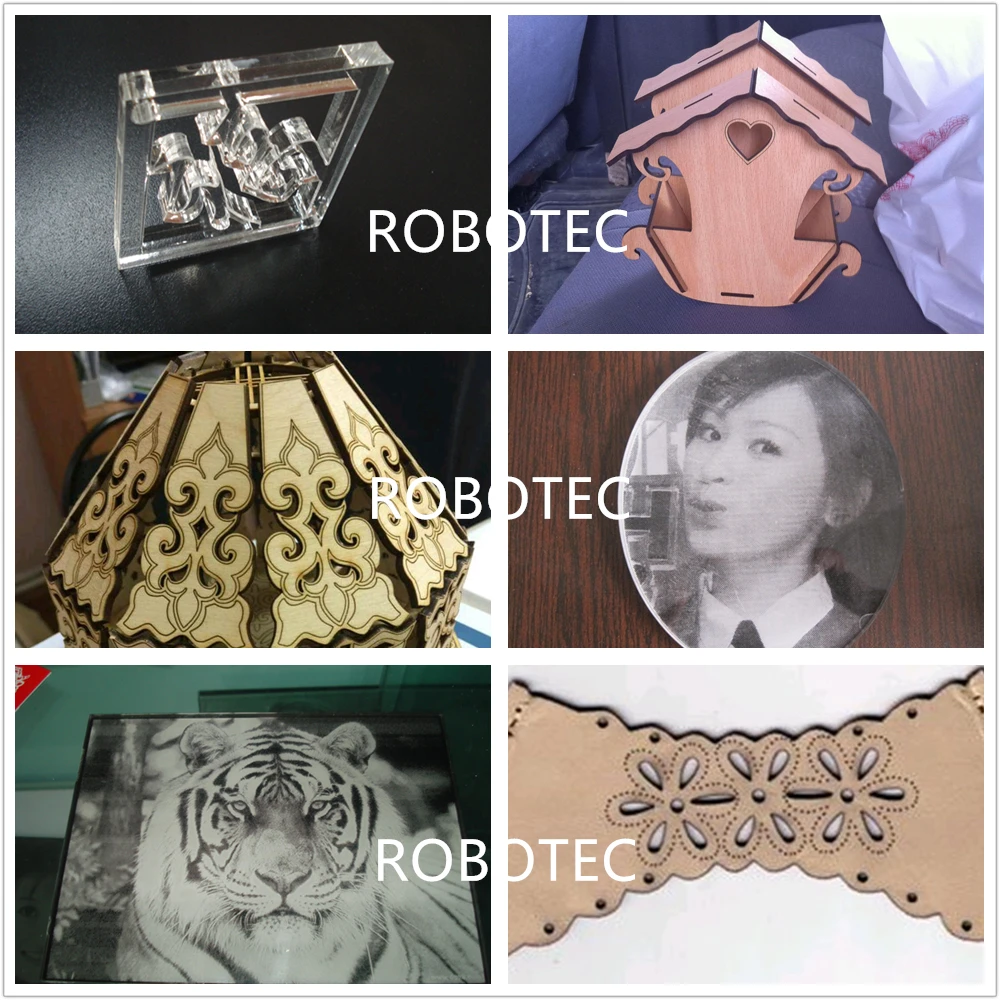

>>Laser Cutting Engraving Machine Applicable Material:

Non-metal materials such as fabrics, label, rubber, marble, granite, tiles, paper boards, leather,

embroidery, acrylic, glass, plastic, MDF, wooden plates and paper ware etc.>>Laser Cutting Engraving Machine Applicable Industry:

Advertising, Embroidery, garments, shoemaking, label processing, arts and crafts, etc.

1) Machine has been adjusted before delivery.2) English software, user manual and detailed installation & training Videos DVD3) Warranty period: one year on parts from date of shipping date, 3 additional years on free repair. Life-time technical support.4) Machine spare parts and repair service is offered in lifetime.5) Free training is offered in the plant and free samples are available.6) 24 hours technical support by e-mail, calling or door-to-door service.7) Professional cnc router machine supplier with 10 years experiences.8) International quality certificate: CE, ISO9001

For offer the most suitable machine with favorable price, would you confirm below questions:1) What is your reuqested max working area, X:___mm, Y:___mm?2) What mainly job you do ? Only engrave, cut or both ?3) What kind are your materials, metal or non-metal, what are they?
