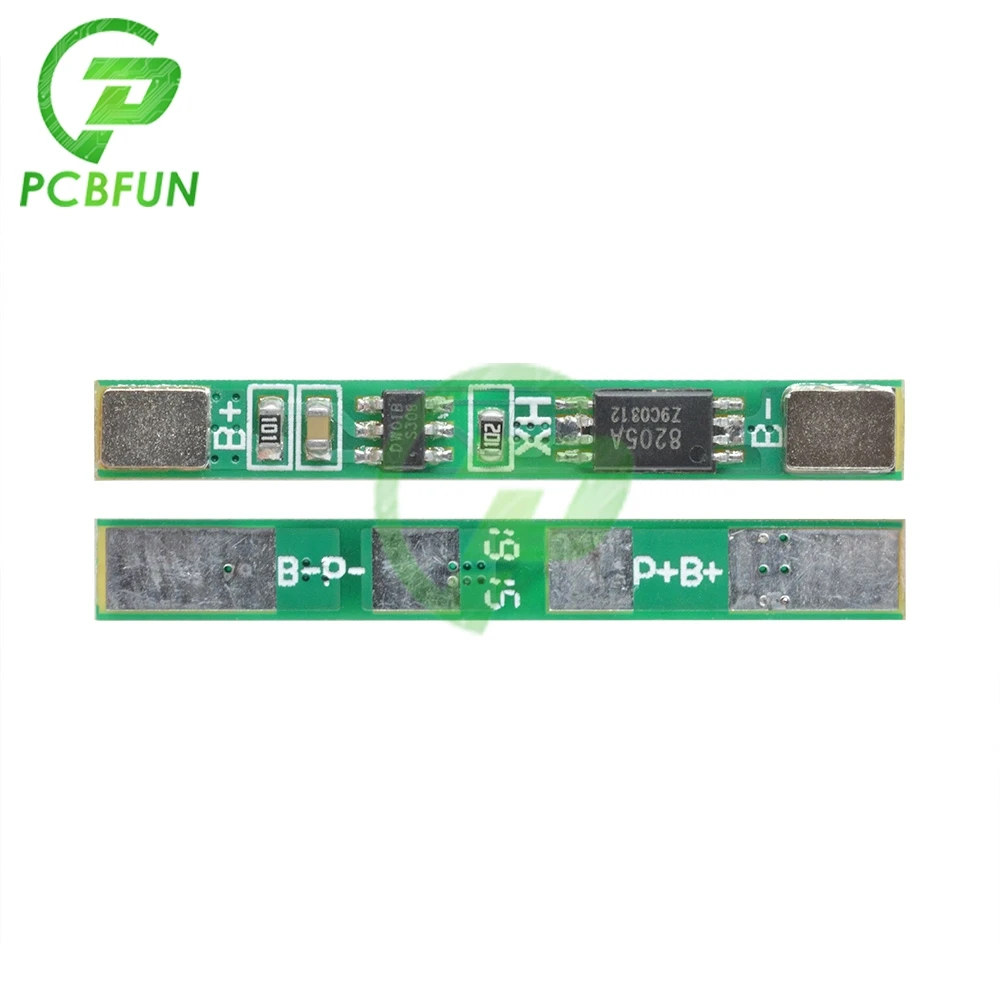

 1S 3.7V 2.5A

Product Introduction:

1.Charing Voltage:DC 4.2--5V CC/CV 2.Single Battery Consumption Current:<=6uA continuous discharging current 2.7A 3.Overcharging Detection Voltage:4.2 V+/-0.025V 4.Overcharging Detection Delay Time:150-500 ms 5.Overcharging Restore Voltage:4.0V+/-0.025V 6.Overdischarging Detection Voltage:2.75V+/-0.1V 7.Overdischarging Detection Delay Time:50-150ms 8.Overdischarging Restore Voltage:2.9V+/-0.10V 9.Overcurrent Detection Voltage:150+/-30mv 10.Overcurrent Detection Current:4.5+/-0.5A 11.Overcurrent Detection Delay Time:5ms-15ms 12.Overcurrent Restore Type:automatic restore 13.Short Circuit Detection State:external short circuit 14.Short Circuit Detection Delay Time:<=50us 15.Short Circuit Restore State:automatic restore 16.Internal Resistance:MOSPET <= 40m ohm 17.Operating Temperature Range:-40 - +50 Celsius 18.Storage Temperature Range:-40 - +90 Celsius 19.Size:28*3.8*1.2mm

Features:

1.Connecting Charger Teminal adopts withstand high voltage instrument 2.Internal 3 phase overcurrent detectiton circuit (overcurrent 1,overcurrent 2,load short circuit) 3.MOS tube can control battery charging and discharging 4.Wide Operating Temperature Range 5.Low Consumption Current Soldering Point Introduction: 1.B+:connect with power positive 2.B-:connect with power negative 3.P+:connect with charging/discharging port positive(charging port/discharging port common used) 4.P-:connect with charging/discharging port negative(charging port/discharging port common used)

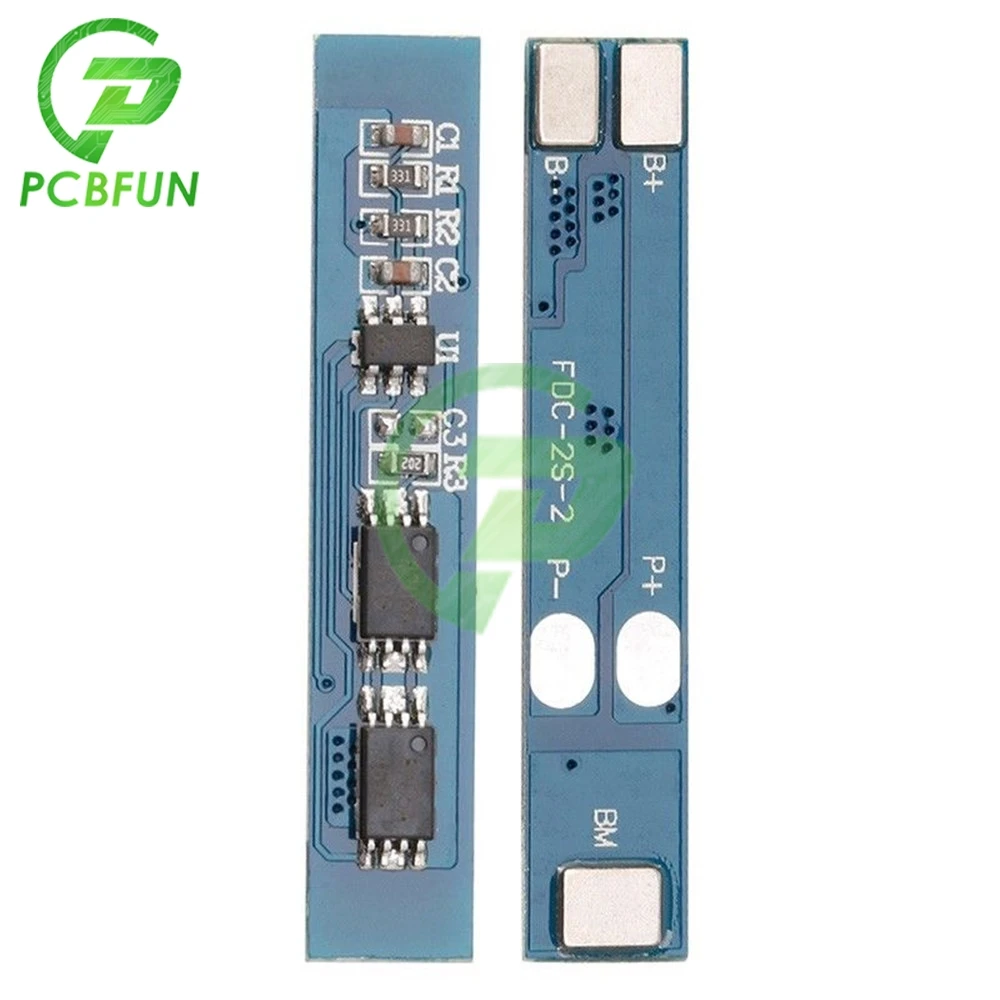

2S 7.4V 3A

Description:

Short circuit protection Overcharge protection Over-discharge protection Overcurrent protection Overcharge Detection Voltage: 4.25-4.35V±0.05V Over Discharge Detection Voltage: 2.3-3.0V±0.05V Maximum Working Current: 3A Transient Current: 5A Operating Temperature: -40-50 degree Internal Resistance: Less than 45m Ω B+ B-: The interface of battery core P+ P-: The connector of battery board MB: The connection point between the batteries B+: Battery V+ Positive B-: Battery V- Negative P+: Output / Charging V+ P-: Output / Charging V- Size: Approx. 36x6x1mm/ 1.42" x 0.24" x 0.04"

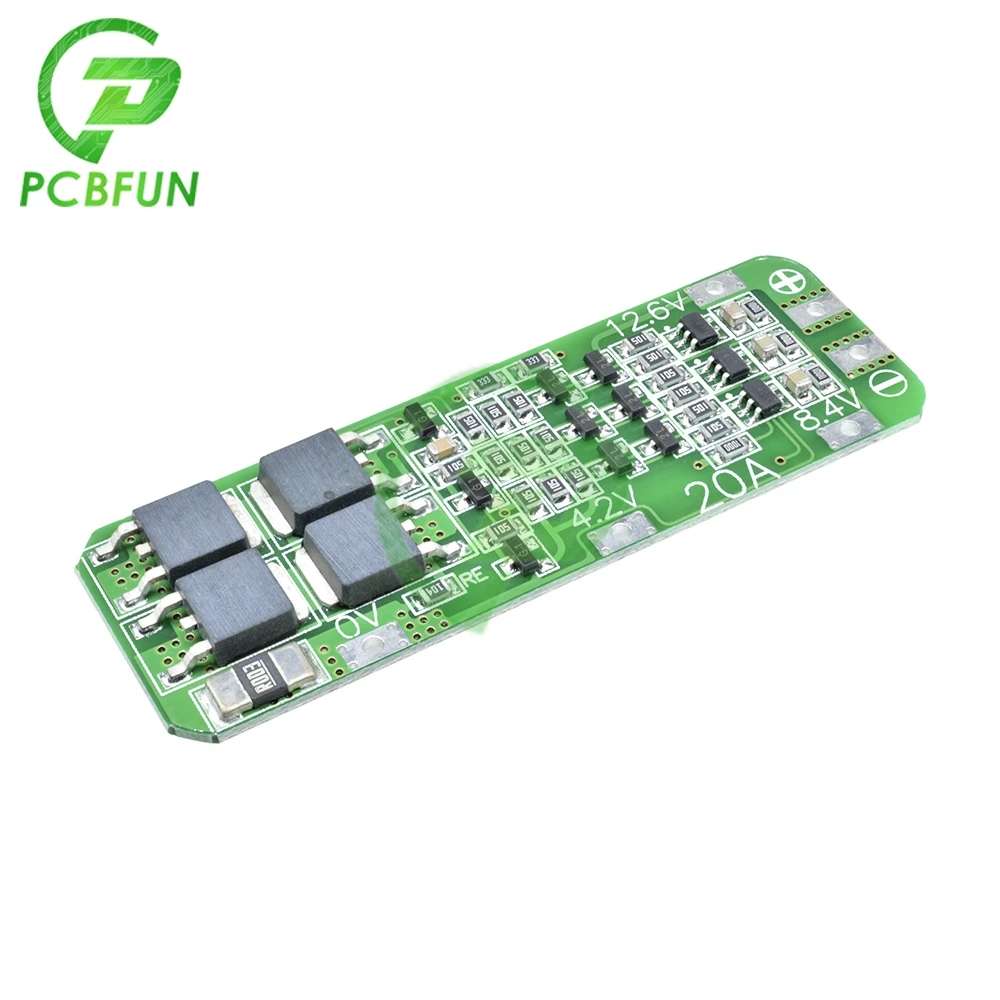

3S 12.6V 20A

Features:

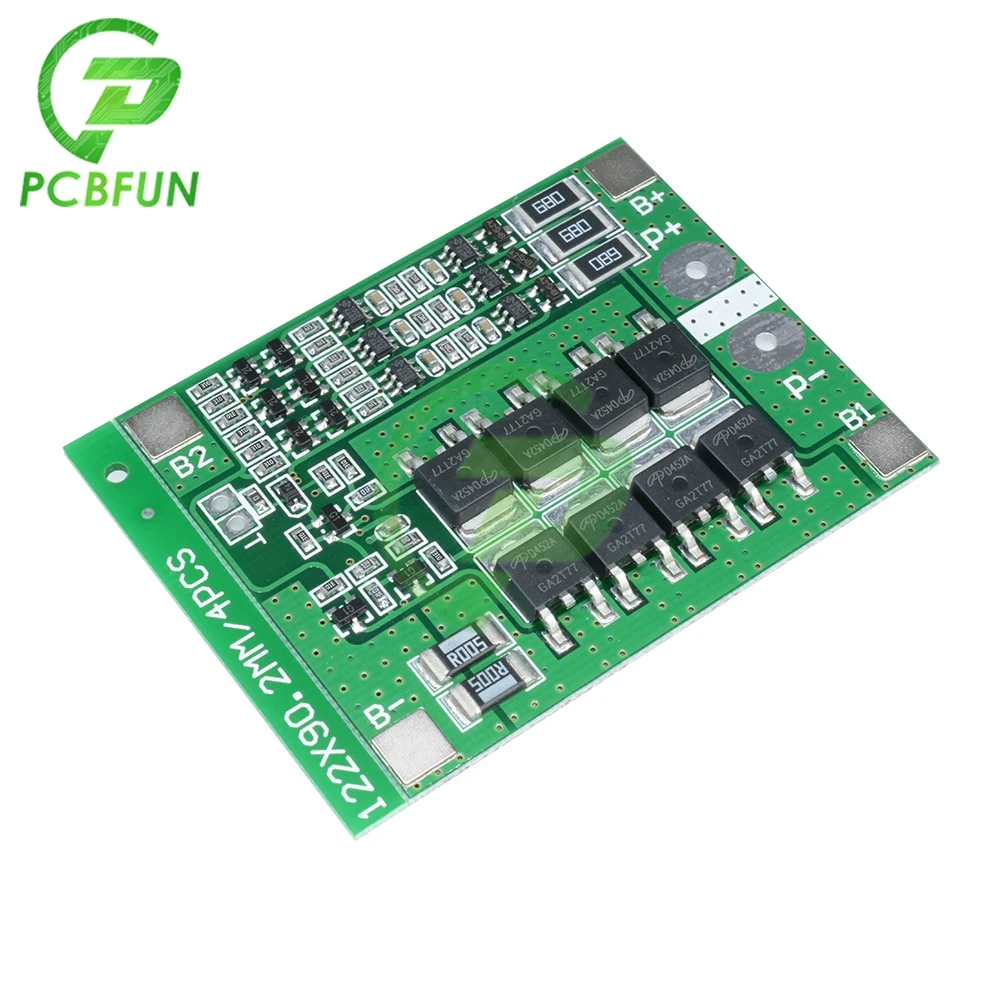

 Module name: 3S 12.6V Li-ion Lithium Battery 18650 Charger Protection PCB Board Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries) Product Size: 64mmx20mmx3.4mm Material:Metal Charging voltage: 12.6V Maximum output current: 20A Maximum output power / charging power: 252W

Precautions:

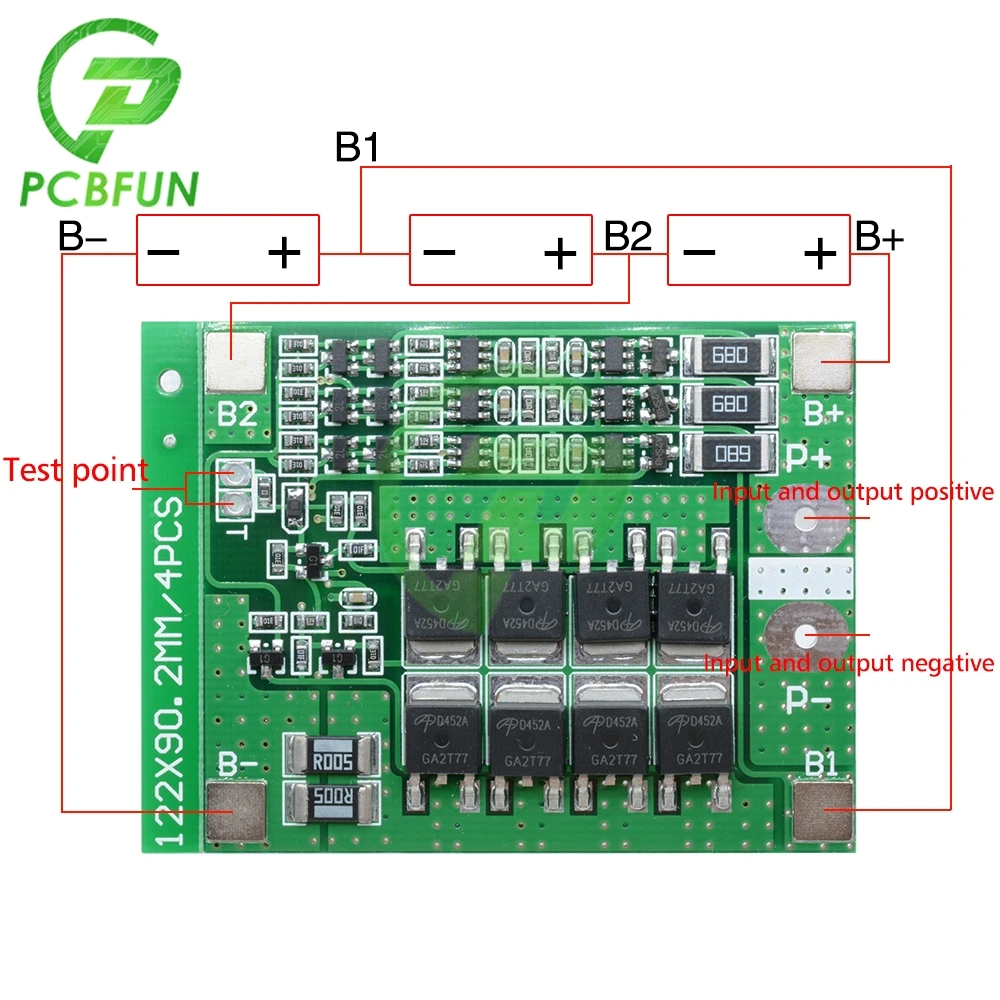

1.Strictly according to the diagram wiring  0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip. 2.After connection,it need to first charge activation, then will have the output. Attention: Do not mix the good battery and poor battery to use. The internal resistance of 3 battery capacity are closer will be better. Please buyers know the professional knowledge of this module before buying

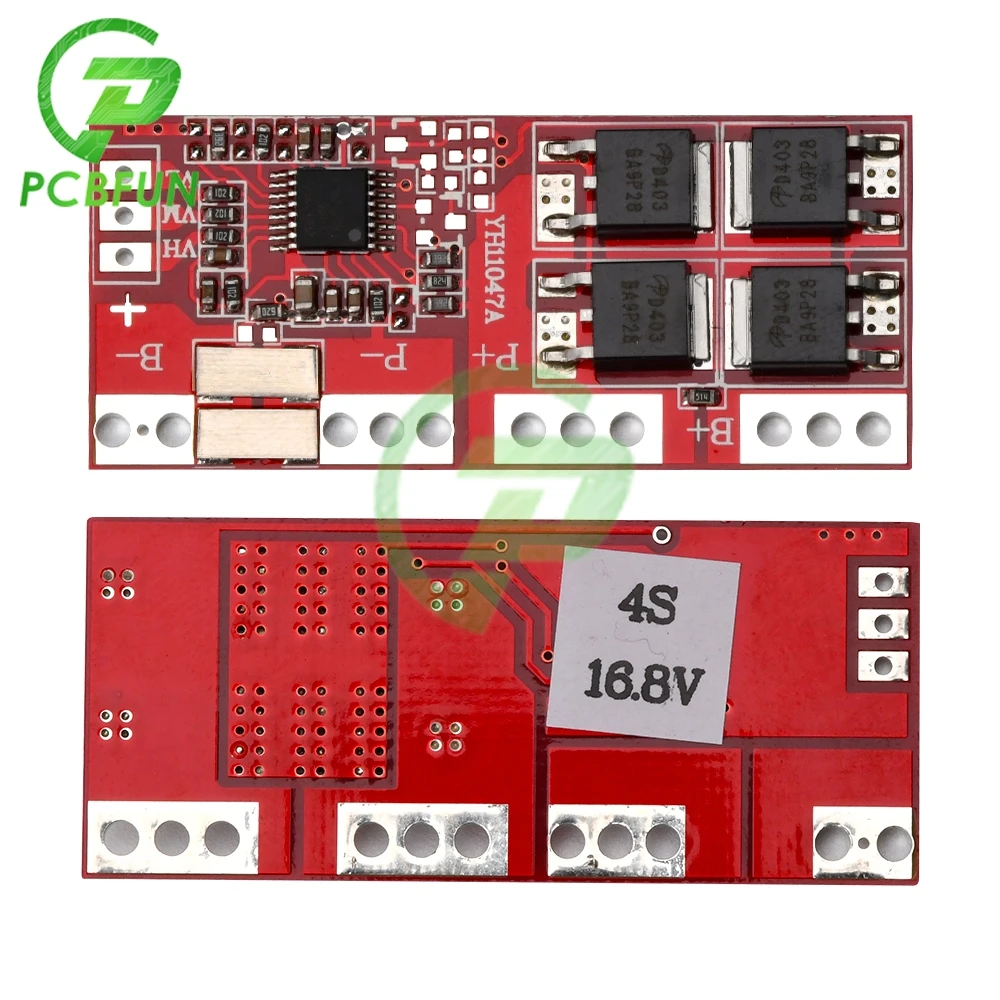

4S 30A 16.8V

Module:4S Li-ion Lithium Battery Protection Board overcharge detection voltage :4.25±0.025V overcharge Lift the voltage:4.15±0.05V over discharge detection voltage :2.50±0.08Vover discharge Lift the voltage:3.00±0.1V overcurrent current:20-30A working current:15A(Natural cooling 10.A, add heat sink 15A, the maximum instantaneous current 30A Remove protection condition automatic recovery, without activation Protections: Short circuit protection Overcharge protection Over-discharge protection Overcurrent protection operating temperature:-40-85 Size:50*22*4mm

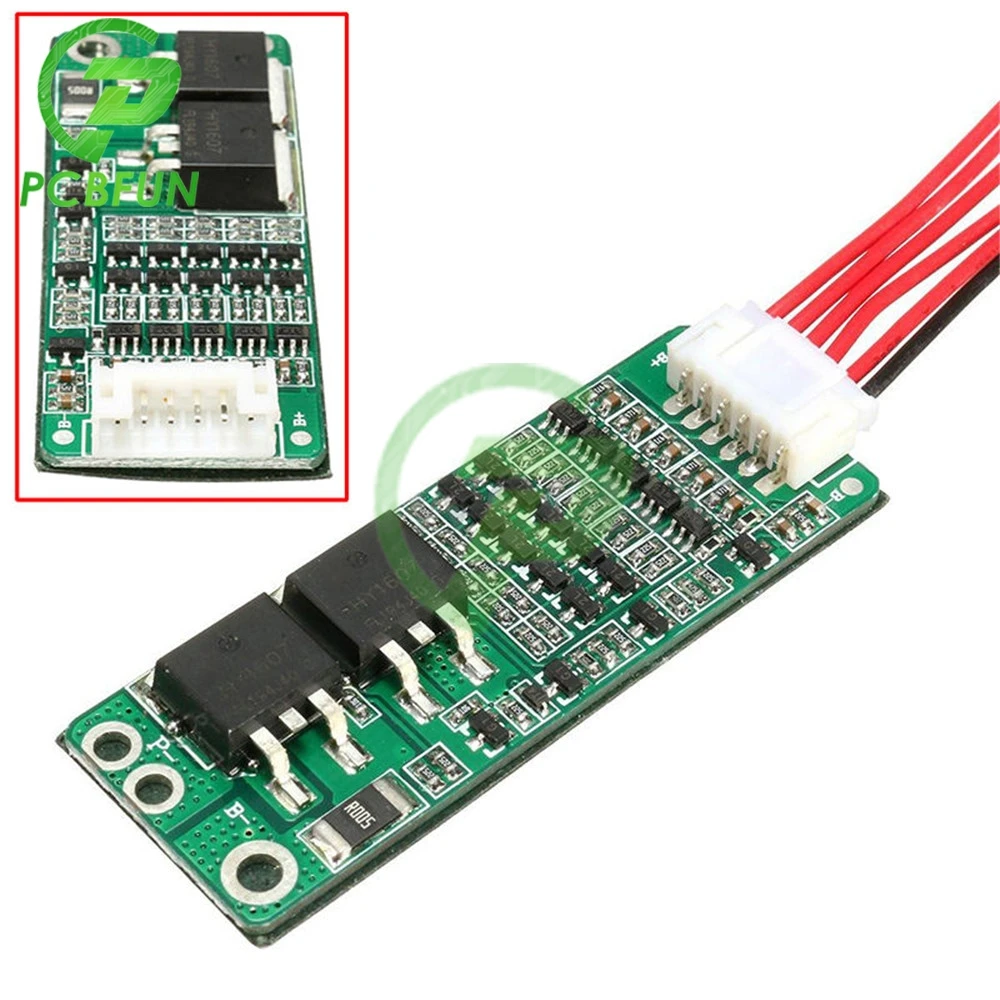

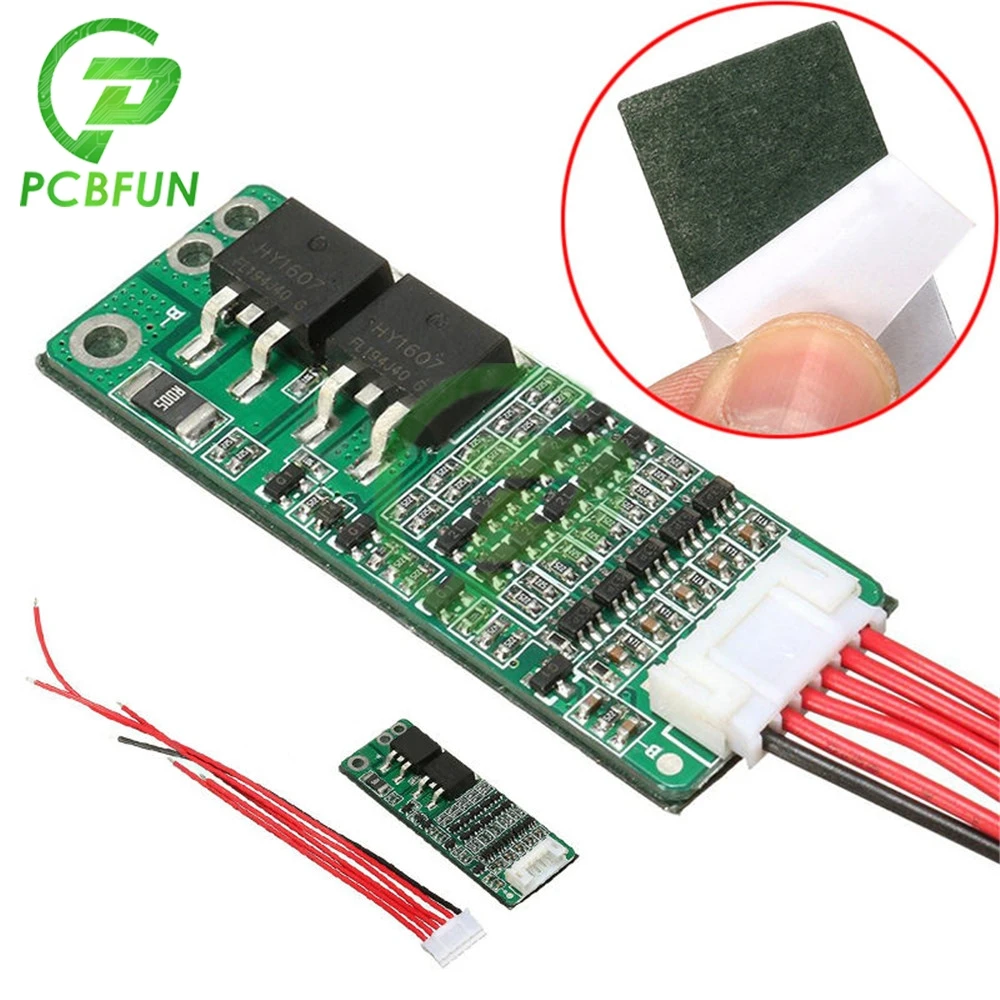

5S 15A

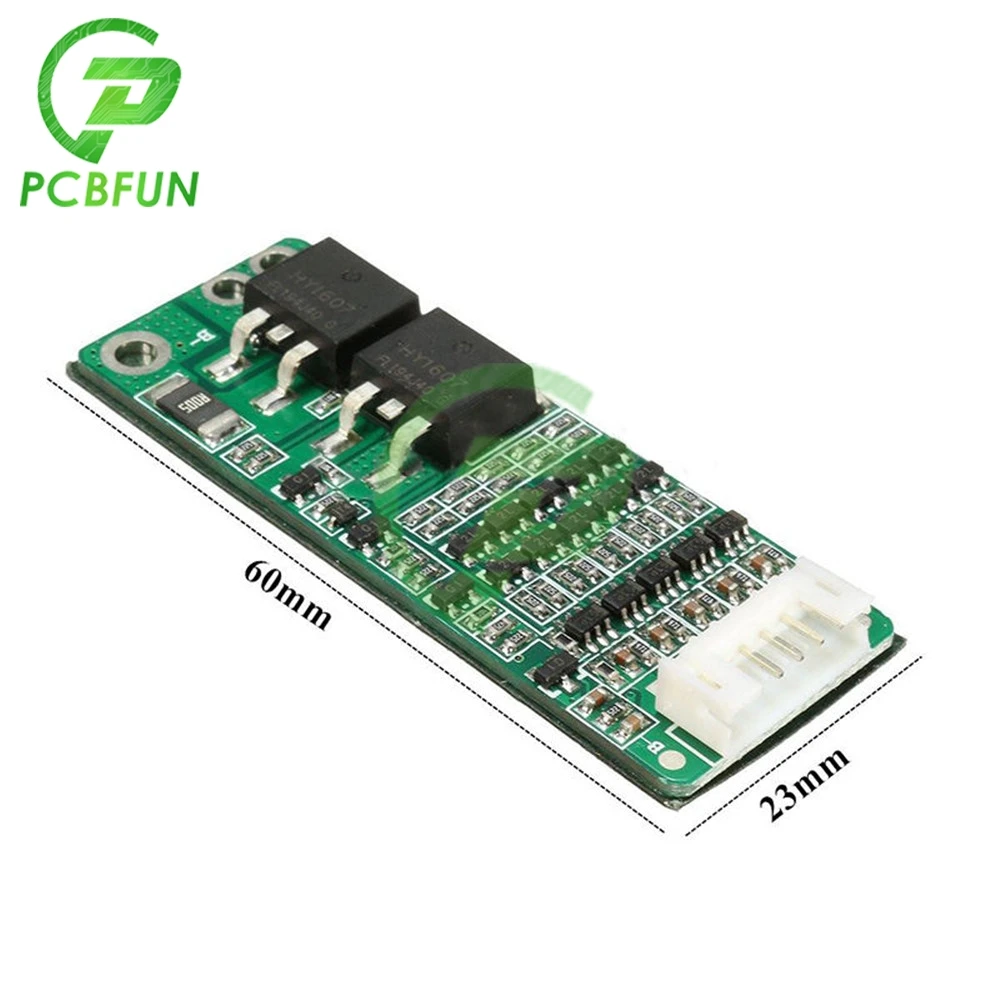

Specification: Brand new Name: protection board Size: approx. 60*23mm Color: as picture shows Charging voltage: 21 V Charge MOS pressure value: 35 V Discharge MOS pressure value: 35 V Charging current: 56 A Continuous discharge current: 15 A Over current protection: 50/55/60 A Over current protection delay: 20/25/30mS Single section since the power consumption: 30uA Single section between the power consumption: 3uA Single section over charge detection voltage: 4.18- /4.22V Over charge recovery voltage 4.05- 4.15 V Over charge detection delay: 0.5/1.0/2.0S Single section over discharge detection voltage: 2.75-2.85 V Over discharge recovery voltage: 2.90-3.20 V Over discharge detection delay: 0.5-2.0S Short / over / over current protection recovery short circuit / over discharge / over current protection after removal of load auto recovery Short circuit protection delay 200/500/600uS The normal working state of B- to P- resistance: 5mΩ Continuous 15A current maximum temperature rise: 25 ℃ Working environment (humidity) relative humidity: ≥98% (long-term stability under the humidity) Working environment (temperature) -30 ~ 80℃(in the lower temperature range of long-term stability)

Note: Please allow 1-5mm errors due to manual measurement Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same

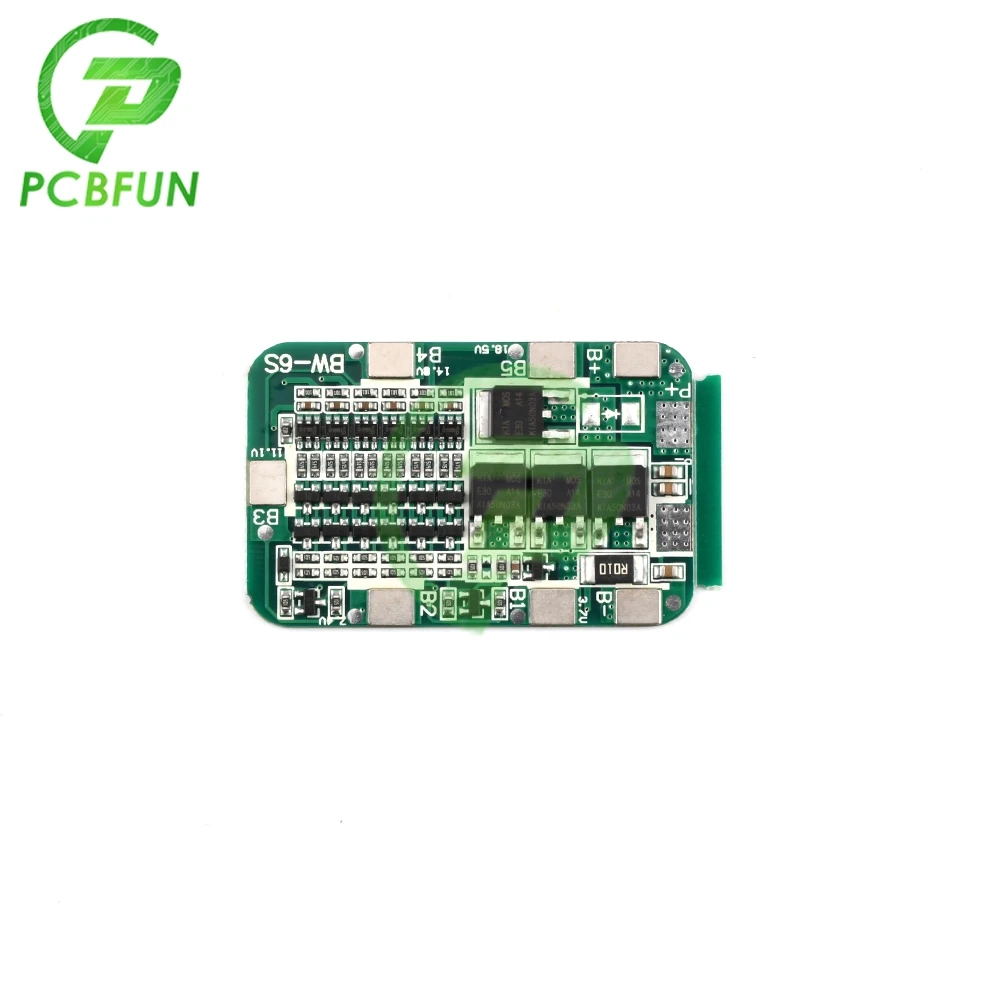

6S 15A

Specification: Brand new Size: approx.50*30*2mm Lampshift maximum discharge current: 15A Instantaneous discharge current: 25A Charging voltage: 25.5V Charging current: 15A (MAX) Overcharge detection voltage: 4.28 ± 0.05V Overcharge protection delay: 0.1S Overcharge release voltage: 4.08 ± 0.05V Over discharge detection voltage: 2.55 ± 0.08V Overdischarge detection delay: 0.1S The overdischarge release voltage: 2.9 ± 0.1V Overcurrent detection voltage: 150mV Overcurrent detection delay: 9MS Overcurrent protection current: 30 ± 3A Overcurrent protection release condition: Disconnect the load Short circuit detection delay: 250uS Short circuit protection Release condition: disconnect negative open Main circuit conduction resistance: ≤20mΩ Working current: ≤30uA Sleep current (battery over discharge) ≤10uA Temperature range: -30 / + 80 ℃ Feature: Fine workmanship and durable. For the rechargeable (generally refers to the lithium battery) from the protection of the integrated circuit board. Lithium battery (rechargeable type) so need protection. As the lithium battery itself determines the material itself can not be overcharge, over discharge, overcurrent, short circuit and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow a protective resistor with a sampling resistor and a current fuse. Note: Please allow 1-5mm errors due to manual measurement. Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.

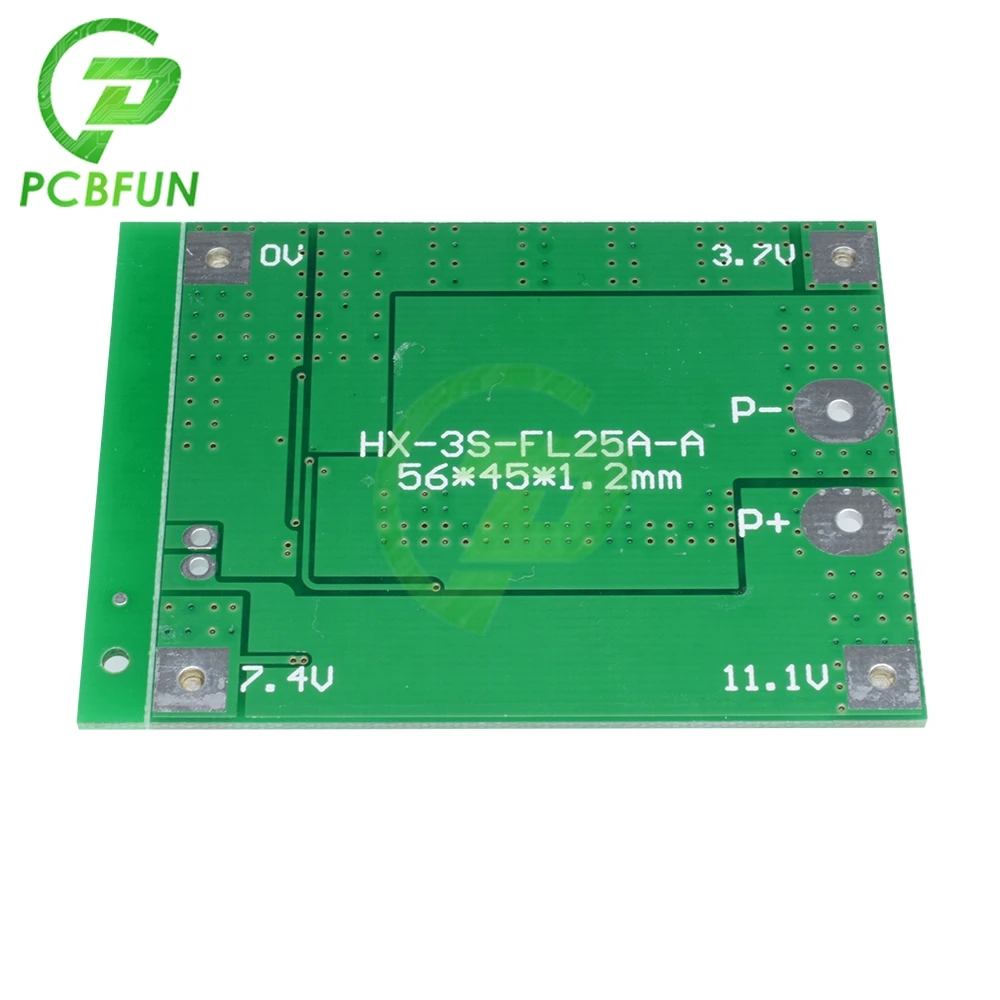

3S 25A

Brand new Size: about 56mm*45mm*1.2mm Over voltage range: 4.25-4.35v±0.05v Over discharge voltage range: 2.3-3.0v±0.05v Maximum operating current: 0-25A Maximum transient current: 34-40A Quiescent current: less than 30uA Internal resistance: less than 100mΩ Working temperature: -40---+50° Storage condition: -40-- +80° Effective life: more than30000h Short circuit protection: Yes, delayed self recovery

Precautions:

Strictly according to the diagram wiring: 0V(B-)3.7V(B1)7.4V(B2)11.1V(B+), Do not deliberately short circuit. After the line is connected, Need to charge first, then have output. When the battery is connected in series with 3 groups, Please ensure that the voltage of each battery is the same. If not same, please fill in each set of batteries and then use. Do not mix the good battery and the battery. The capacity of the battery internal resistance is closer will be better. Attention: Do not mix the good battery and poor battery to use. The internal resistance of 3 battery capacity are closer will be better. Please buyers know the professional knowledge of this module before buying Note: Due to different producing batches, product details might be a little different. If you minding the difference, please buy it carefully. Please allow 1-5mm differs due to manual measurement. Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same
