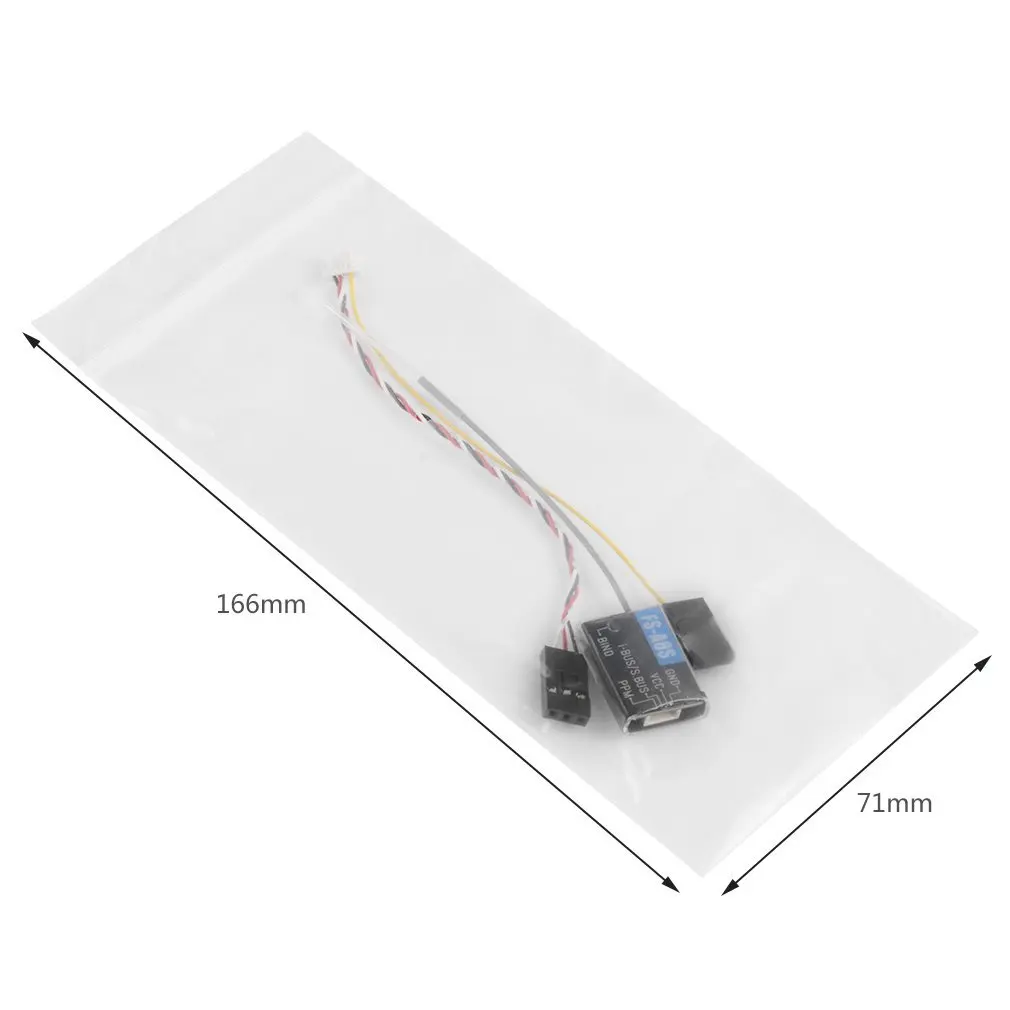

Flysky FS-A8S 2,4G 8CH мини-приемник с PPM i-BUS SBUS Выход для Квадрокоптер с дистанционным управлением ФС i4 i6 i6S i6X TM10 TM8 передатчик

Flysky FS-A8S 2.4G 8CH Mini Receiver with PPM i-BUS SBUS Output for RC Quadcopter FS i4 i6 i6S i6X TM10 TM8 Transmitter

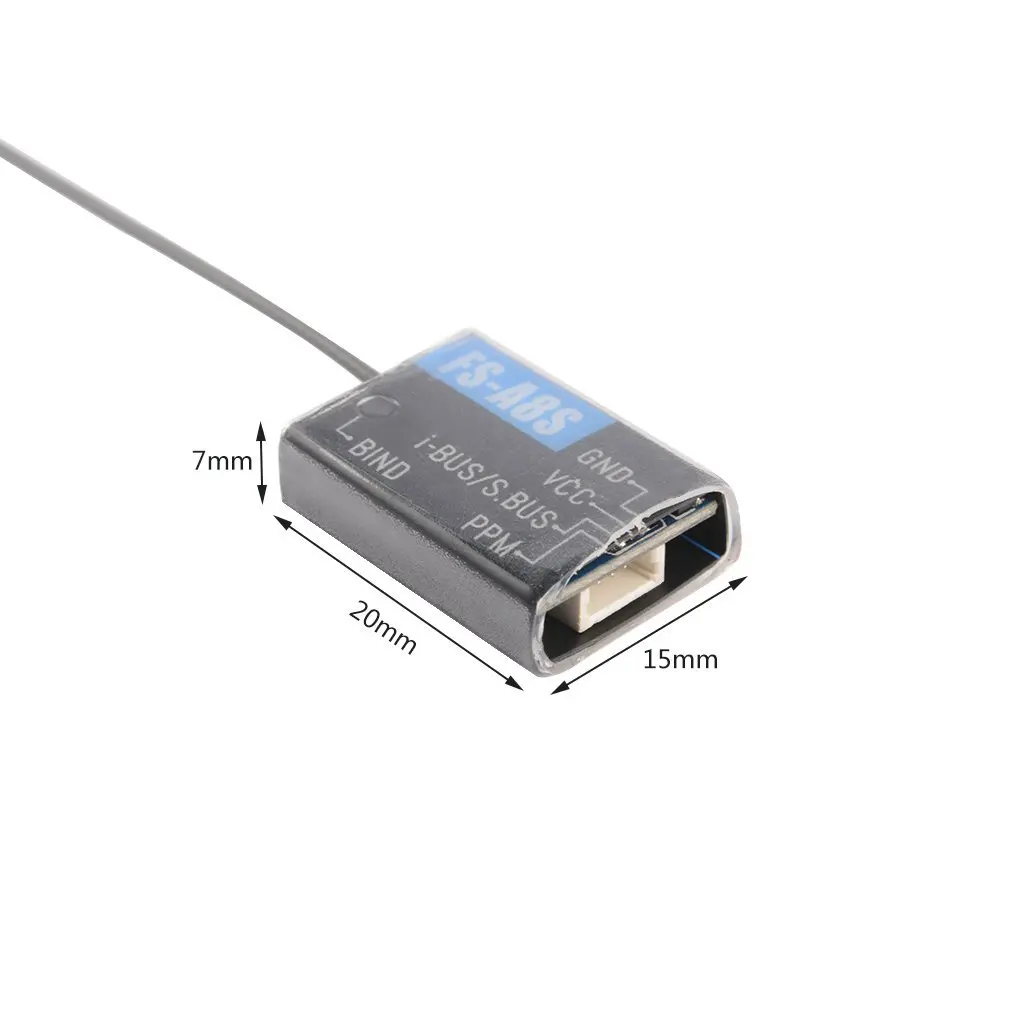

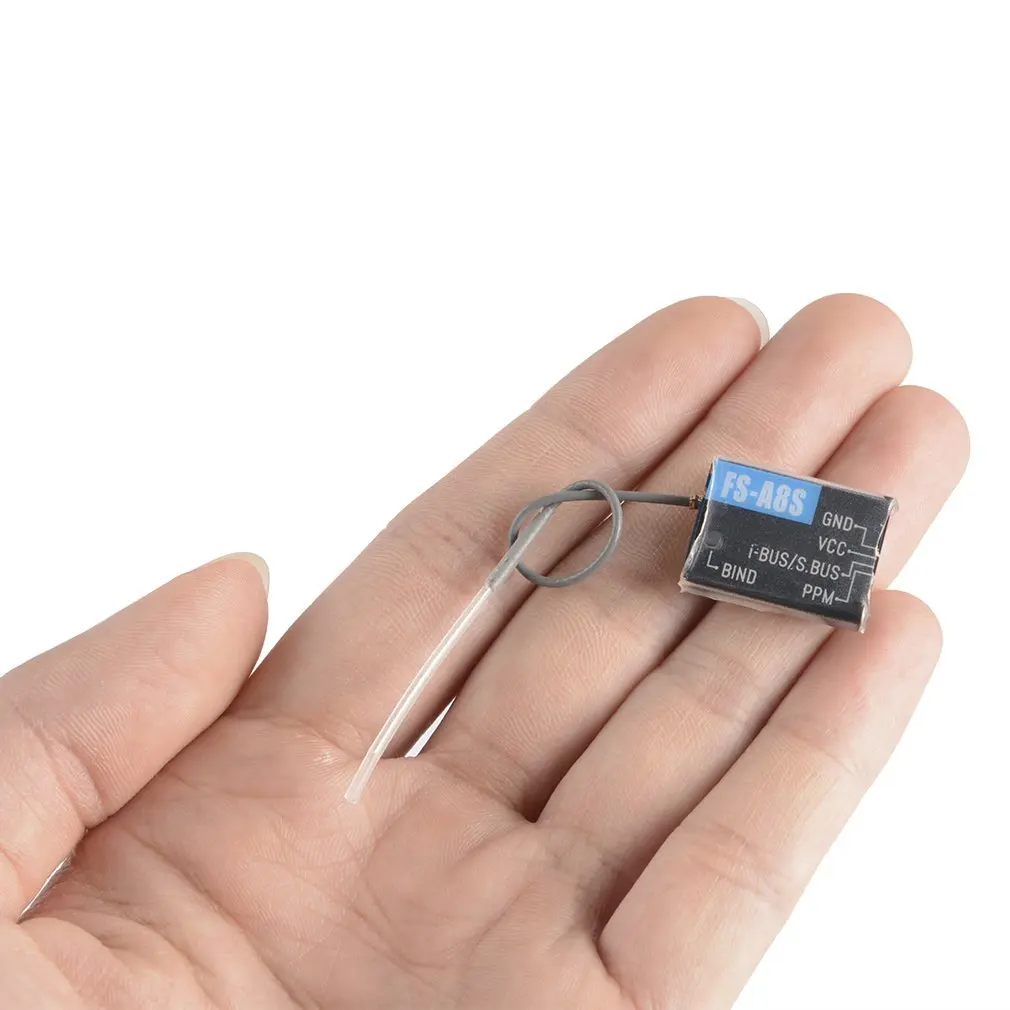

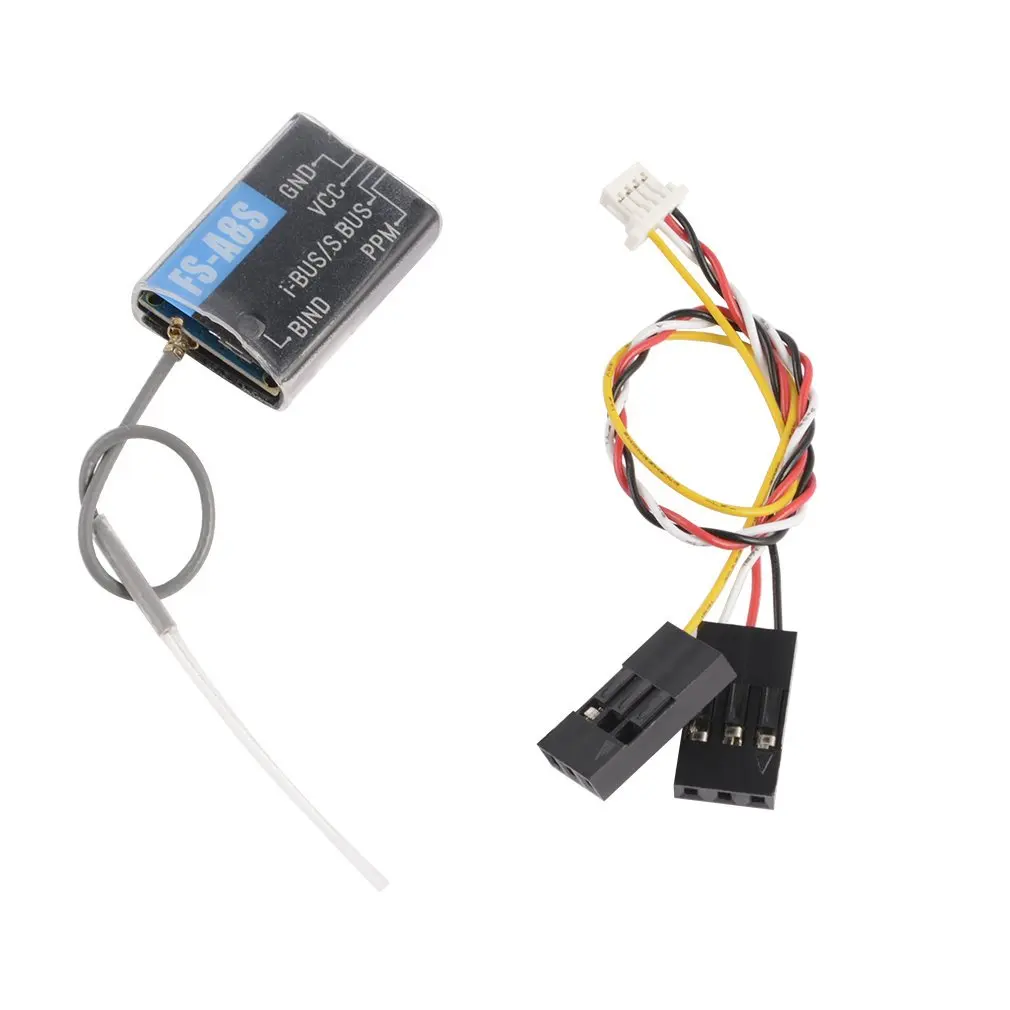

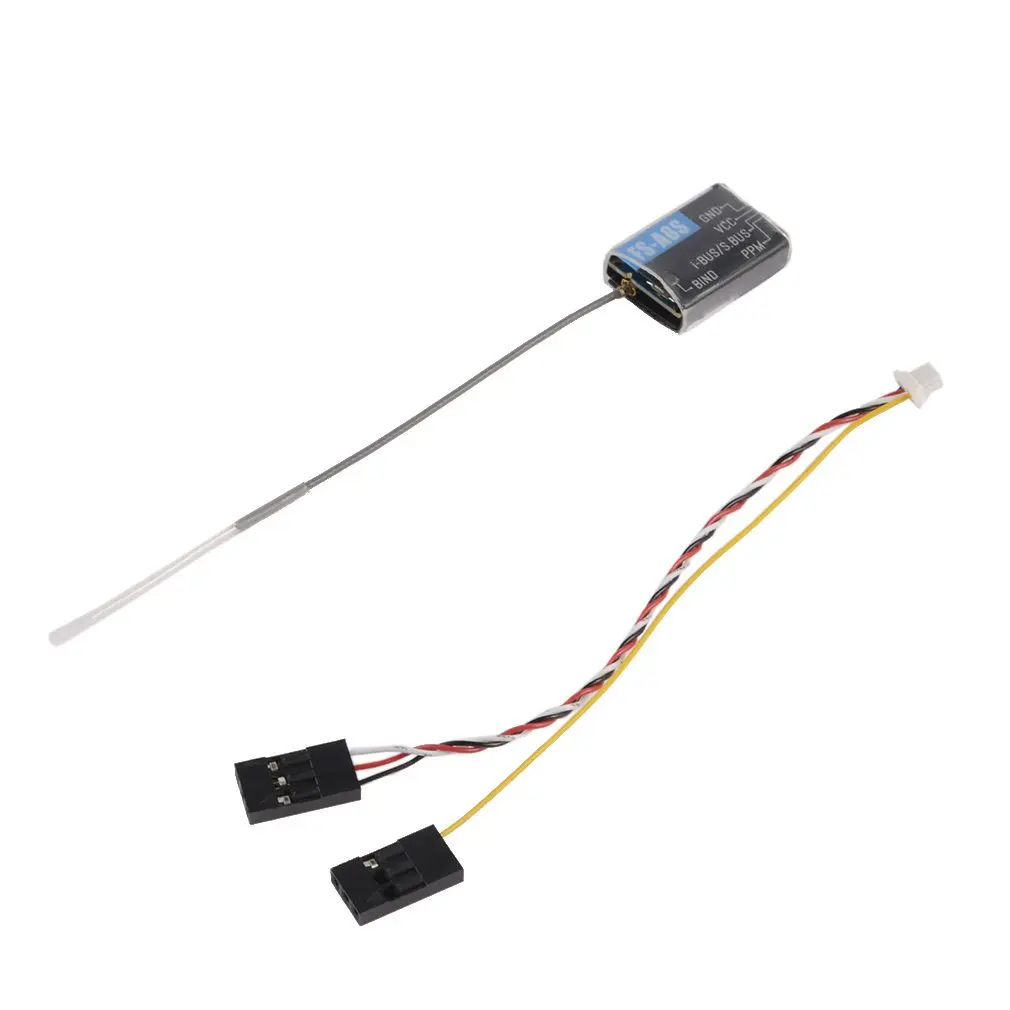

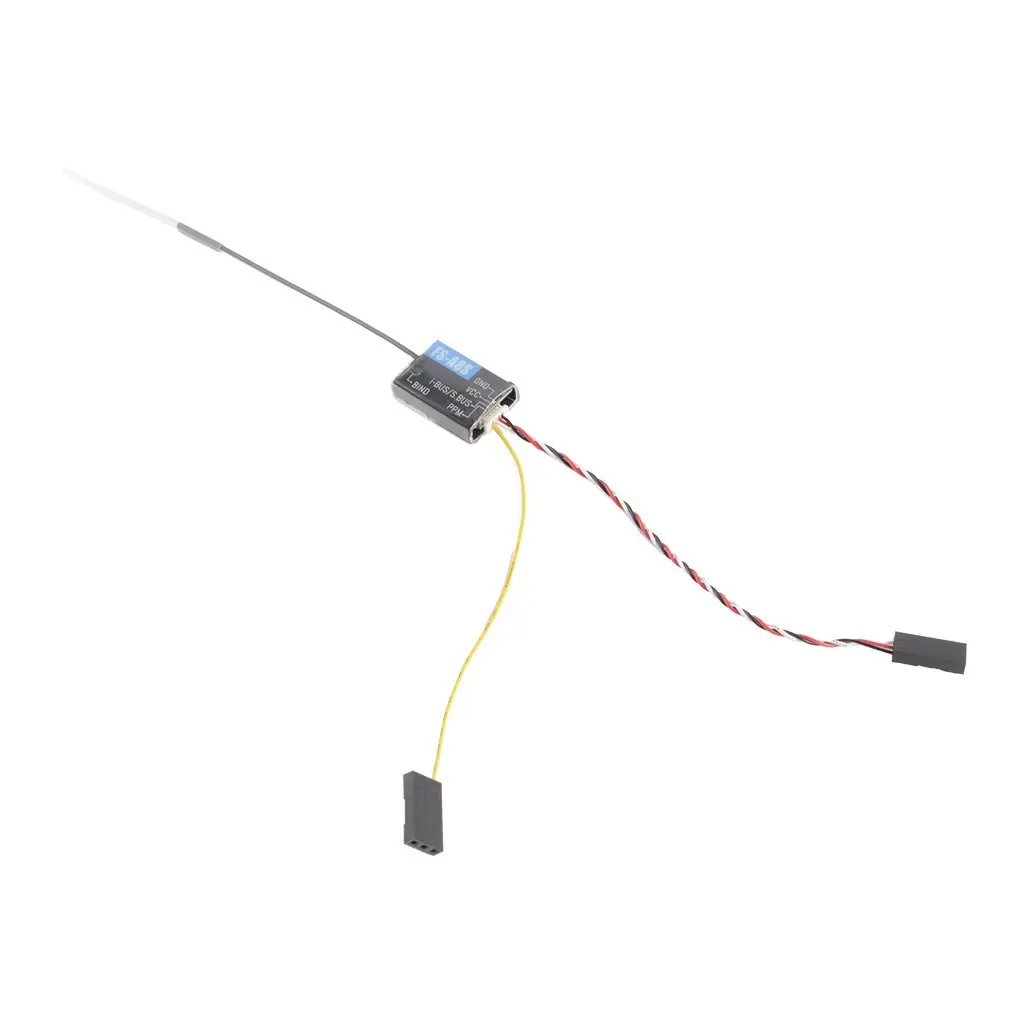

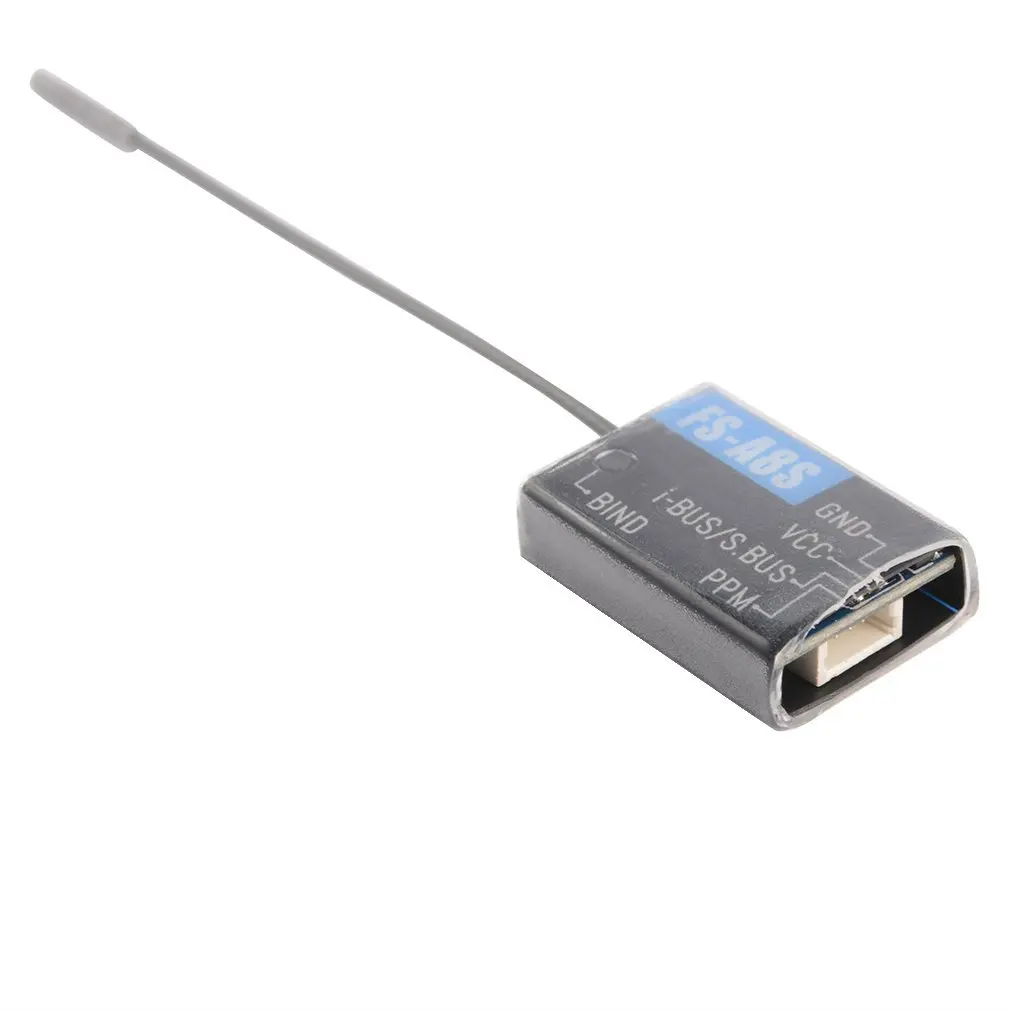

Features:Flysky A8S mini receiver uses the AFHDS 2A(Aotumatic Frequescy Hopping Digital System) protocol,supports standart PPM output and has i-BUS support for up to 18 channelsCompatible Transmitter: Compatible with FS-i4,FS-i6, FS-i6S,FS-i6X,FS-i10, FS-GT2E,FS-GT2G,FS-GT2F rc transmitterNo ground interference ( Transmitting and receiving 1 m from the ground): 300mChannels: PPM 8CH, i-BUS 18CH. DSC port: PPM/i-BUS/S.BUSMini size, light weight.Specifications:Color: BlackBrand Name:FlyskyItem Name:FS-A8S ReceiverChannels: PPM 8CH, i-BUS 18CHModel type: Multi-rotorFrequency range: 2.408-2.475GHzBand width: 500KHzBand number: 135RX Sensitivity: -92 dBm2.4GHz system: AFHDS 2AModulation type: GFSKDSC port: PPM/i-BUS/S.BUSTransfer method: FHSSData output: 1.5mm*3 Pin PPM/i-BUS/S.BUSAntenna length: 26mm (Not including brass contacts)Input power supply: 4.0-8.4VDisplay method: LEDNo ground interference ( Transmitting and receiving 1 m from the ground): andgt;300mWorking current: 40mAEach channel data: depend on the transmitterChannel delay: andlt;15mSCertificate: CE0678, FCCID: N45ZA8S00Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2FChange i-BUS/S.BUS modeWhen turned on and bound, the transmitter and receiver can change output mode to i-BUS and S.BUS modes by pressing and holding the bind button for 2 seconds.LED truns off for 1 second when flashed twice:i-bus OURPUT MODE.led flashes twice then turns off for 1 second: S.BUS output mode activeSize: 20x15x7mm/0.8x0.6x0.3 inPackage size: 166x71x8mm/6.5x2.8x0.3 inWeight: 3gPackage weight: 4gPackage includes:1x Flysky FS-A8S 2.4G 8CH Mini Receiver1x Cable
