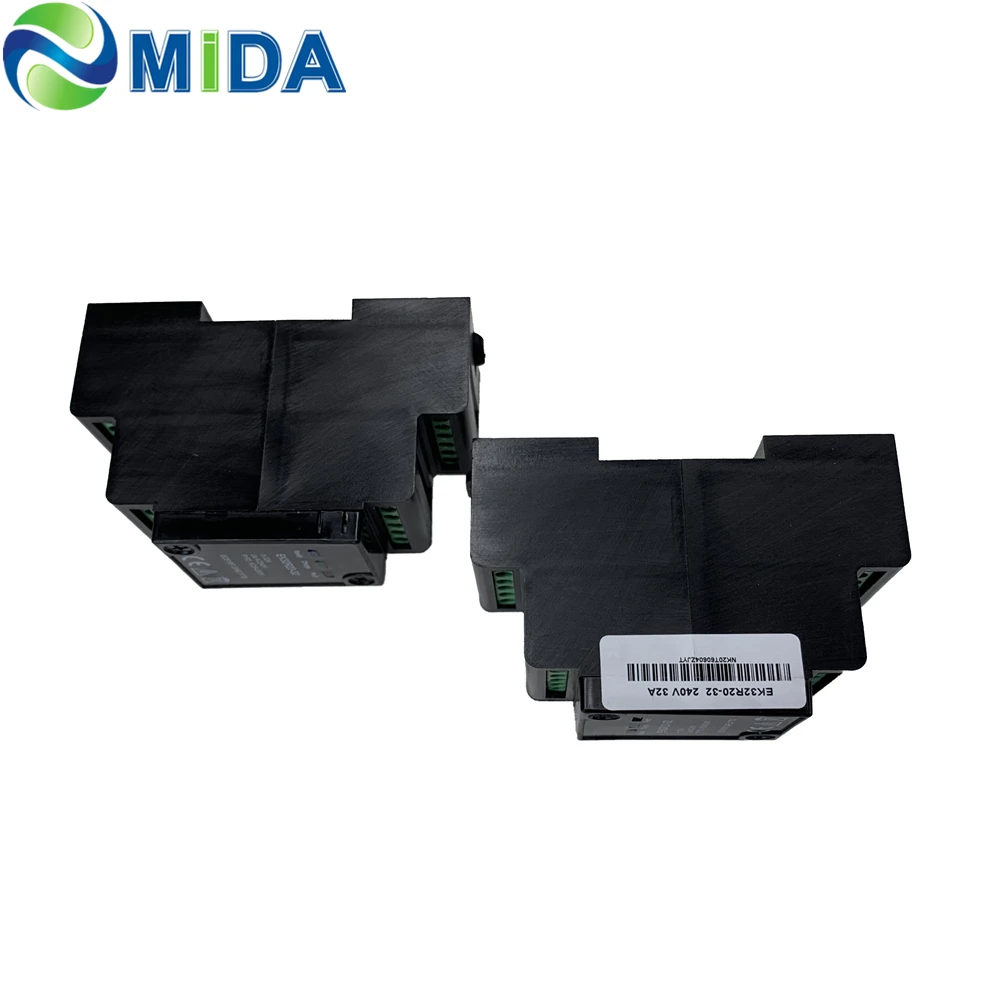

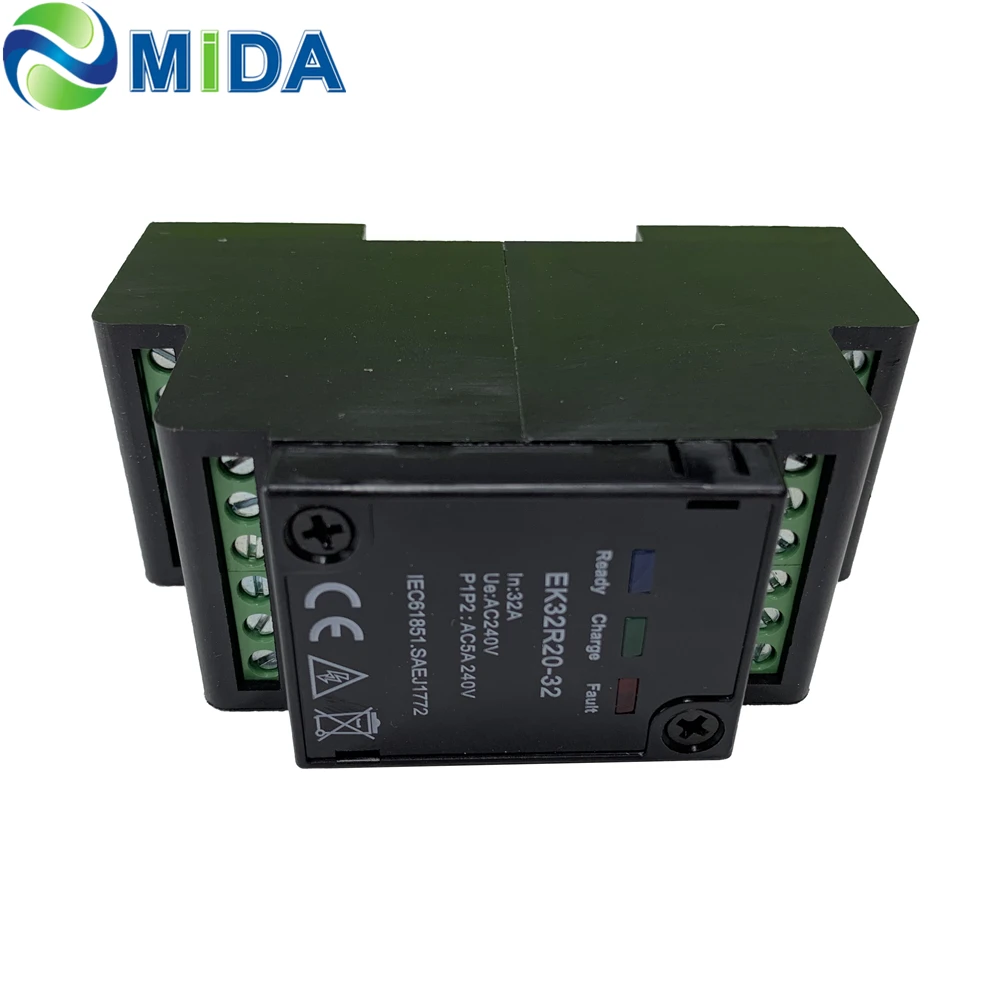

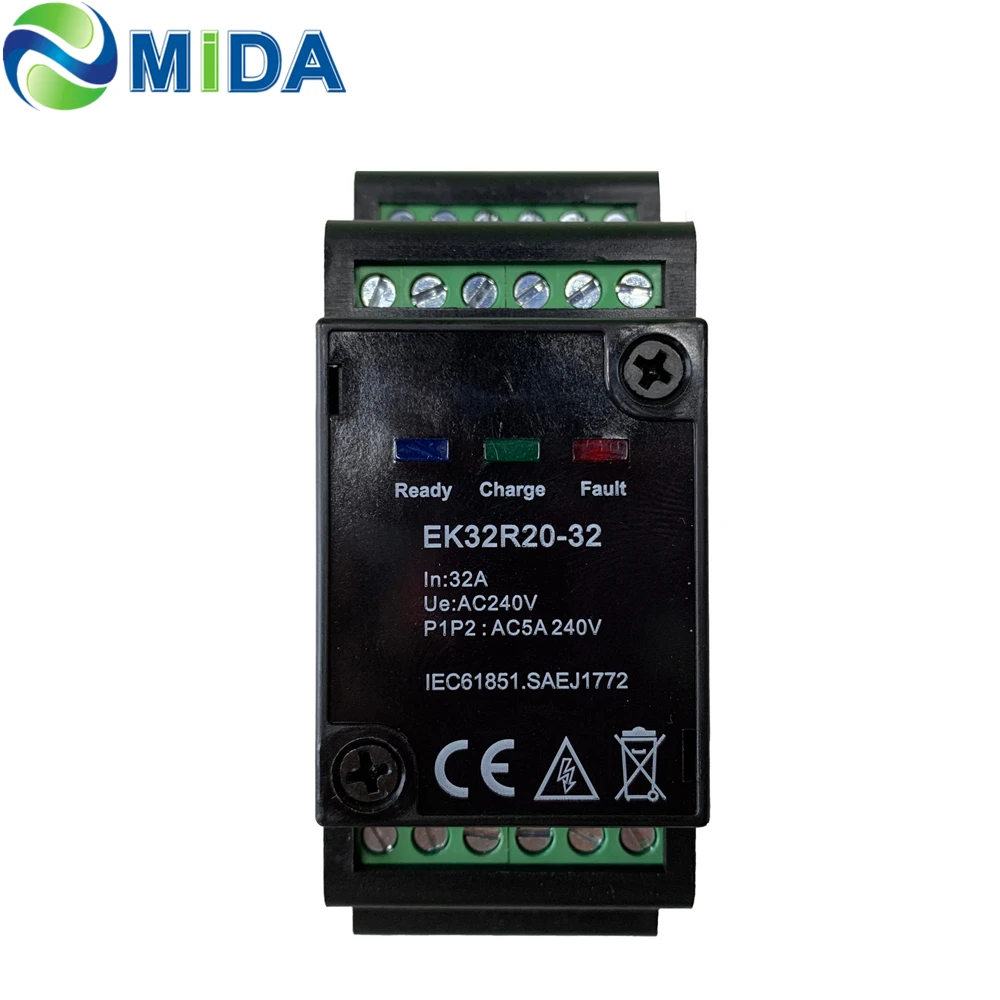

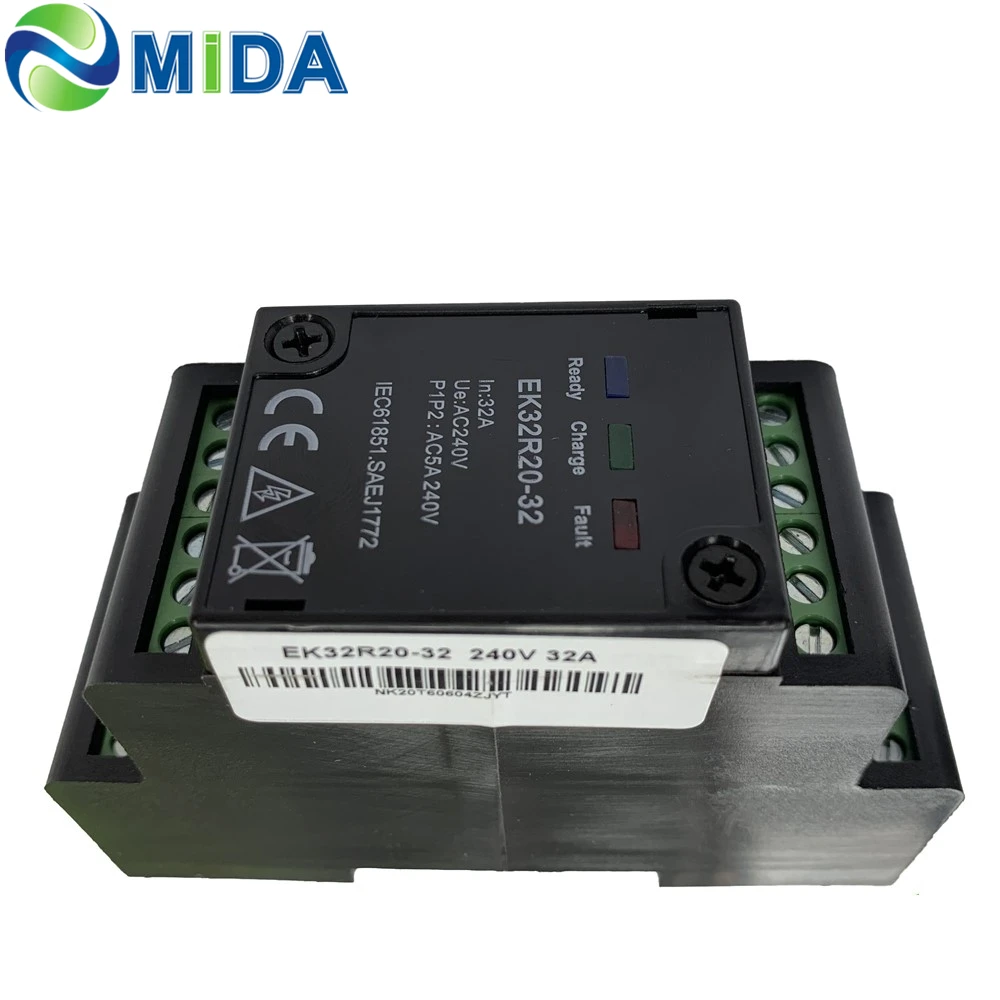

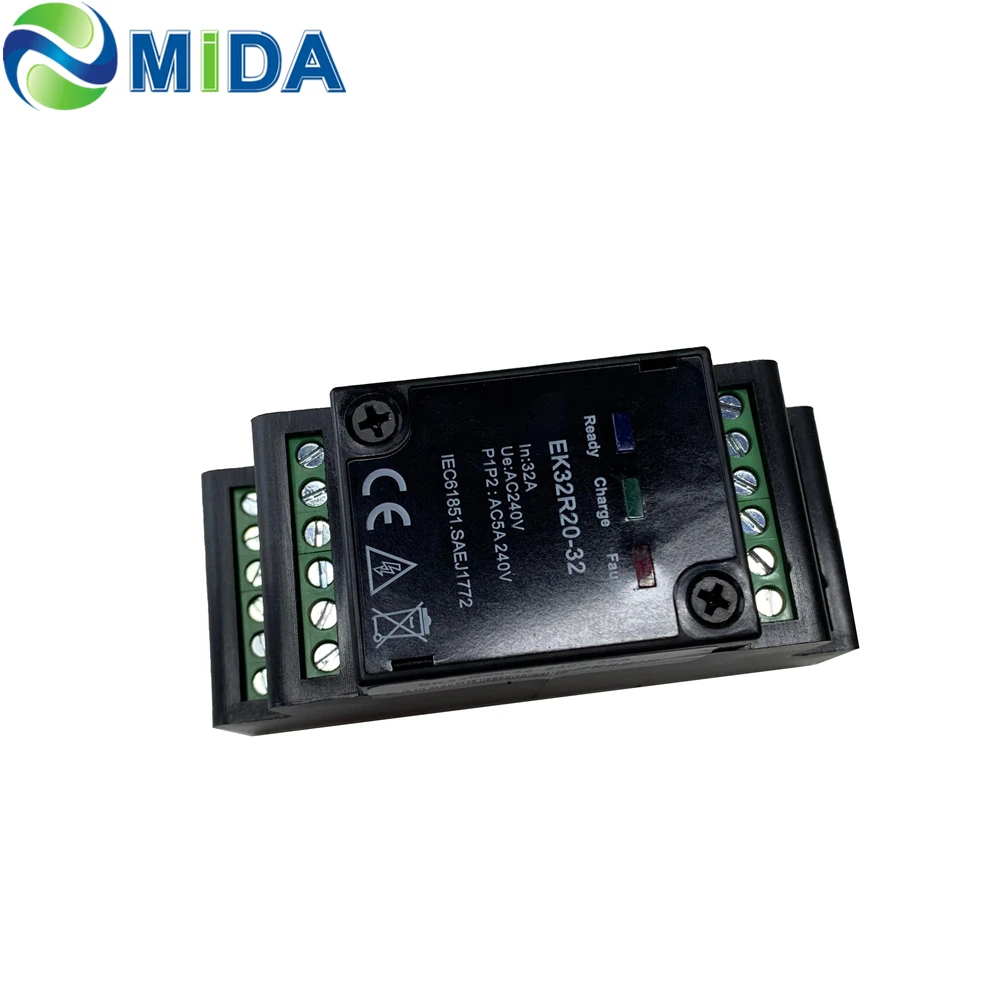

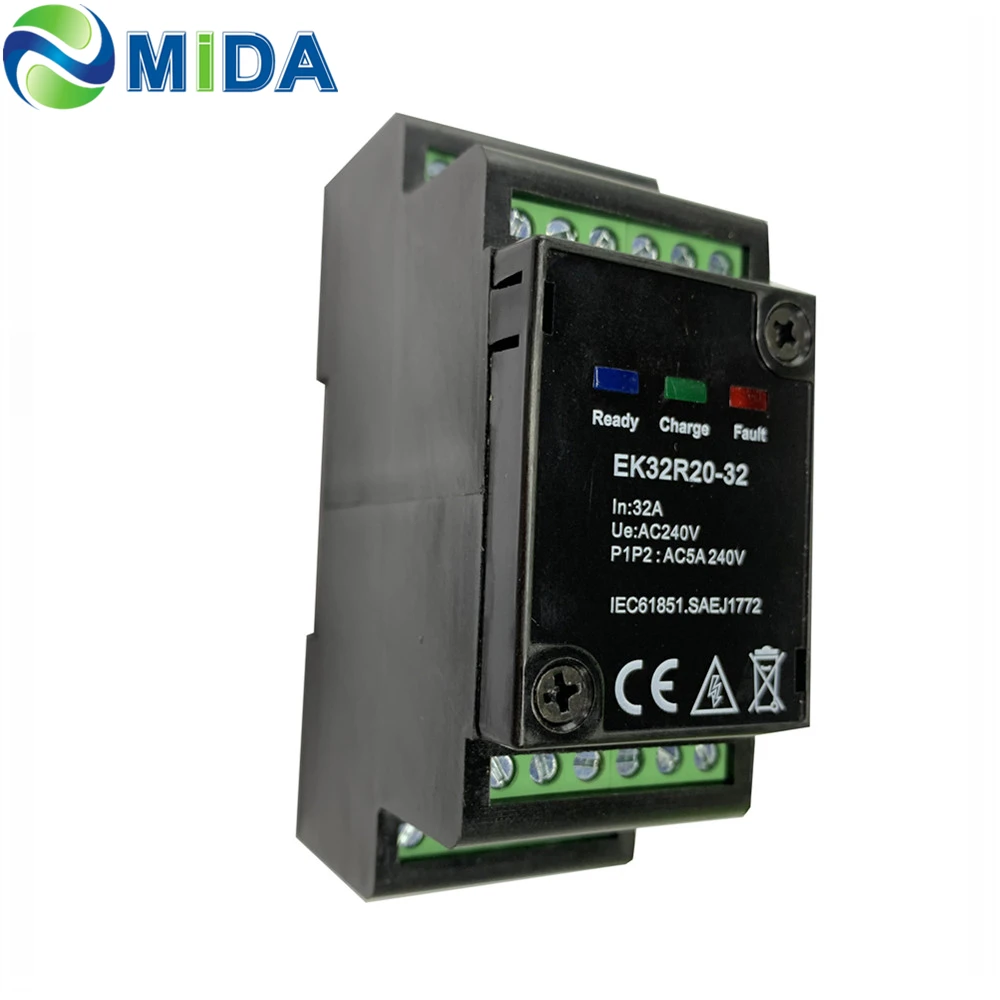

Product Name:32A EPC Electronic Protocol Controller EVSE
Maximun Charging Capacity Indication ： 10A ,16A ,20A,25A,32A (Adjustable)
Product Model：MIDA-EPC-EVS (Socket Version)
L This is where the AC 'live' or 'line connection is made (90-264V @ 50/60Hz AC)N This is where the AC 'neutral' connection is made (90-264V @ 50/60 Hz AC)P1 Relay 1 live from RCCBP2 Reley 1 live from RCCBGN For extemal L ED connection for green indication(5V 30mA)BL For external LED connection for blue indication (5V 30mA)RD For external L ED connation for red indication (5V 30mA)VO This is where the‘ground’ connoction is madeCP This connects to the CP connector on the IEC61851/J1772 EVSE connectorCS This connects to the PP connector on the IEC61851 EVSE connectorP5 Provides 12V continuously to energise solenoid for hatch lockP6 This provides 12V 300mA for 500 ms to engage the lock for motorised lockFB Reads lock feedback for motorised locks12V Power: 12VFA FaultTE TestStandard IEC 61851 , IEC 62321
EVSE Protocol Controller (EPC) is the intelligent part of the Charge charging stations. It is the communication to control the charging procedure ofelectric vehicle ,and conforms to electric vehicle standard IEC61851 or SAEJ1772.Mounting onto standard rail according to DIN EN 60715It is divided to cable version and socket version.EVSE Protocol Controller
