QIACHIP 433 МГц 220V лампы Беспроводной дистанционного Управление переключатель 110V Дистанционное Управление приемник EV1527 передатчик для светодиодных ламп накаливания "сделай сам"

Заполнитель

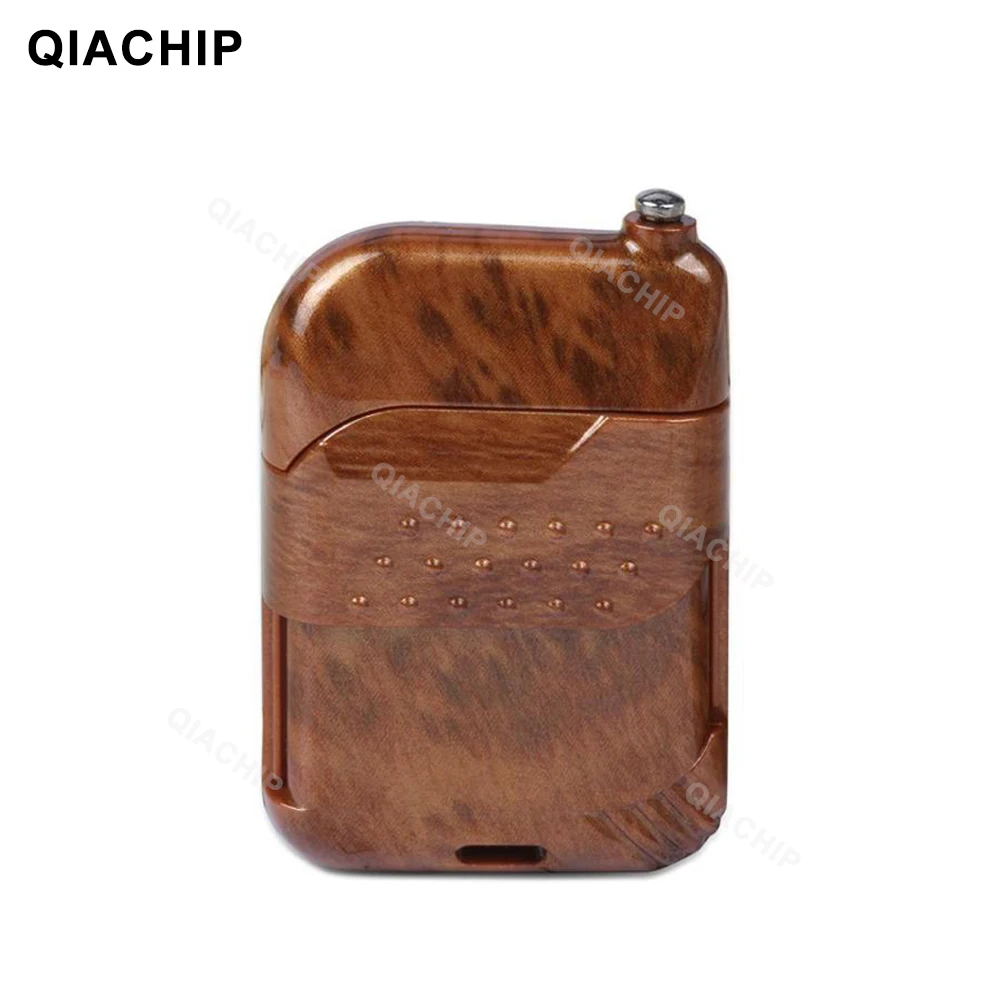

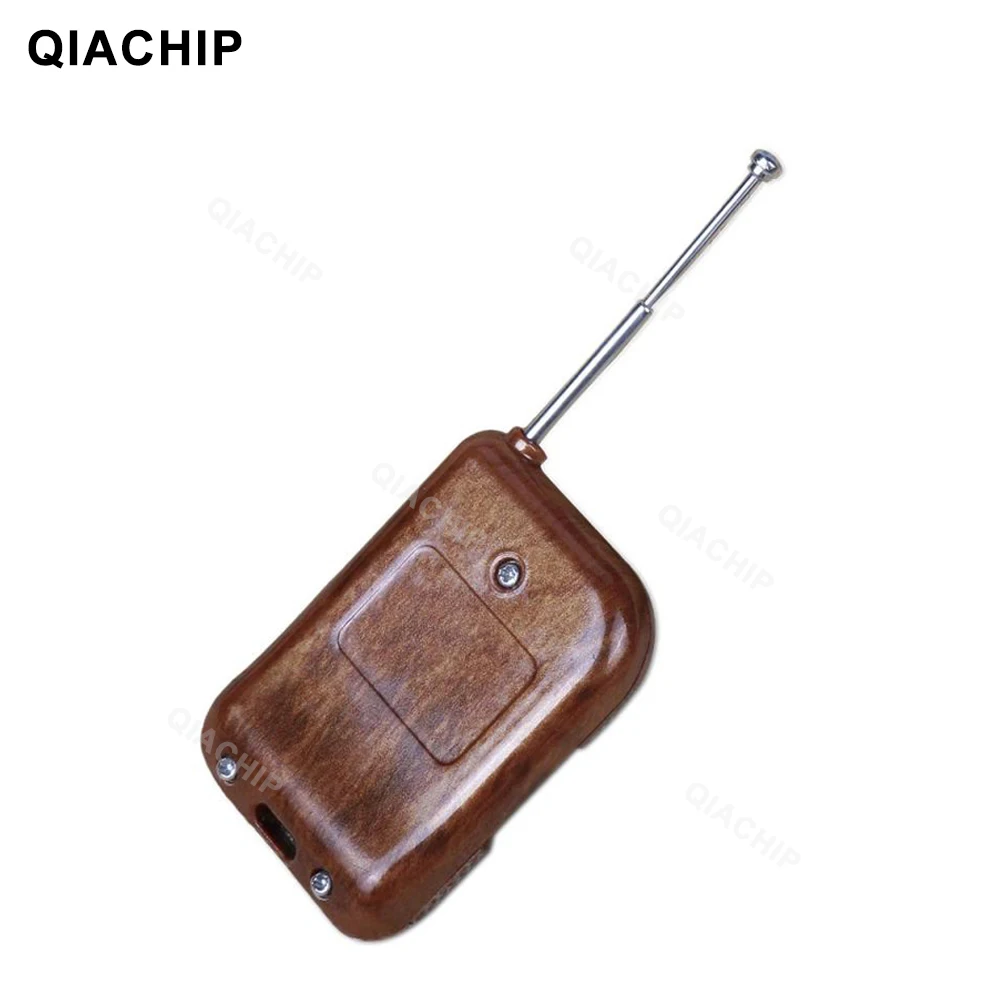

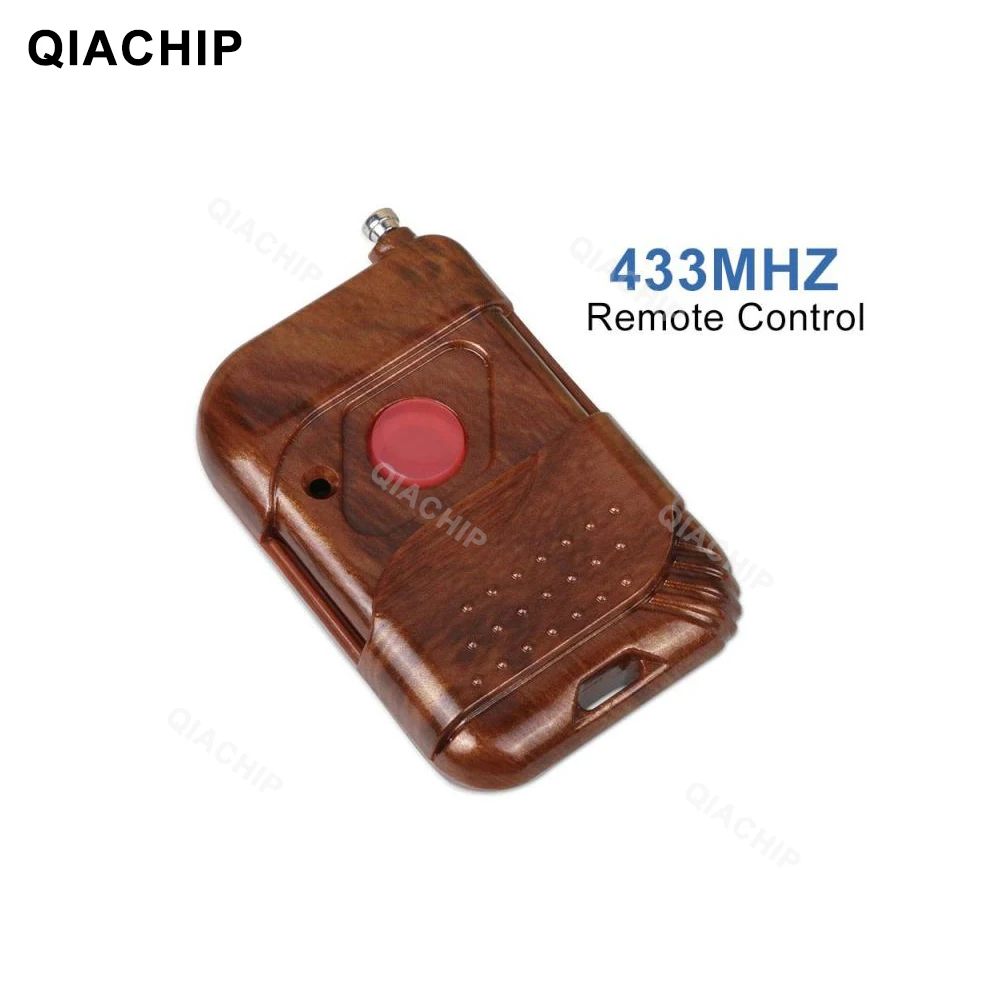

Product Type: KT11-4Materials: ABS Channel: One Channel Encoding Type: Learning Code (1527) F Frequency: 433 MHzModulation System: ASKMatch Code Way: Fixed CodeWorking Voltage: DC 12VWorking Current: <25mAWorking RF Frequency: 433MHZTransmitting Power: +13dbmRemote Control Distance: 50m(Please notice that the 100m distance is the ideal distance without any block and signal interfere. It would rise and fall about 10%-50% with the block and signal interference). Color: Brown Main Item Size: 6.5 * 3.2 * 1.2cm / 2.55 * 1.25 * 0.47inMain Item Weight: 26g/o.9ozPackage Size: 6.8 * 3.5 * 1.5cm / 2.67 * 1.37 * 0.59in Package Weight: 28g/1.0oz

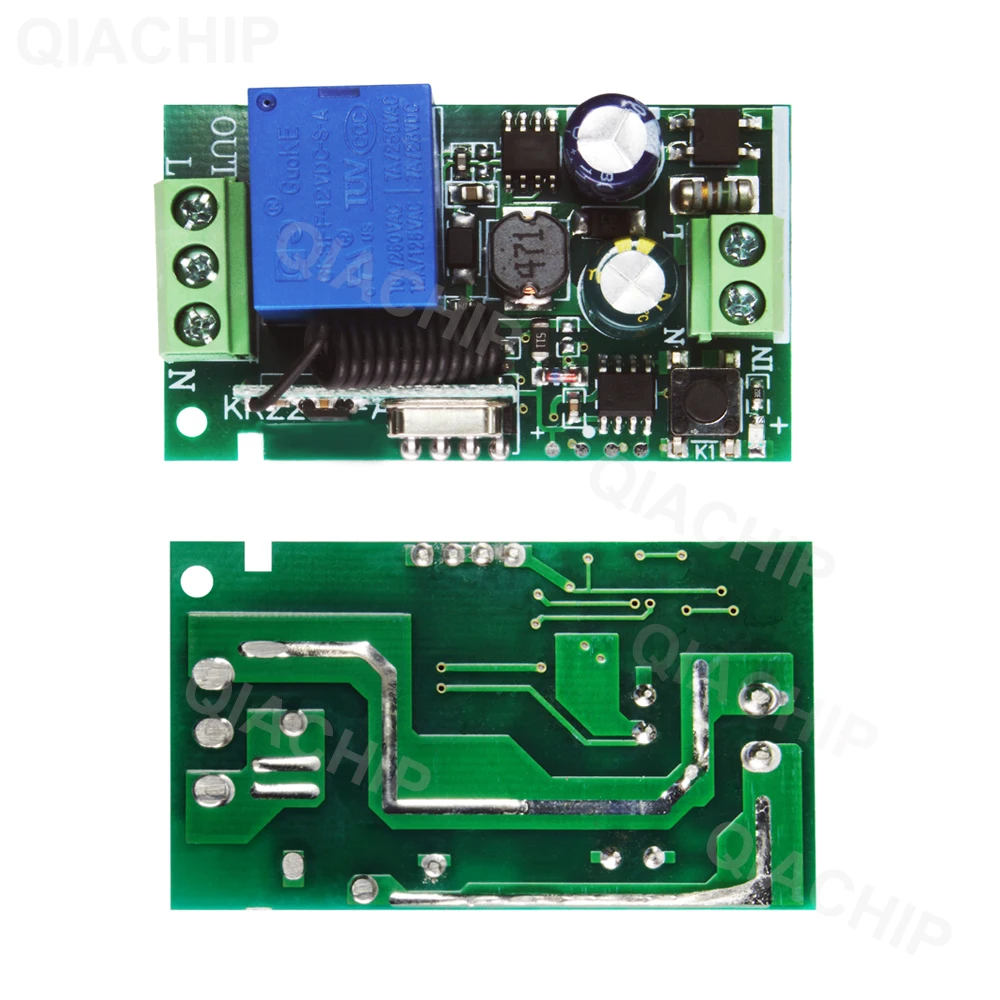

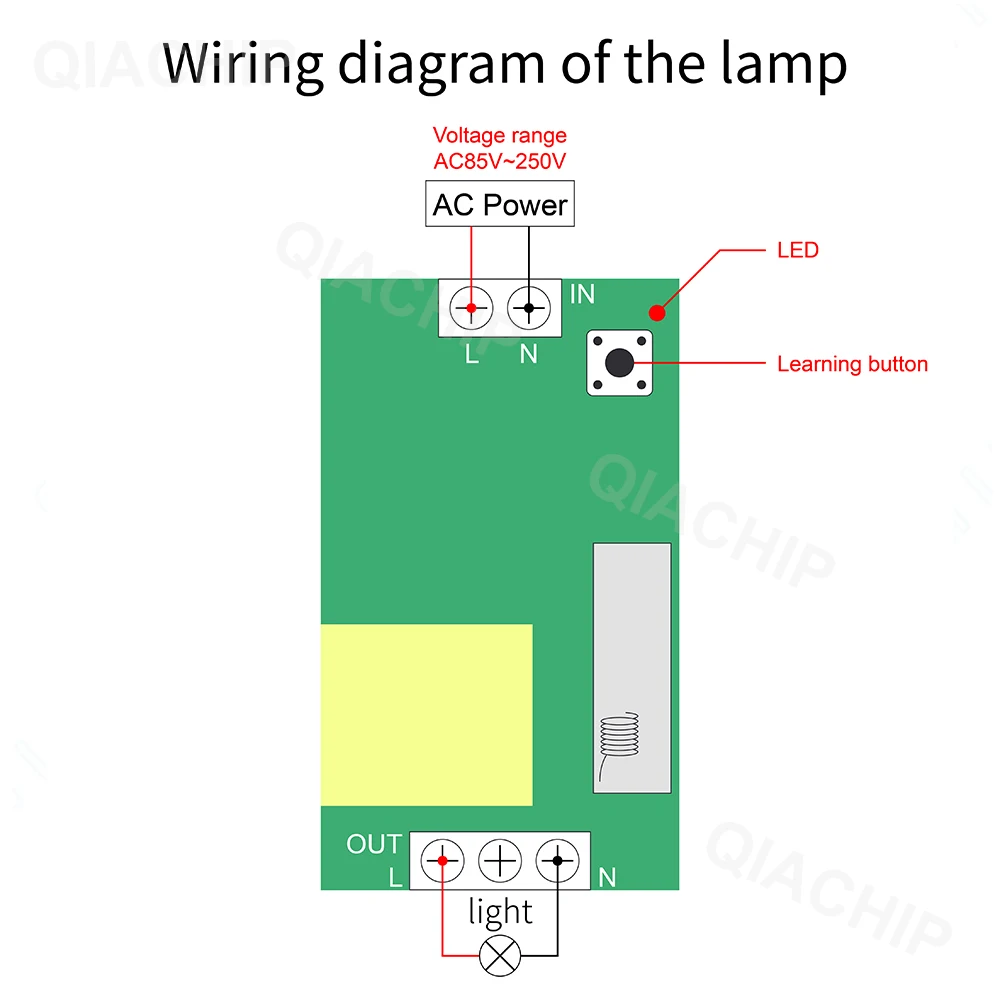

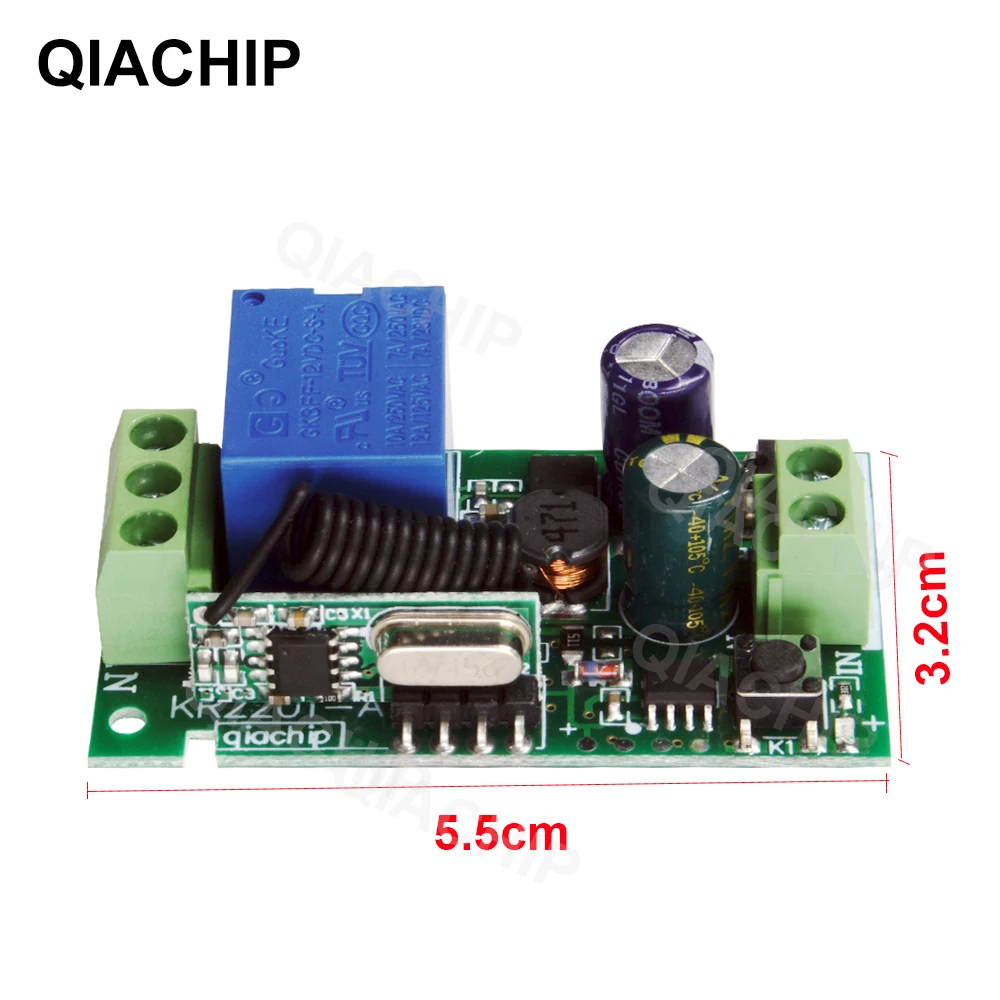

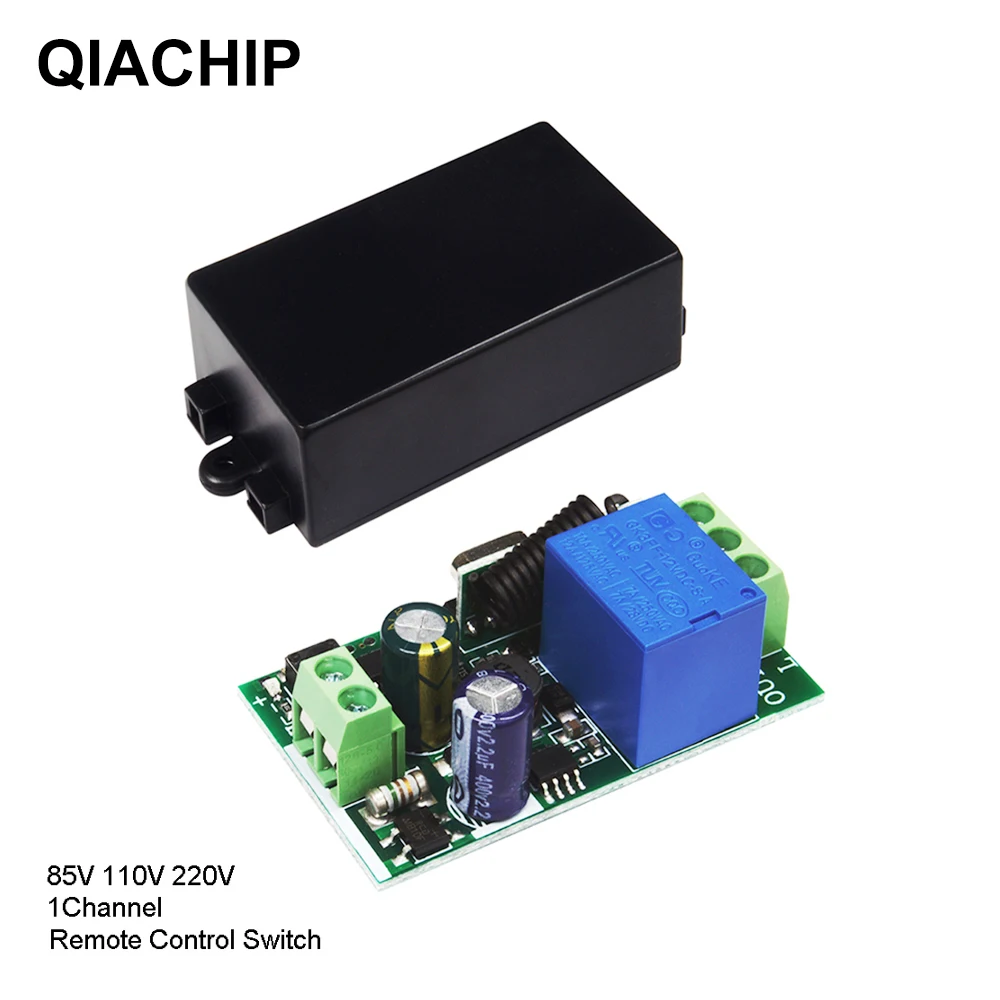

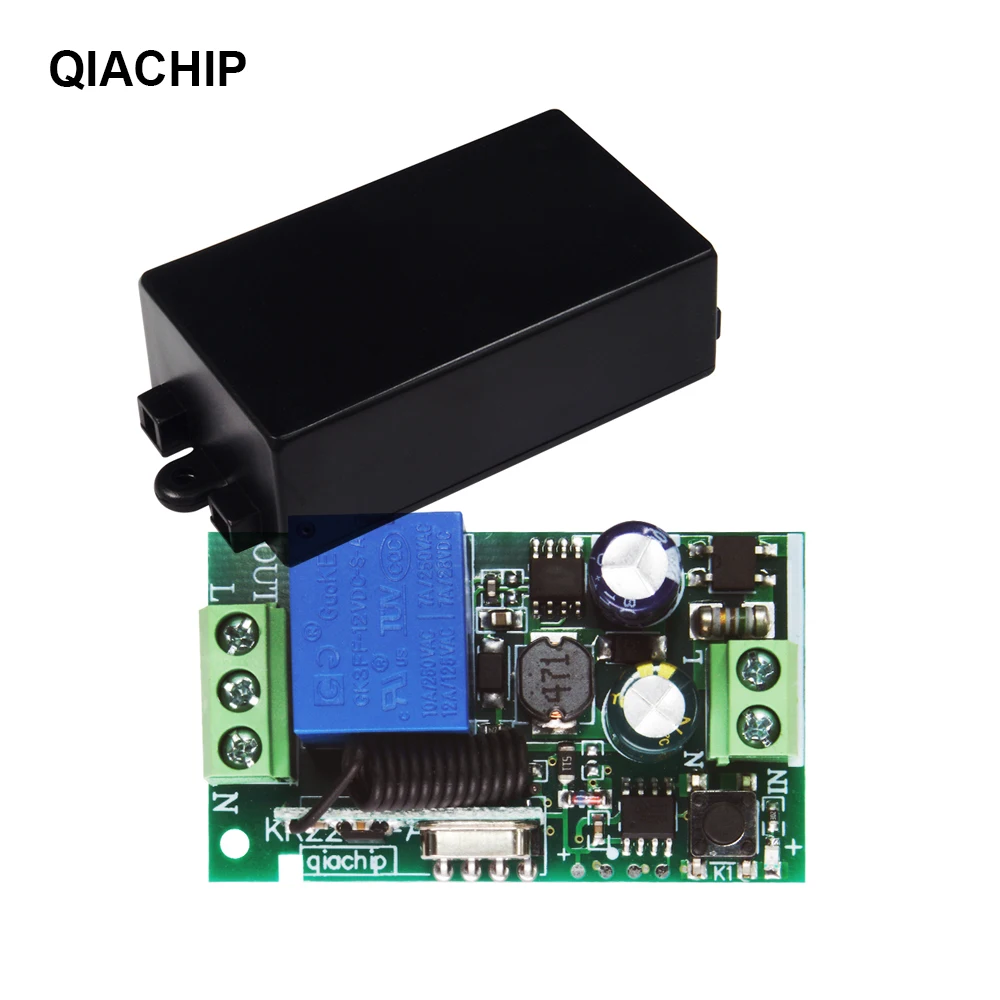

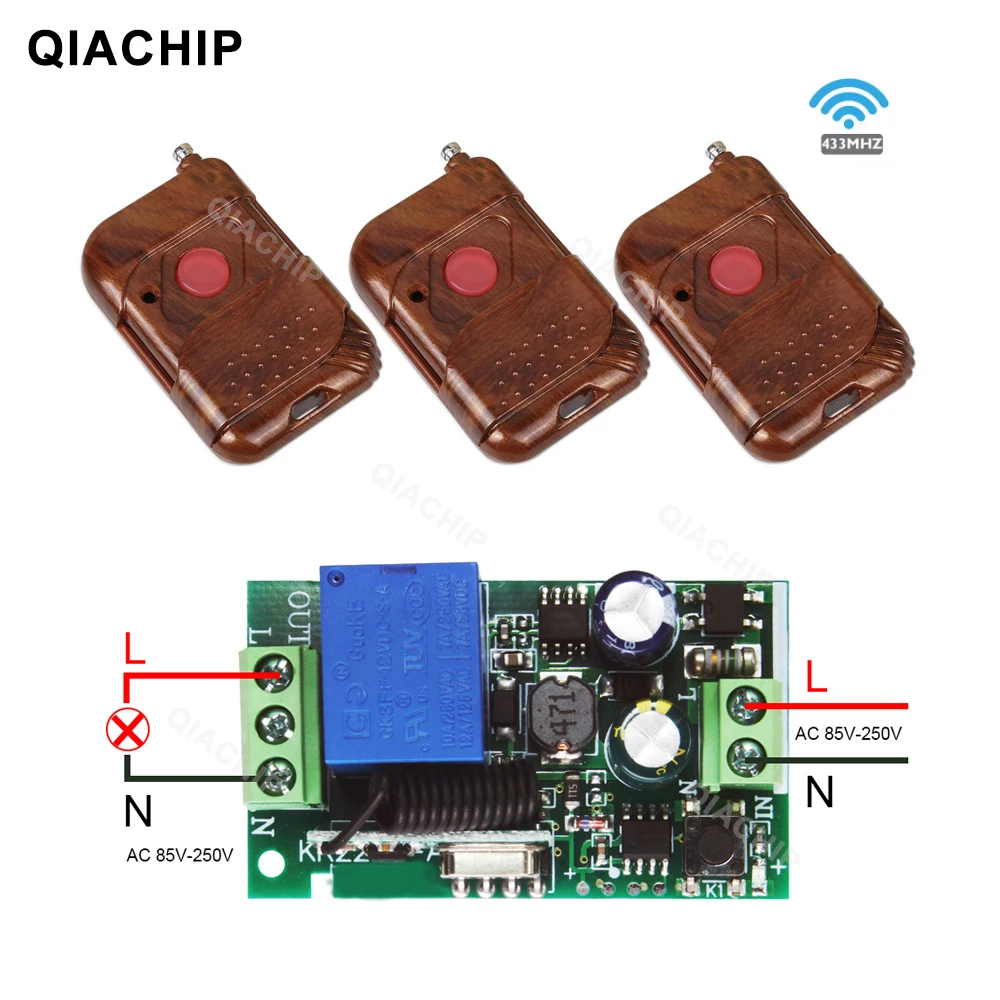

Specifications Of The Receiver:Model Number: KR2201-4Product Type: Single Channel Remote Control SwitchEncoding Type: Intelligent Learning CodeRF Working Mode: Superheterodyne ReceptionModulation Mode:ASKRF Frequency: 433MHzWorking Mode:Momentary, Toggle and LatchingInput Voltage: AC 85V~250VQuiescent Current: 5mAReceiving Sensitivity: >97dbmRemote Control Range: >50m (Free Space)Wired Connection Way: Fixed Wiring PillarOutput Terminal: NO,COM,NCNO: Normal Open(Output).COM:Common(Output).NC: Normal Close(Output).Color: Green(PCB Board), Black (Outside Shell) Circuit Board Size: 6.5 * 3.2 * 1.6cmNotice: The package Included different products because you choose a Different options.

Operation Introduction:

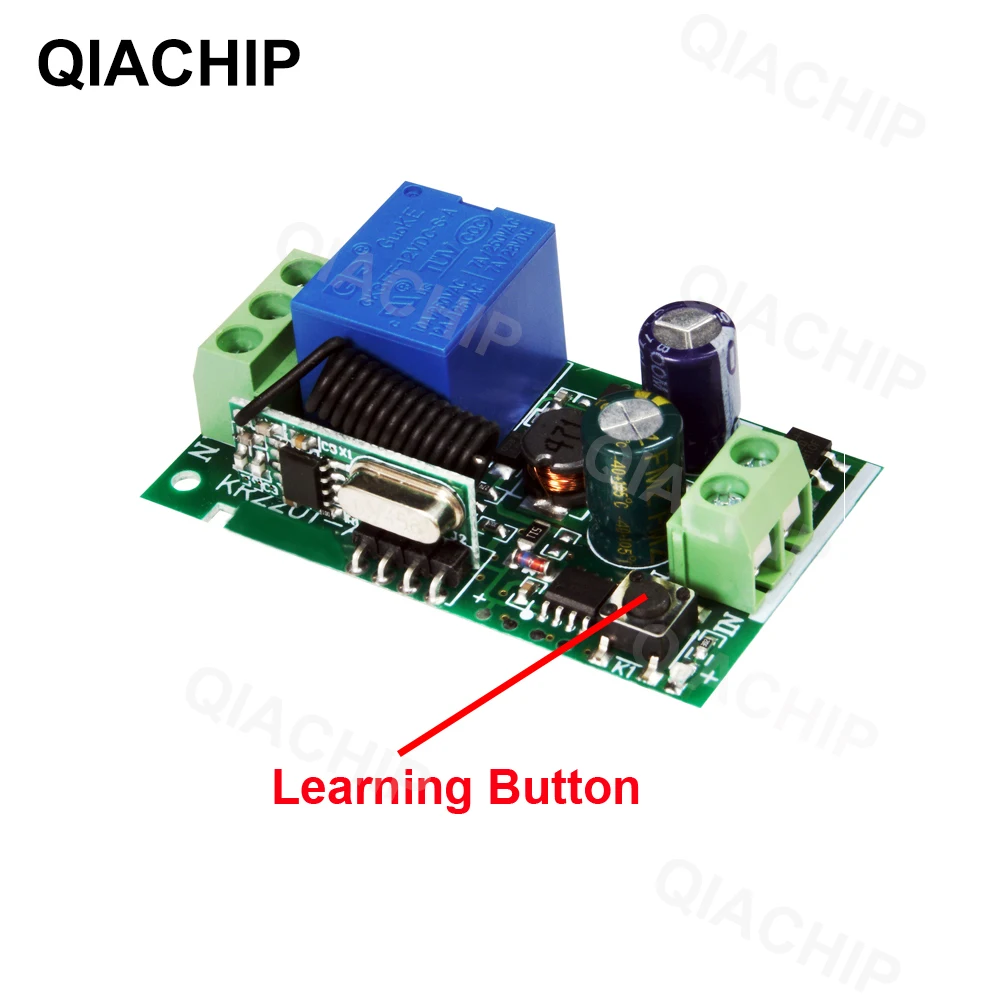

About Working Mode:Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect. (Because this remote only have one button,if want to operate this function ,it need 2pcs remotes)Clearing the Code:Press the Learning Button on the receivers for 8 times, the codes will be cleaned.After cleaning the code, all the remote control cannot work any more.Learning the Code:(Momentary)Press the learning key on the receiver once time, it comes into momentary setting mode.Wait for a moment, the LED will be off , it comes into learning state.Push the remote button, LED indicator on the receiver board will flash then come off.After 3 seconds, the LED indicator will be on again, learning successfully.Learning the Code: (Toggle)Press the learning key on the receiver twice time, it comes into toggle setting mode.Wait for a moment, the LED will be off , it comes into learning state.Press the remote button, LED indicator on the receiver board will flash then come off.After 3 seconds, the LED indicator will be on again, learning successfully.Learning the Code:( Latching)Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learning is for ON, the second time learning for OFF.For example: Button A = ON, Button B = OFFPress the learning key on the receiver triple time, it comes into latching mode .Wait for a moment, the LED indicator on the receiver board will flash then come off.Press the remote button A. LED flash for 5 times.Press the remote button B. LED flash for 5 timesAfter 3 seconds, the LED indicator will be on again, learning successfully.A = ON, B = OFF.
