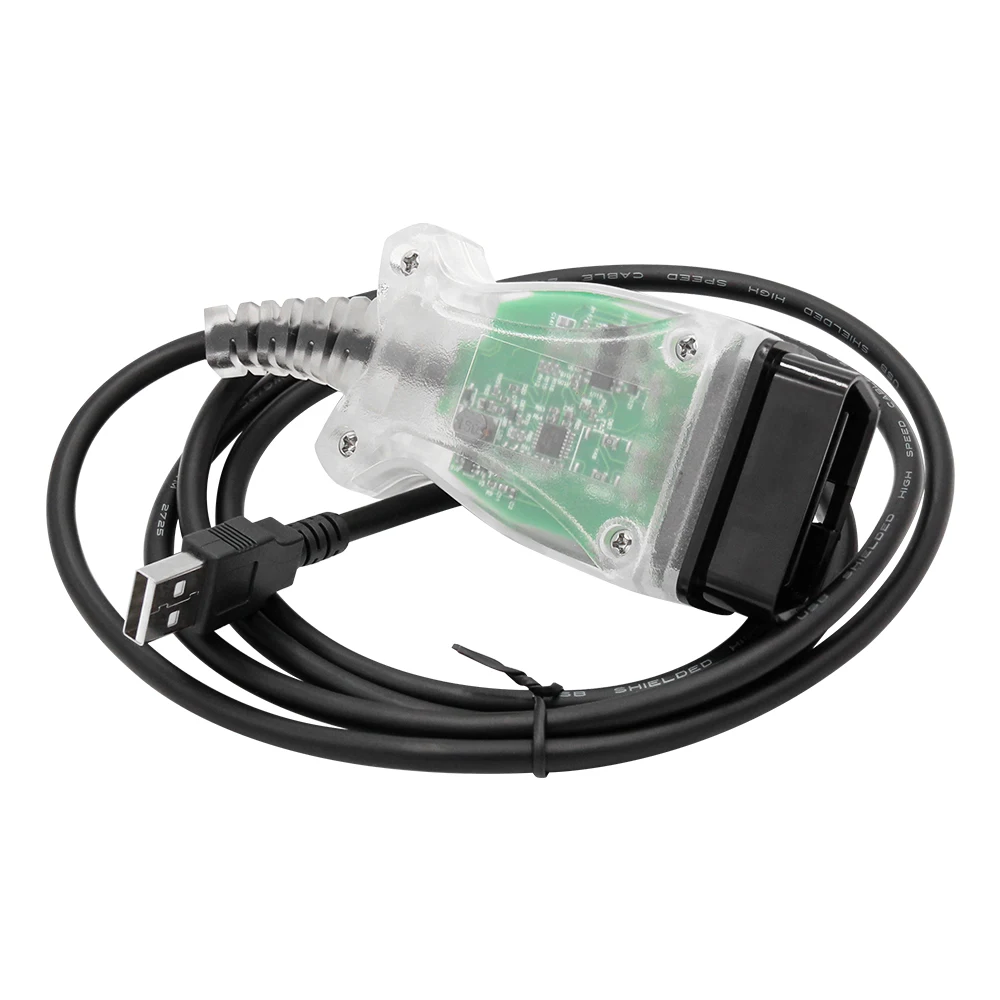

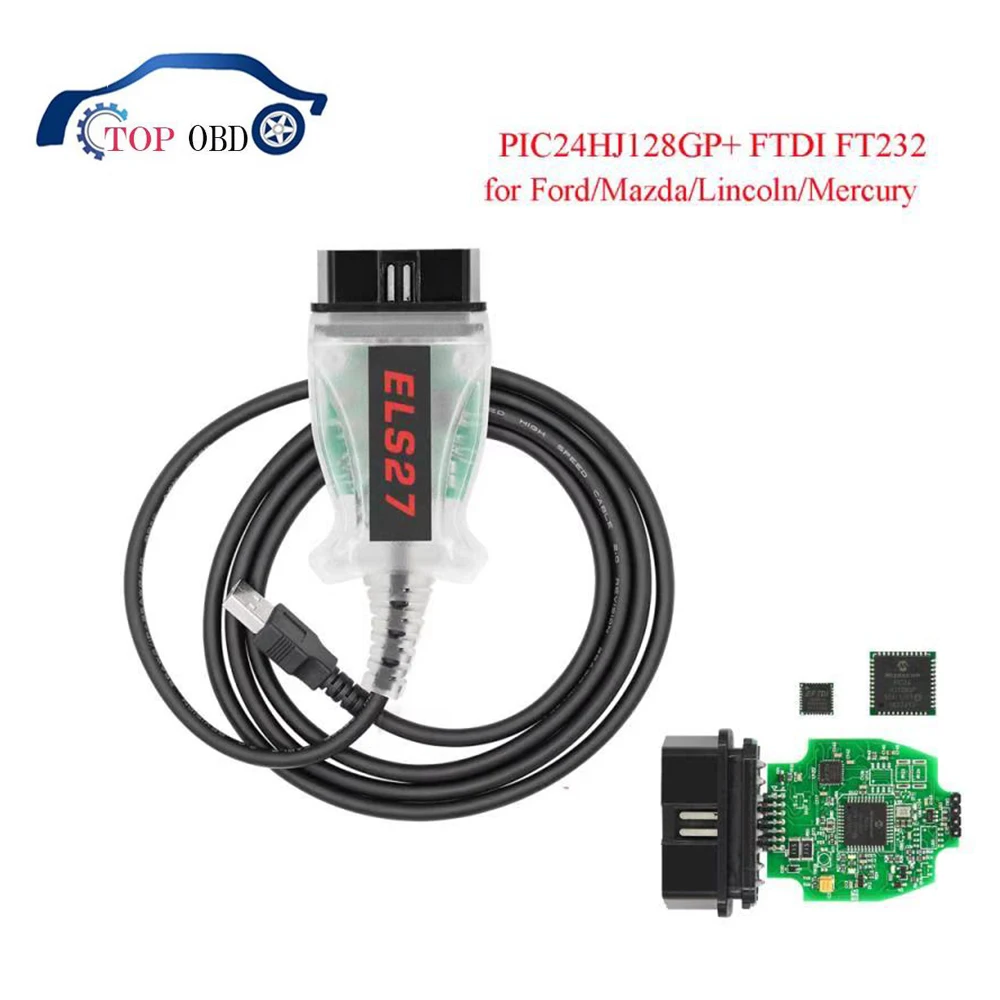

Автомобильный диагностический кабель ELS27 FORScan OBD OBD2, сканер ELS 27 FTDI PIC24HJ128GP для Ford для Mazda для J2534 ELM 327 V1.5

For Ford / Mazda ELS27 FORScan Scanner OBD OBD2 Diagnostic Cable ELS27 with FTDI FT232RQ Chip For Lincoln For Mercury

​Warm Tips:

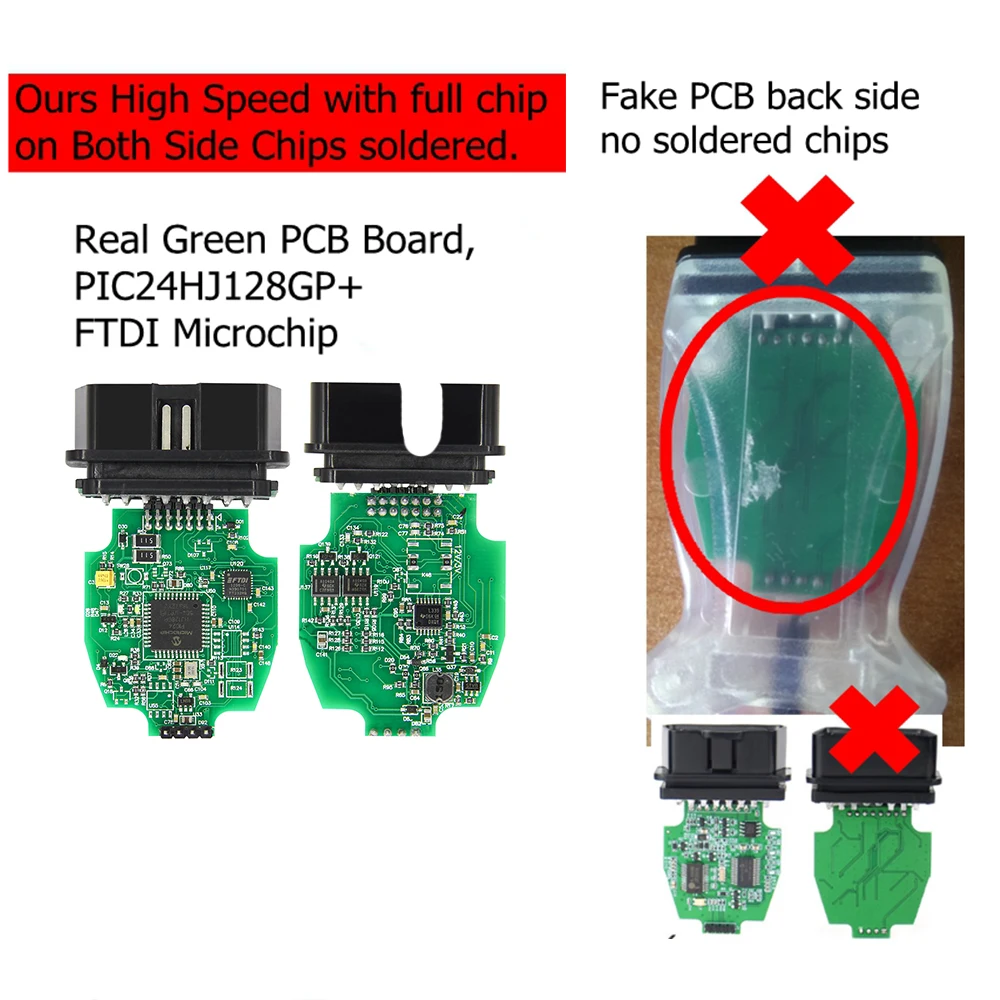

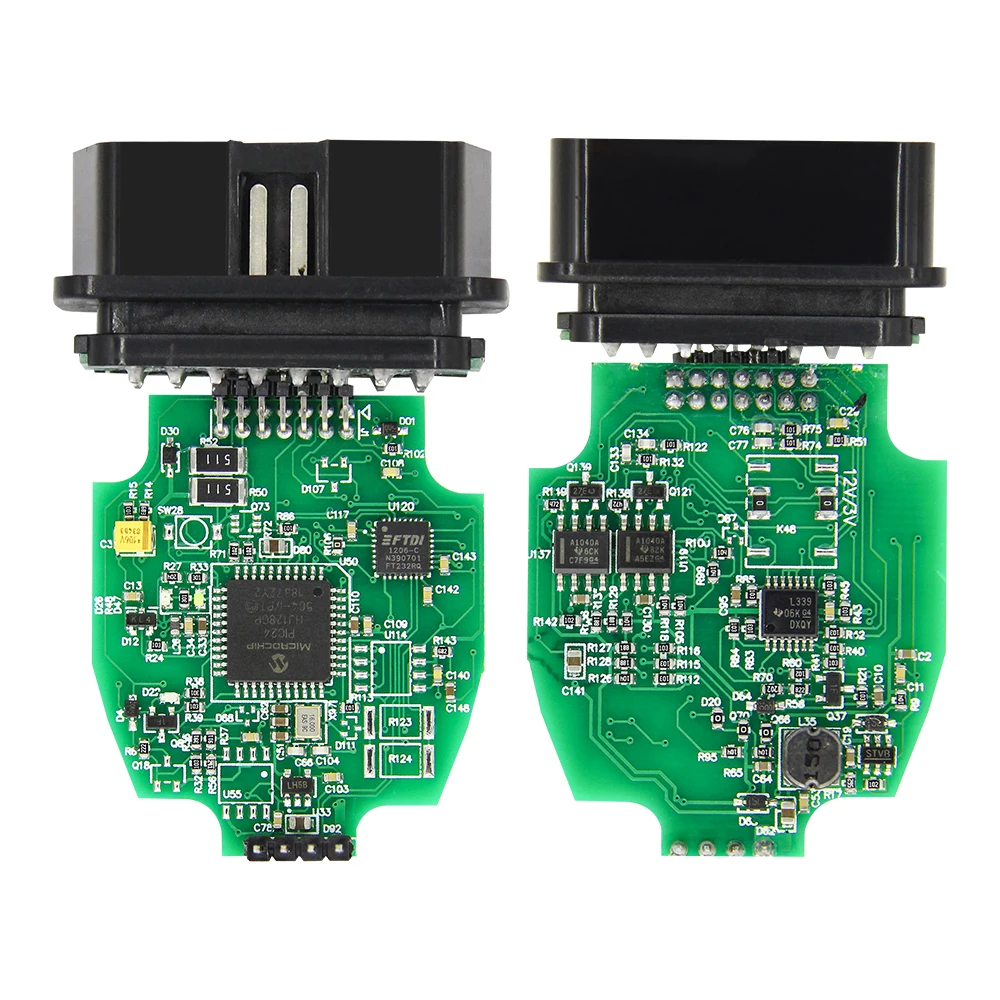

Real Green PCB Board,PIC24HJ128GP+FTDI Microchip

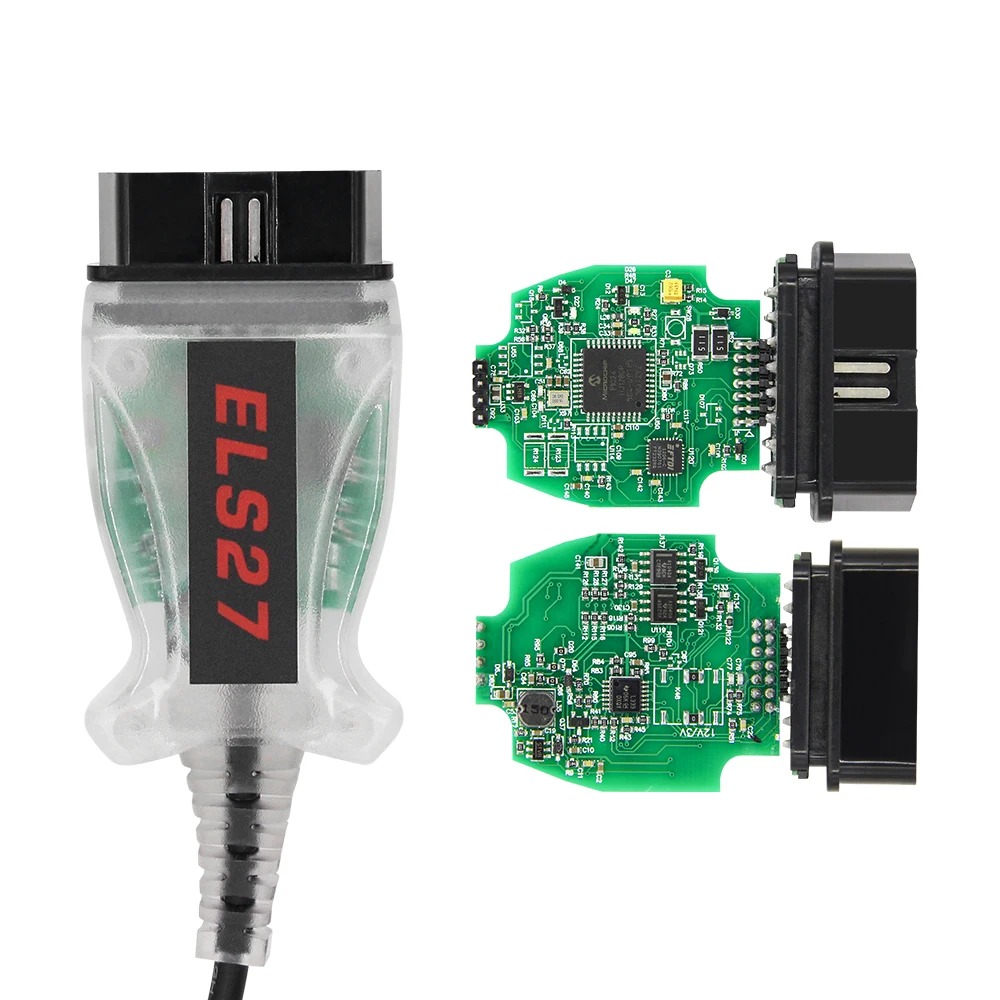

Our High-Speed PCB Version  VS  Other Faker PCB Version



What is FORScan?

For example, FORScan can detect modules which are not visible for regular OBD2 scanners, can show you trouble codes which are never displayed by OBD2 scanners, can show you PIDs which are not supported by any OBD2 scanner, run specific tests and service procedures. In other words, FORScan can do things that regular OBD2 scanners can not do.



Supported Platforms:

Windows 2000/XP/Vista/7/8/8.1

Do not support wifi or bluetooth

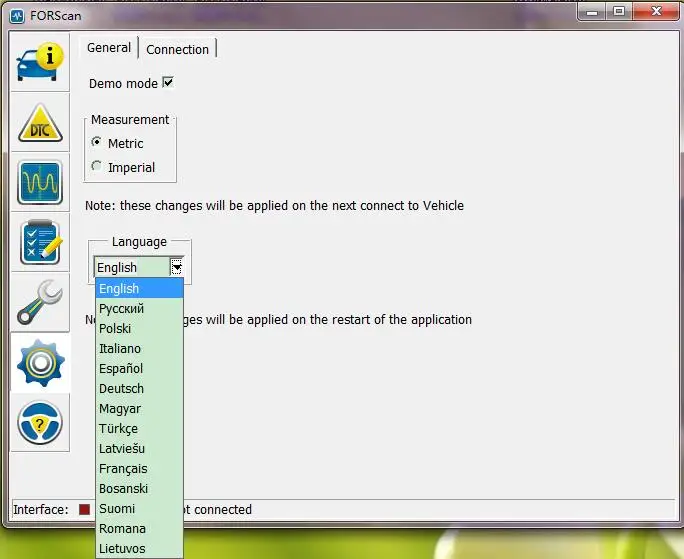

Support Multi-Language:

Main features:

Detect vehicle on-board network configuration

Read and reset Diagnostic Trouble Codes from all modules (see list of supported modules)

Reading of modules' sensors' data

Run test diagnostic procedures (not supported in FORScan Lite yet)

Run service procedures (not supported in FORScan Lite yet)



Supported vehicles:

All for Ford, for Mazda, for Lincoln, for Mercury vehicles that can be addressed by supported adapters. It is 99% of models after 2000 and around 92% of models after 1996 (the year when OBD2 became a standart in USA).





ITEMS DESCRIPTION:



FORScan is a software scanner for Ford, for Mazda, for Lincoln and for Mercury vehicles, designed to work over ELM327 and J2534 Pass-Thru compatible adapters.





FORScan designed especially for Ford, for Mazda, for Lincoln and for Mercury vehicles. So supports specific features of the manufacturer protocols, making the FORScan more powerful in work with these models than any regular OBD2 scanner.

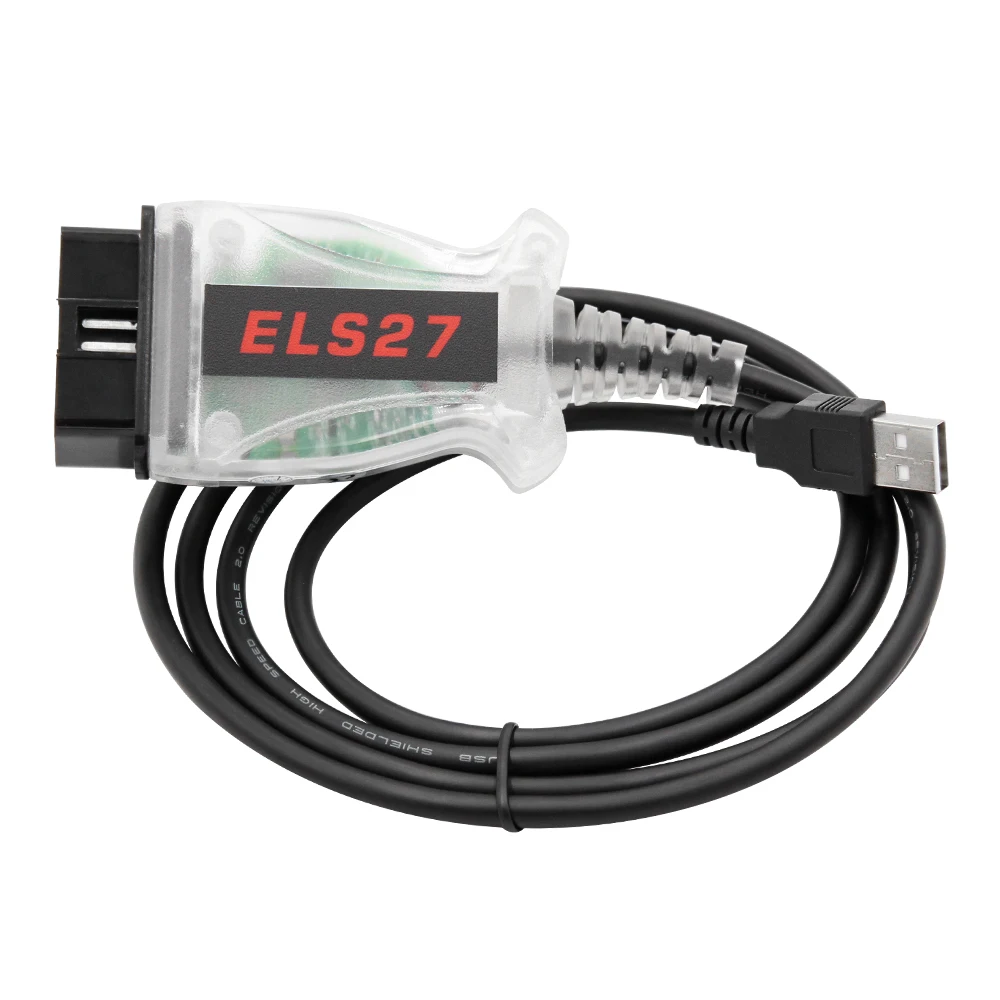

ELS27 FORScan Scanner with FT232RQ Chips for Ford/Mazda/Lincoln and for Mercury Vehicles



Latest Version: V2.3.7



+ Vehicle database update



+ Configuration and programming procedures "Central configuration", "RCM Module reset/configuration", "ABS Module reset/configuration" for:

•For Focus C-Max 2015 model year



+ Service function "PATS Programming" for:

•For Focus Mk1 (platform C170) 2008-2011 model year

•For F-150 2009-2010 model year

•For Escape 2.5/3.0 2009-2010 model years

•For Escape 2011-2012 model years

•For Expedition/EL 2009-2014 model year

•For Mazda Tribute 2.5/3.0 2009-2010 model years

•For Mazda Tribute 2011-2012 model years

•For Mercury Mariner 2.5/3.0 2009-2010 model years

•For Mercury Mariner 2011-2012 model years

•For Lincoln Navigator/L 2009-2014 model year



+ Service procedure "DPF Static Regeneration" for:

•For F-Series Super Duty (platform P473) 6.7 Powerstroke 2011-2016 model year



+ Service procedure "DPF Static Regeneration", "Reset the Diesel Particulate Filter Learned Values", "Reset Differential Pressure Sensor Learned Values" for:

•For Transit 2.2 TDCi 2014-2016 model year

+ Service function "Calibrate Steering Angle Sensor" for:

•For Transit 2006 model year



+ Service functions "Calibrate Lateral Acceleration Sensor", "Calibrate Steering Angle Sensor" for ABS/ESP module of:

•For C-Max 2015 model year



+ Service functions "Calibrate Longitudinal Sensor" for ABS/ESP module of:

•For Focus/C-Max 2015 model year



+ Service function "Reset Straight Ahead Angle Learned Value" for:

•For C-Max 2015 model year



+ Service function "Calibrate AdvanceTrac/IVD" for:

•For Expedition 2003-2004 model year

•For Explorer 2002-2003 model year

•For Lincoln Aviator 4.6 4V 2003-2005 model year

•For Lincoln Navigator 2003-2004 model year

•For Mercury Mountainer 2002-2003 model year



+ Service function "Reset All Adaptations" for:

•For Galaxy/S-Max 2.0/2.3 Duratec-HE 2006-2010 model year

•For Mondeo Mk4 2.0/2.3 Duratec-HE 2007-2011 model year

•For Transit 2.3 Duratec-HE 2006 model year



+ Service function "ABS Service Bleed" for:

•For Expedition 2003-2004 model year

•For Explorer 2002-2003 model year

•For Thunderbird 2002-2005 model year

•For Lincoln Aviator 2003-2005 model year

•For Lincoln LS 2000-2006 model year

•For Lincoln Navigator 2003-2004 model year

•For Mercury Mountainer 2002-2003 model year



* Fixes and improvements in service function "PATS Programming" for:

•For F-150 2011-2014 model year

•For F-Series Super Duty (platform P473) 2011-2015 model year



- bug missing Instrument Cluster For Mazda CX-5 and some other Skyactive

- major bug opening Motorcraft *.ab files in programming procedure "Central Configuration" for cars with SBL

- major bug in CAN communication appeared sometimes on programming requests to slow modules

- bug opening *.fsl files that contain non-ASCII characters in the path using Windows file association mechanism (in Windows Explorer or other shell)

- bug in service function "Calibrate AdvanceTrac/IVD" for:

•For Explorer 2004-2005 model year

•For Explorer SportTrac 4.0 V6 2005

•For Mercury Mountainer 2004-2005 model year

- bug in EGR reset function for Focus/CMax Mk2



- Incorrect output for some error codes in service function "Fuel Injection Pump Learn" for Transit 2006 model year



Supported adapters :

ELM327

J2534 Pass-Thru

CANtieCAR (in "FORScan" mode)

OBDLink SX/MX (STN11xx)

ELS27 (STN1170)

Supported protocols and bus:

for FORD HS CAN

for FORD MS CAN (only for J2534-2, CANtieCAR, OBDLink MX, ELS27 or modified ELM327)

for FORD SCP

for FORD 9141



Supported modules:

Almost all of modules availabe through supported protocols.

Powertrain Control Module (PCM)

Anti-Lock Brake / Traction Control Module (ABS)

Hybrid Electronic Cluster (HEC)

Left High Intensity Discharge Lamp (LHID)

Right High Intensity Discharge Lamp (RHID)

Vehicle Dynamics Module (VDM)

4X4 Control Module (4X4M)

Air Conditioning Control Module (ACCM)

Audio Control Module (ACM)

Audio Control Unit (ACU)

Alternative Fuel Control Module (AFCM)

Adaptive Front Lighting System / Auto Leveling Module (AFS/ALM)

Adaptive Front Lighting System (AFS)

Auxiliary Heater Control Module (AHCM)

Audio Interface Module (AIM)

Auto Leveling Module (ALM)

Amplifier Module (AM)

Accessory Protocol Interface Module (APIM)

Automatic Ride Control (ARC)

A-STOP System (No Idling System) (A-STOP)

All Terrain Control Module (ATCM)

All Wheel Drive Module (AWD)

Battery Charger Control Module (BCCM)

Battery Control Module (BCM)

Body Control Module (BCMii)

Body Control Module / Generic Electronic Module (BCM/GEM)

Body Control Module B (BCMB)

Battery Energy Control Module (BECM)

Body Electronic Module (BEM)

Bluetooth Phone Module (BPM)

Security module (CSM)

Blind Spot Monitoring (Left) (BSML)

Blind Spot Monitoring (Right) (BSMR)

Remote Climate Control (RCC)

Cruise-Control Module (CCM)

Circuit Deactivation Ignition Module (CDIM)

Compact Disc Player (CDP)

Instrument cluster (INST)

Column Lock Module (CLM)

Camera Module Rear (CMR)

Connectivity Master Unit (CMU)

Cellular Phone Module (CPM)

Central Timer Module (CTM)

Convergence Telematics Module (CTMii)

Digital Audio Broadcast Module (DABM)

Digital Audio Control Module C (DACMC)

DC to DC Converter Control Module (DCDC)

Driver/Dual Climate-Control Seat Module (DCSM)

Reductant Control Module (DCU)

Driver Door Control Unit (DFDM)

Drivers Door Module (DDM)

Deployable Hood System (DHS)

Driver's Seat Module (DSM)

(Audio) Digital Signal Processing Module (DSP)

Electronic Automatic Temperature Control (EATC)

Rader Brake Support (EBS)

Electronic Crash Sensor (ECS)

Electric Parking Brake (EPB)

Electronic-Controlled Power Steering (EPS)

Anti-Lock Brake / Traction Control Module (ESOF)

Front Body Control Module (F_BCM)

Fuel Additive Control Module (FACM)

Front Control/Display Interface Module (FCDIM)

Front Controls Interface Module (FCIM)

Front Display Interface Module (FDIM)

Front Distance Sensing Module (FDSM)

Transmission Control Module (TCM)

Fuel Fired Coolant Heating Module (FFH)

Passive Anti-Theft System (PATS)

Front Electronic Module (FEM)

Fuel Injection Control Module (FICM)

Fuel Indication Module (FIM)

Fuel Injection Pump (FIP)

Front Lighting Control Module (FLM)

Fuel Operated Heater (FOH)

Forward Sensing Camera (FSC)

Fire Suppression System Module (FSSM)

Folding Top Control Module (FTCM)

Generic Display Module (GDM)

Generic Electronic Module / Smart Junction Box (GEM/SJB)

Generic Electronic Module (GEM)
