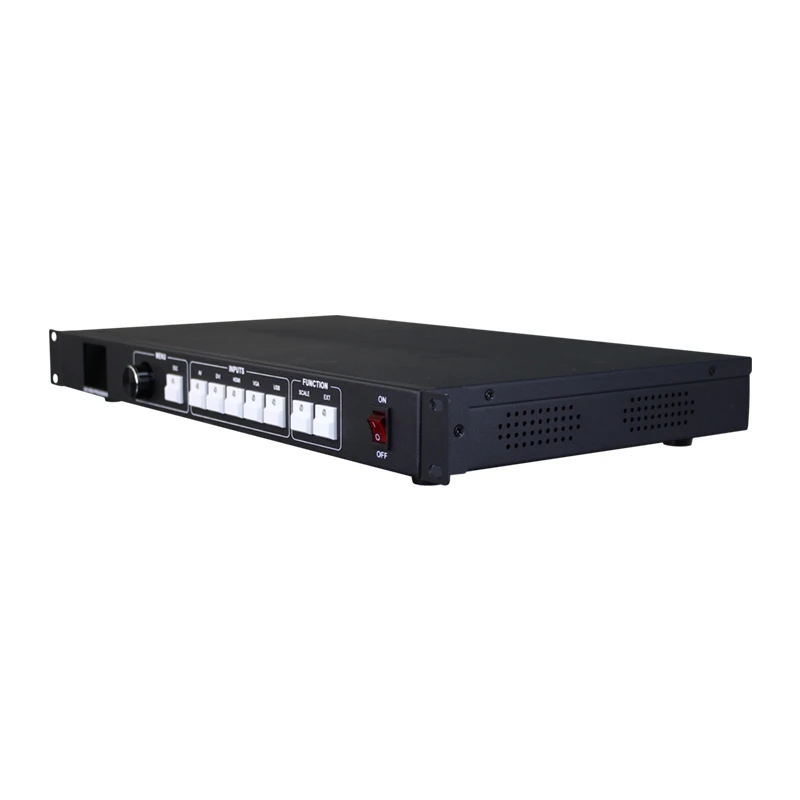

Светодиодный видеопроцессор Amoonsky 3 в 1, AMS-VS3, с поддержкой синхронизации и отправки карт

Заполнитель

Functions

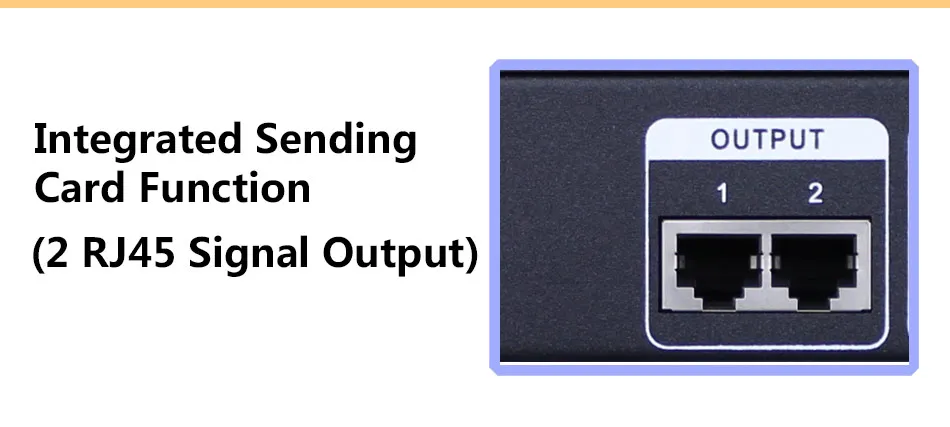

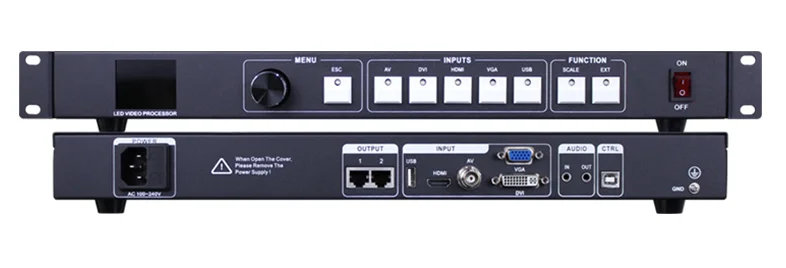

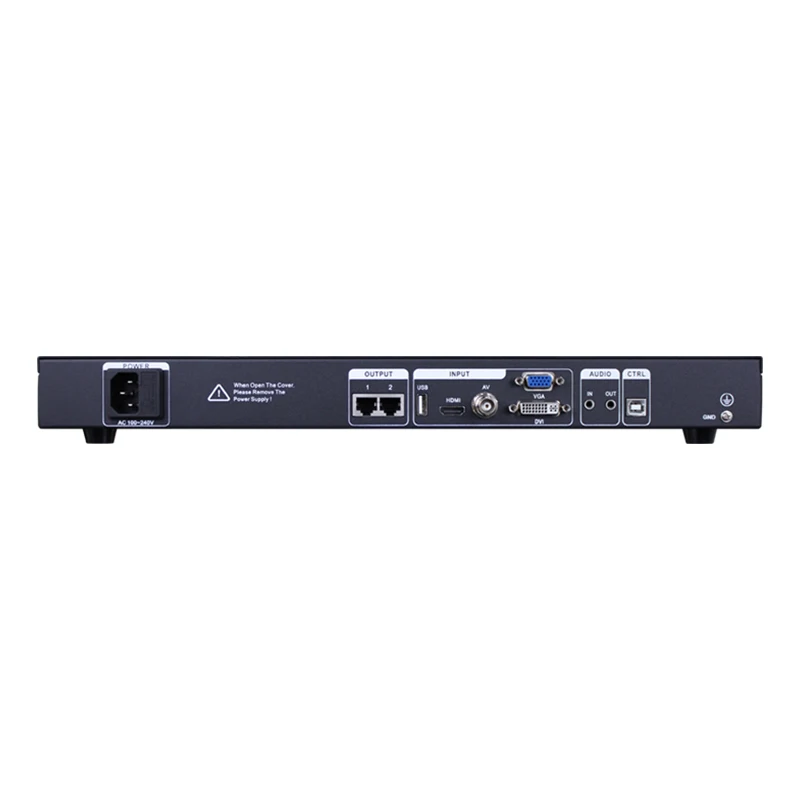

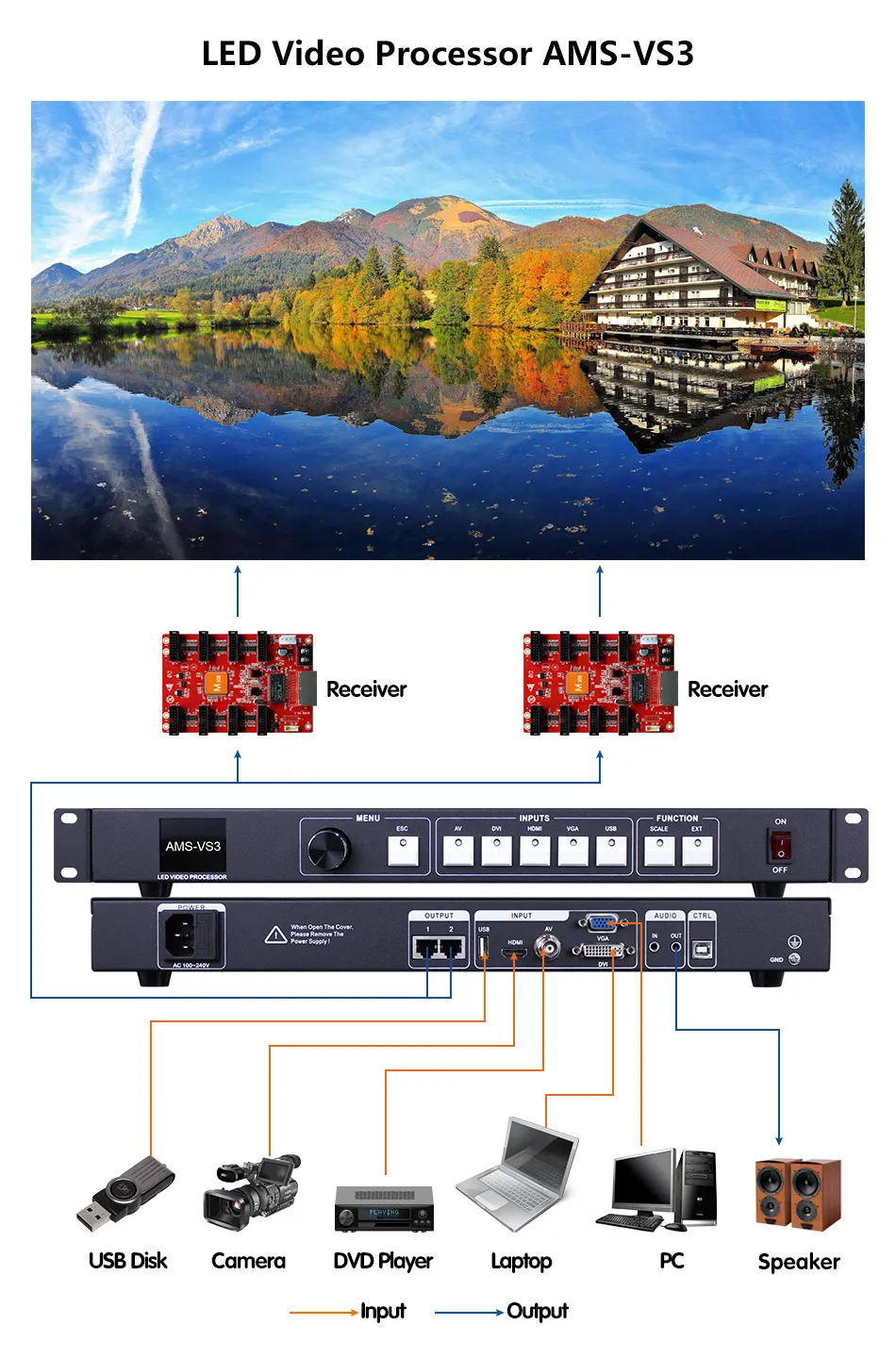

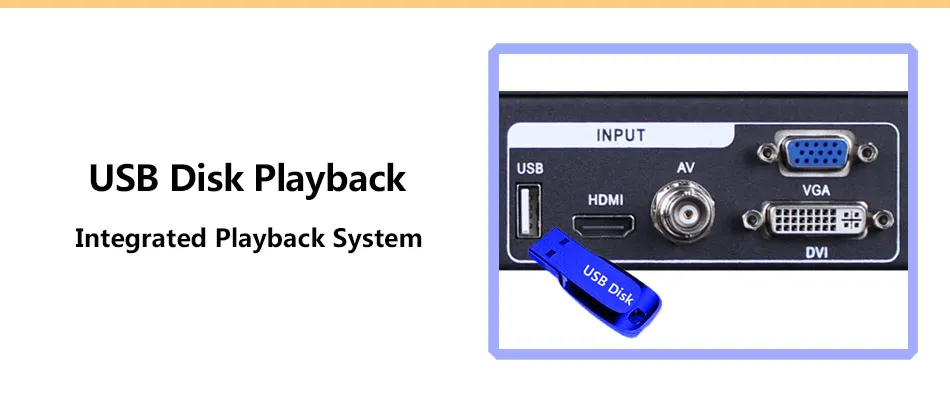

Multiple Video Input -- VS3 video controller uses 5 channels of video input, including 1 composite video AV (CVBS), 1 channel VGA, 1 channel DVI, 1 channel HDMI, 1 channel USB. Basically, the needs for civil and industrial use have been covered. Seamless switching of all video input. Support Audio Sync Output -- VS3 video controller has 1 HDMI channel audio input and 1 independent audio input, 2 channel choose one to output, the audio and video synchronized output. Gigabit Network Port --VS3 video controller range is 1.3 million pixels,has 2 ports, every port each up to 650,000 pixels, maximum width:3840, maximum height:1920; if you used other brand receiving cards, some parameters may be limited; Compatible Receiving Cards --HD/AMS (Recommended);LXY/ CLT (some parameters may be limited); Seamless Switching -- VS3 video controller can also seamlessly switch between any channels switching, According to the demand, any input signal source can be selected to switch on the screen. Mode Save And Recall -- VS3 video controller user presets with 7 groups, mode can store all user default setup parameters, Can achieve rapid field parameter backup and recall function (need to enter menu enable Signal Detection -- VS3 video controller will detect automatically whether the signal input or not when the corresponding inputs connected , if the current channel has signal input, the signal channel led indicator light is normally on and LCD screen will show the signal source type and the resolution ;If the current channel has no signal or signal unnormal, the signal channel led indicator light will flashing, LCD screen shows no signal. Display Test Function -- Through LCD screen interface and knob, can select multiple modes of led display test. USB Play -- Playing video files and picture files in USB storage, supporting video within 720p, compatible with common video formats.

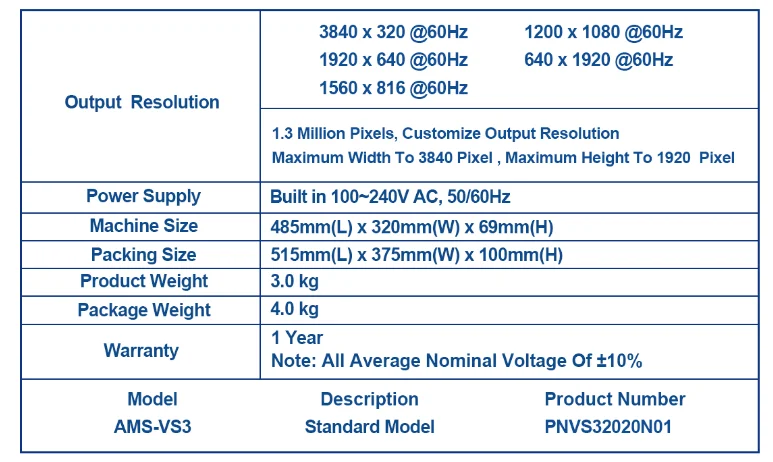

Parameter
