Портативный USB-осциллограф Hantek DSO5102P, 2 канала, 100 МГц, 1 Гвыбс, 40K

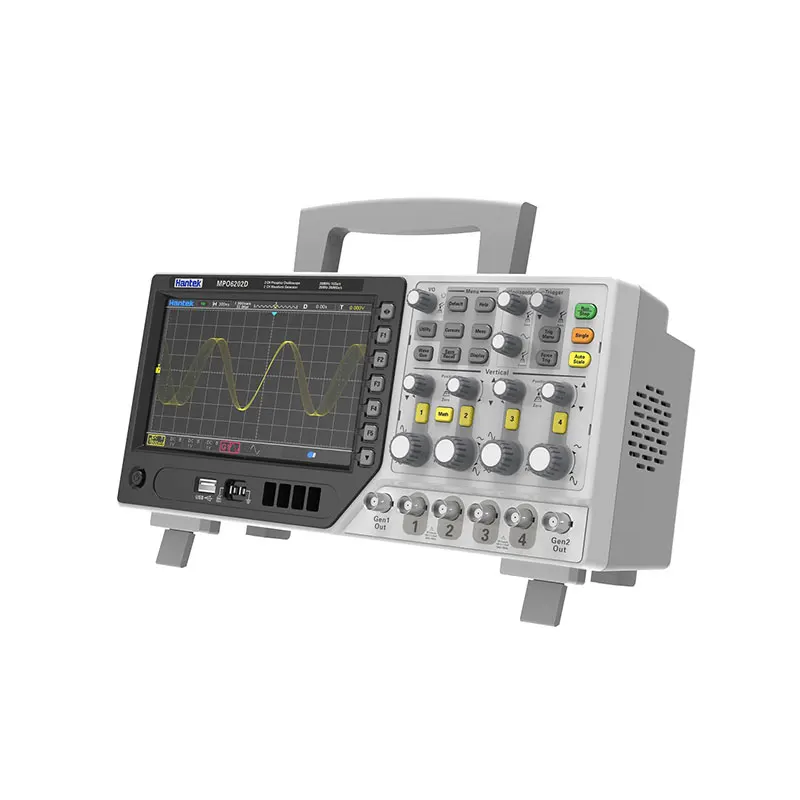

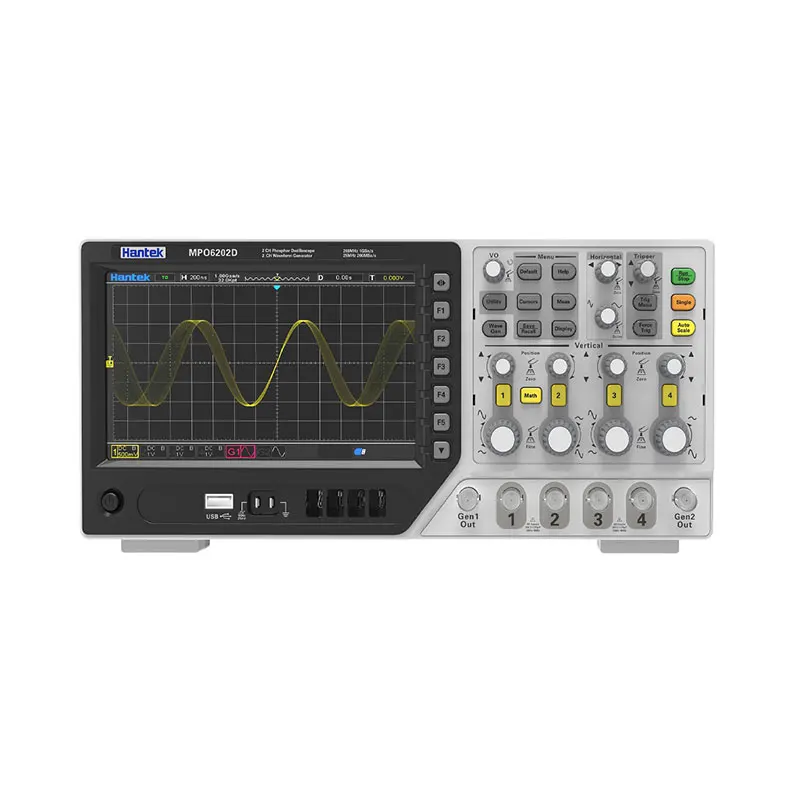

Hantek Oscilloscope Digital 4 Channels Portable Osciloscopio 100Mhz Bandwidth USB Oscilloscopes





★Six in one oscilloscope:4 channels oscilloscope+16 channels logic analyzer+2 channels waveform generator+digital voltmeter+serial protocol analyzer+FFT spectral analysis.

★60 000 wfms/s (dots display)/400,000 wfms/s (dots display quick acquisition mode)waveform capture rate.

★Segmented acquisition function,support to capture up to 80,000 sections.256 grade color display.

★Up to 16 kinds of trigger functions, including 5 kinds of protocol triggers.Supply 5 serial decoding option.

★1 GSa/s real-time sample rate of the analog channels; 64 Mpts standardmemory depth.

★2-channe signal source,13 kinds of waveforms inside,4 sets of arbitrary waveforms,200M sample rate,8Kpts waveform length.

★1 GSa/s real-time sample rate of the digital channels.

★200 MHz, 100 MHz and 80 MHz analog channel bandwidth.

★Low base noise, 500uV/div to 10 V/div ultra-wide vertical dynamic range.

★7 inch WVGA capacitive touch screen,(800*480) TFT , with ultra-wide screen, vivid picture, lowpower consumption and long service life.

★Auto measurement of 42 kinds of waveform parameters (with statistics).

★Bode diagram function(the oscilloscopes with signal source function can use).

★Multiple waveform math operation functions【MATH】.Event search function.

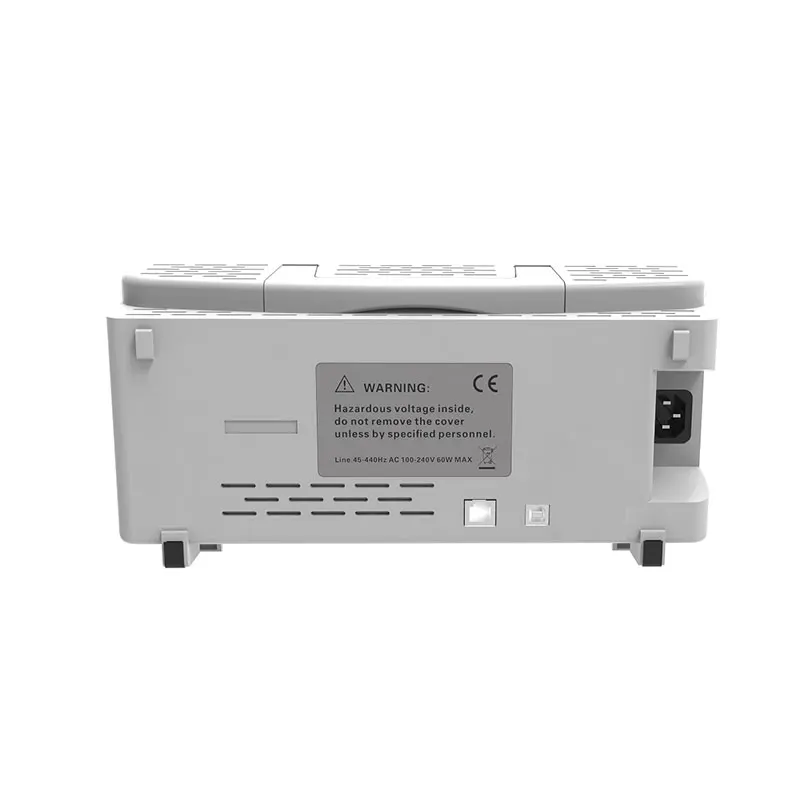

★Standard interfaces: USB Device, USB Host, LAN,Optional interfaces: HDMI ，UART

★Conform to LXI CORE 2011 DEVICE class instrument standards; enable quick,economic and efficient creation and reconfiguration of test system.Supports remote command control.

Oscilloscope function Acquisition Real-time sample rate 1 GSa/s（single channel） 500 MSa/s（two channels） 250 MSa/s（three/four channels）； Note：digital channel 12，34 open at the same time,it is considered as one channel Peak detection Analog channel 4ns Note：digital channels don’t support Average mode Analog channel

All channels reach N time samples at the same time，N can be selected from

2、4、8、16、32、 64、128、256、512 and 1024.

Note：digital channels don’t support High resolution Up to 12bit Note：digital channels don’t support Minimum test pulse width 8ns Memory depth Single channel 64M Two channels 32M Three，four channels 16M Input Channel quantity 4 analog channels  Note：data channels can’t be opened 3 analog channels Note：digital channel LA1/LA2/LA3/LA4/LA1LA2/LA3LA4 2 analog channels Note：digital channels infinitize 1 analog channel Note：digital channels infinitize 0 analog channel Note：digital channels infinitize Input coupling DC、AC or GND Note：digital channels don’t support Input impedance，DC coupling Analog channel 25pF±3 pF，1MΩ±2% Digital channel (300KΩ±2%) ，(8 pF±3 pF) Supported probe attenuation  factor Analog channel 1X、10X、100X、1000X Voltage classes 300V CAT II Maximum input voltage Analog channel 300VRMS (10X) Digital channel -25V~25V Horizontal Waveform interpolation (sin x)/x Maximum record length Single channel maximum 64M Two channels maximum32M three/four channels maximum 16M Horizontal scale range DSO6084 DSO6104 2ns/div~100s/div  1， 2， 5 step by step Time base mode Y-T、X-Y、Roll  X-Y number Channel 1,2 1 XY channel、channel3 4 1 XY channel Zero offset ±0.5 div× minimum time base gear
