Product Description:

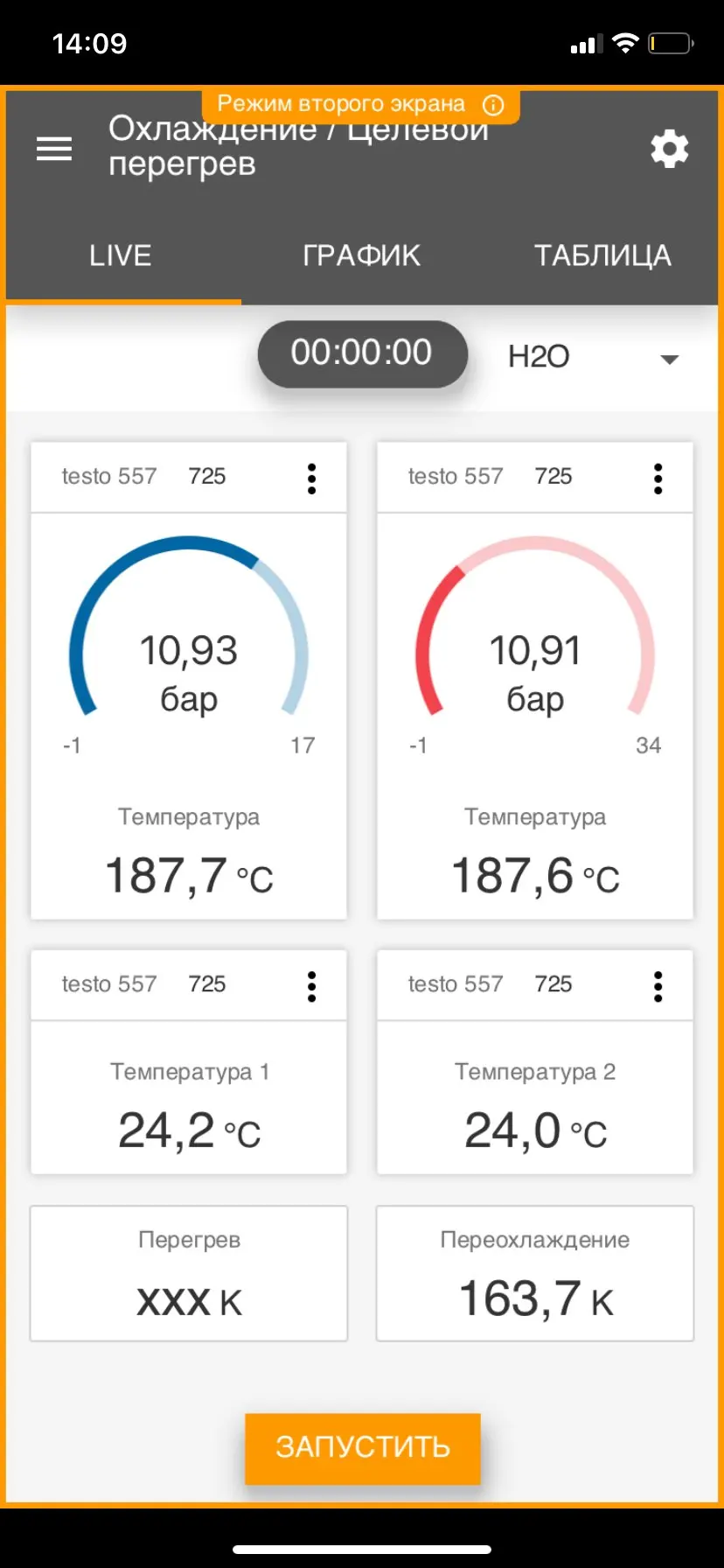

The testo 557 digital manifold has a 4-way valve block, a large backlit display, and a sight glass. Two NTC thermistor clamp probes provide superior accuracy for simultaneous, real-time superheat and subcooling readings. An external vacuum probe provides fast and reliable evacuation of the system. The wireless Bluetooth / app allows you to view measurement data on your smartphone or tablet, enabling you to quickly and conveniently complete and document your job. Then, be able to finalize documentation and send reports and invoice via email, right from the job site. In addition to the 60 refrigerant profiles stored in the instrument, the app can be used to download new refrigerants from the Internet, directly to the digital manifold.
Function:
Measures high side / low side pressures and temperatures 4-way valve block with 3/8 in. and 1/4 in. ports External vacuum probe App integration via Bluetooth (65-foot range) Calculates and displays superheat and subcooling temperatures

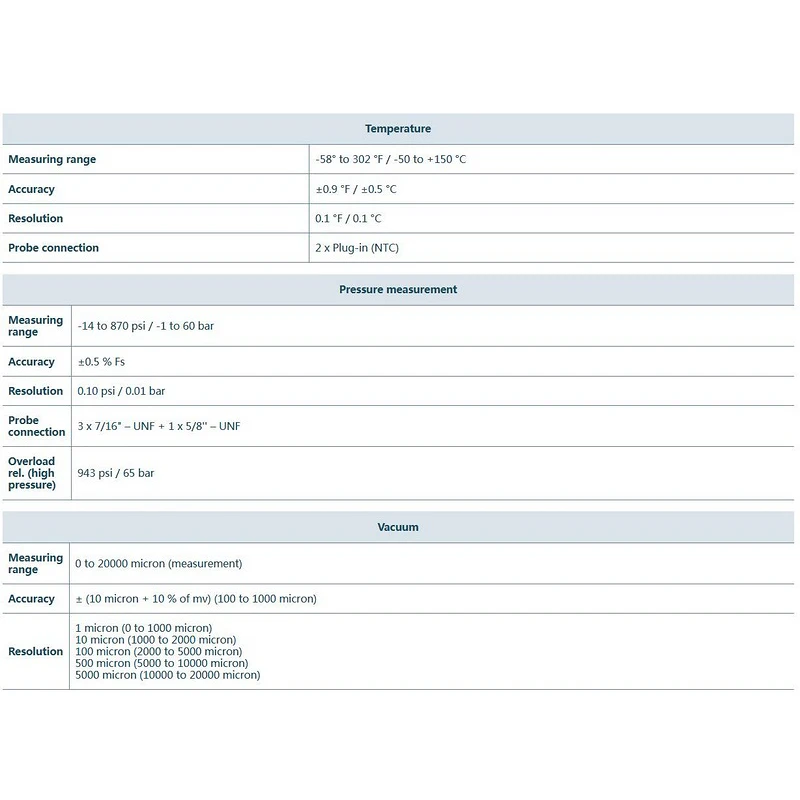

Measure Information:
Temperature
Measuring range
-58° to 302 °F / -50 to +150 °C
Accuracy
±0.9 °F / ±0.5 °C
Resolution
0.1 °F / 0.1 °C
Probe connection
2 x Plug-in (NTC)
Pressure measurement
Measuring range
-14 to 870 psi / -1 to 60 bar
Accuracy
±0.5 % Fs
Resolution
0.10 psi / 0.01 bar
Probe connection
3 x 7/16" – UNF + 1 x 5/8'' – UNF
Overload rel. (high pressure)
943 psi / 65 bar
Vacuum
Measuring range
0 to 20000 micron (measurement)
Accuracy
± (10 micron + 10 % of mv) (100 to 1000 micron)
Resolution
1 micron (0 to 1000 micron)
10 micron (1000 to 2000 micron)
100 micron (2000 to 5000 micron)
500 micron (5000 to 10000 micron)
5000 micron (10000 to 20000 micron)
General technical data
Dimensions
9 x 5 x 3 in. / 220 x 125 x 70 mm
Operating temperature
-4° to 122 °F / -20 to +50 °C
Protection class
IP42
Warranty
2 years
Battery life
250 h (without illumination, without Bluetooth®, without vacuum probe)
Pressure media
CFC
Refrigerants in instrument
60 profiles:; R11; R12; R123; R1234yf; R1234ze; R125; R13B1; R134a; R14; R142B; R152A; R161; R22; R227; R23; R290; R32; R401A; R401B; R401C; R402A; R402B; R404A; R406A; R407A; R407B; R407C; R407D; R407F; R408A; R409A; R410A; Ra11A; R412A; R413A; R414B; R416A; R417A; R420A; R421A; R421B; R422A; R422B; R422C; R422D; R424A; R426A; R427A; R434A; R437A; R438A; R502; R503; R507; R508A; R508B; R600; R600a; R744 (CO₂); R718 (H₂O); update via App
System requirements
requires iOS 7.1 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Storage temperature
-4° to 140 °F / -20 to +60 °C
Weight
42 oz. / 1200 g
Product show:

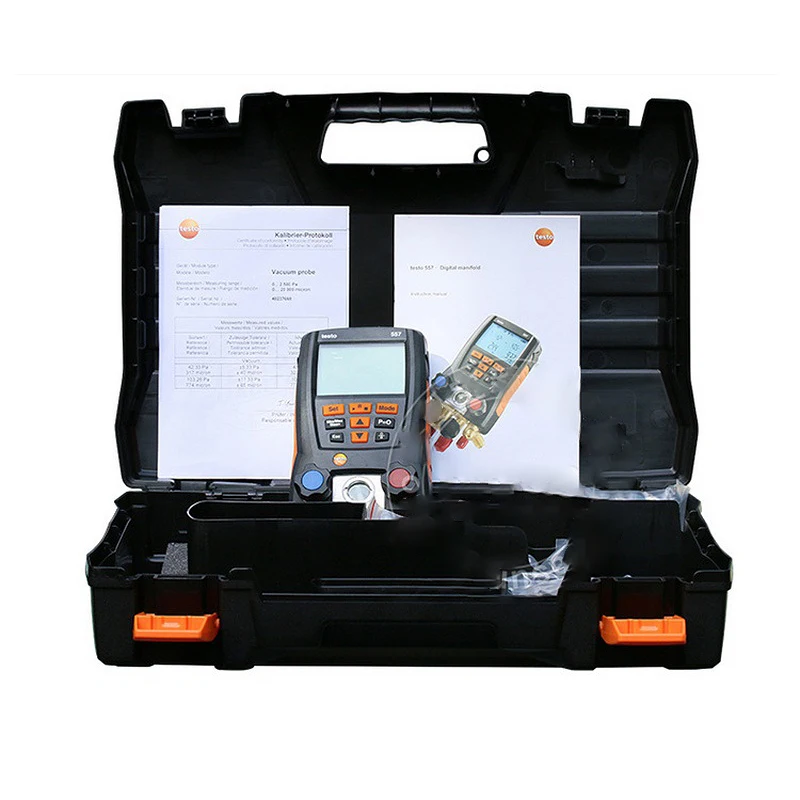

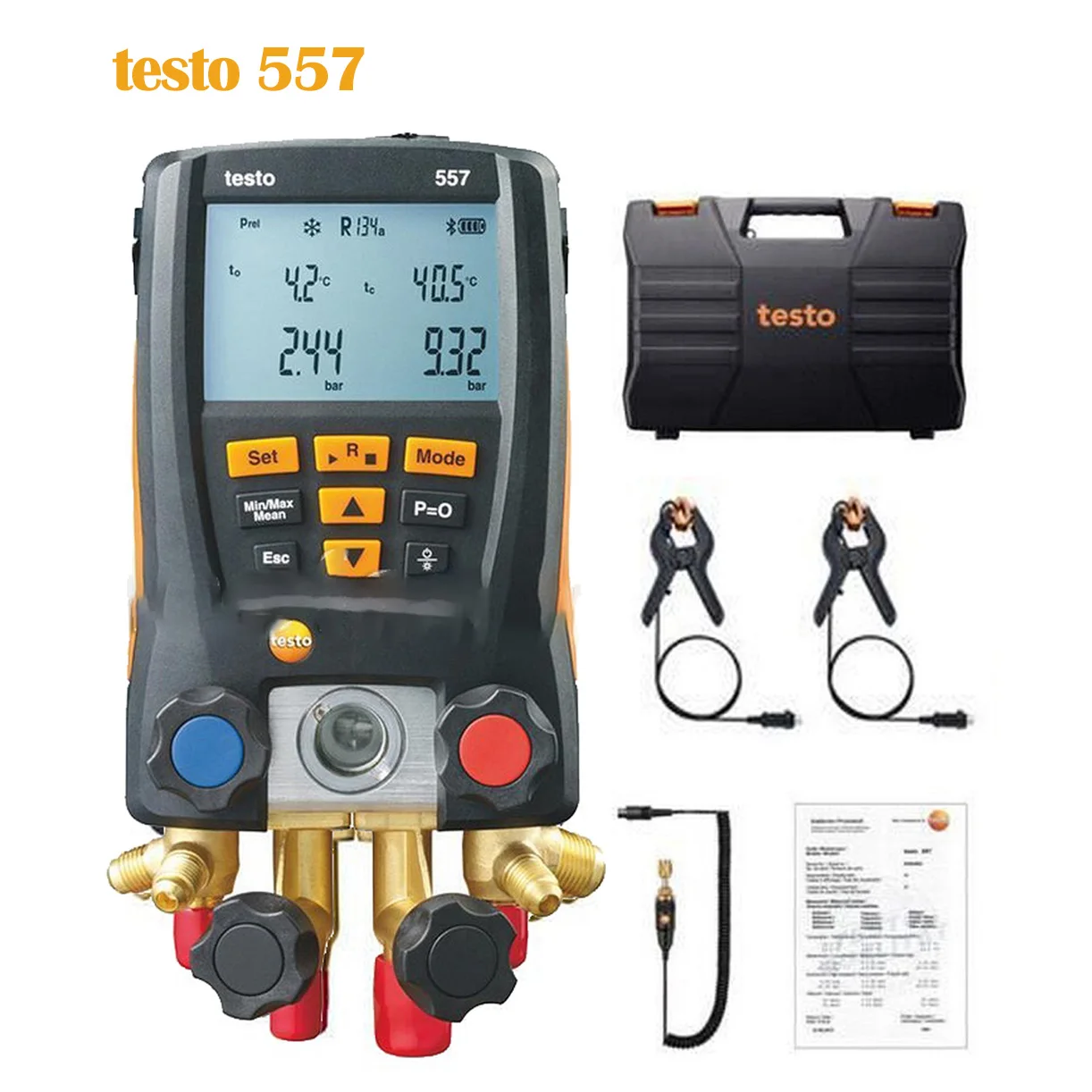

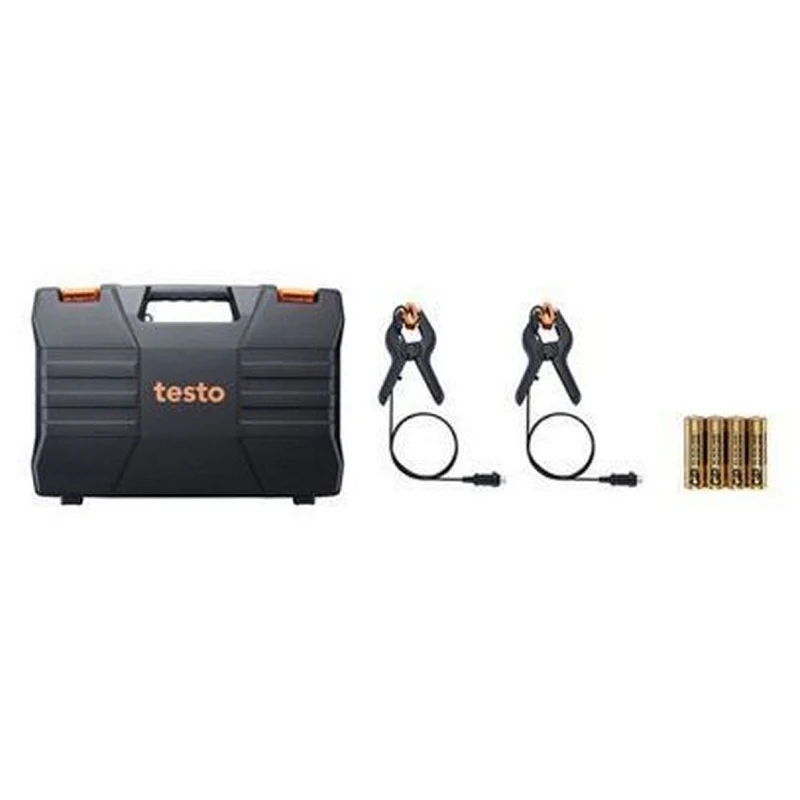

Package List:1xtesto 557 digital manifold,
2x NTC temperature clamp probes,
1xexternal vacuum probe,
1xbatteries,
1xcase,
1xcertificate of conformity,
1xuser's manual
Package List:
1xtesto 557 digital manifold,
2x NTC temperature clamp probes,
1xexternal vacuum probe,
1xbatteries,
1xcase,
1xcertificate of conformity,
1xuser's manual
Отзывы покупателей
Страна: RU Ships From: China Доставка: Standard Shipping 14.09.2022

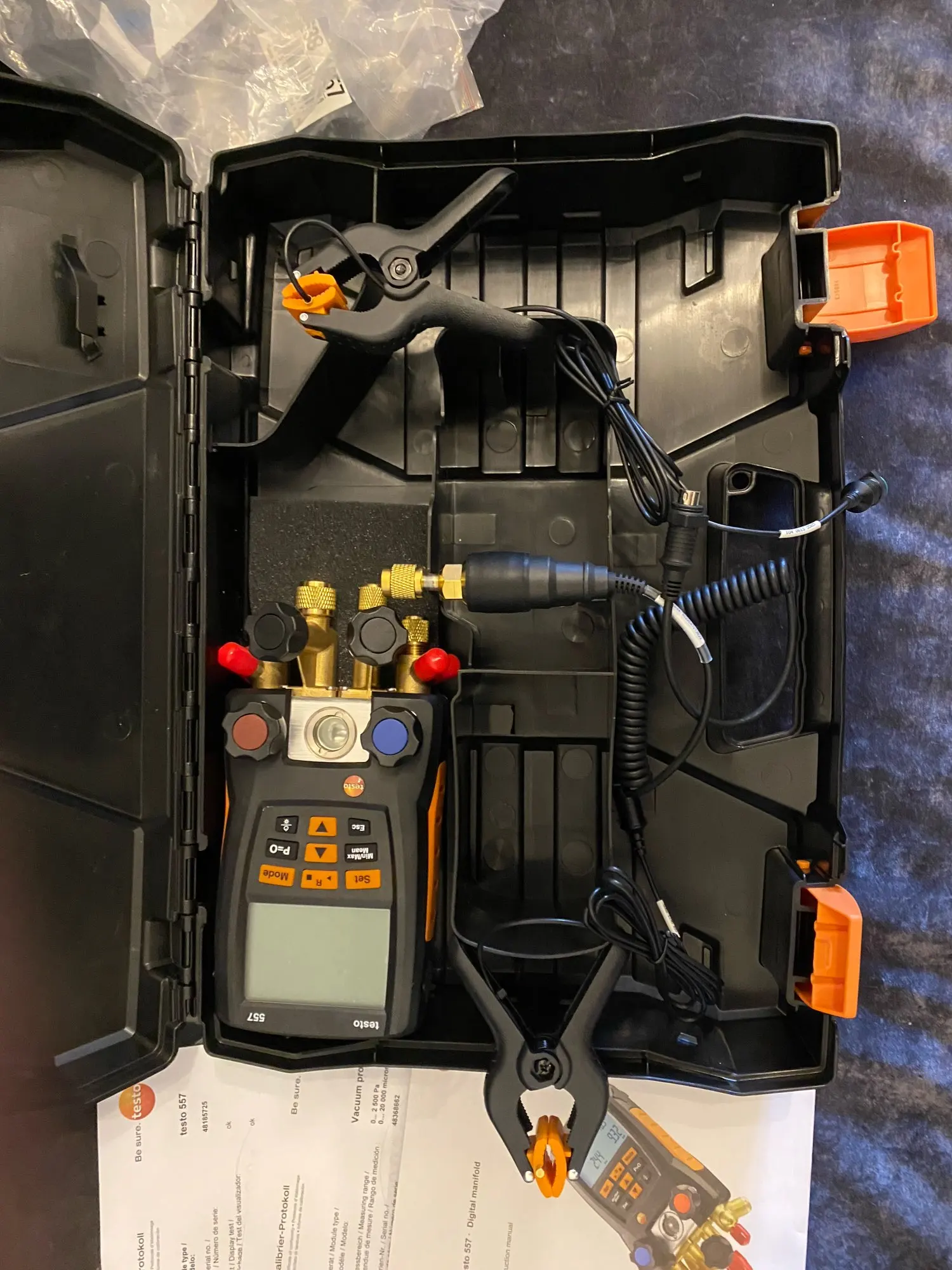

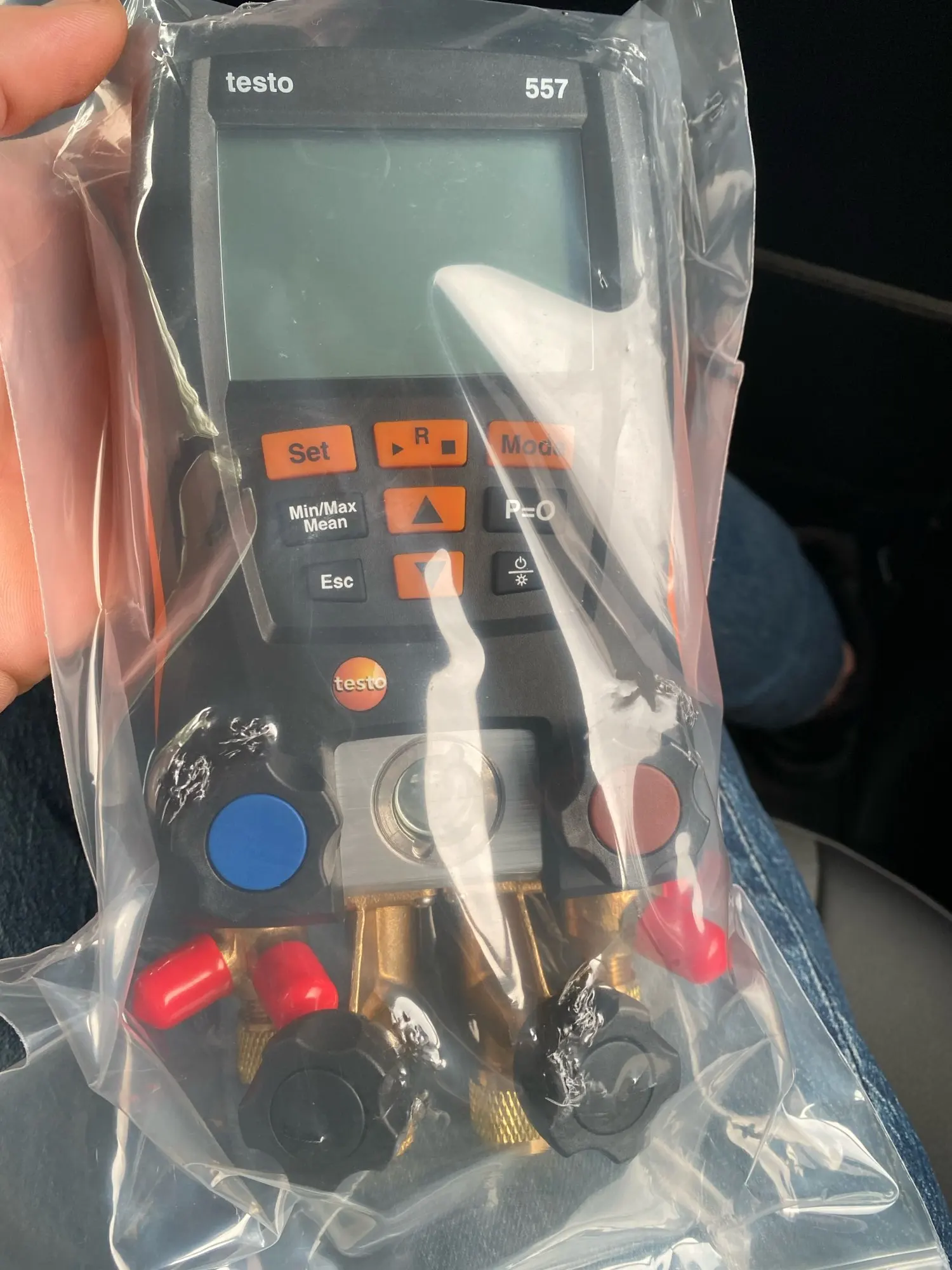

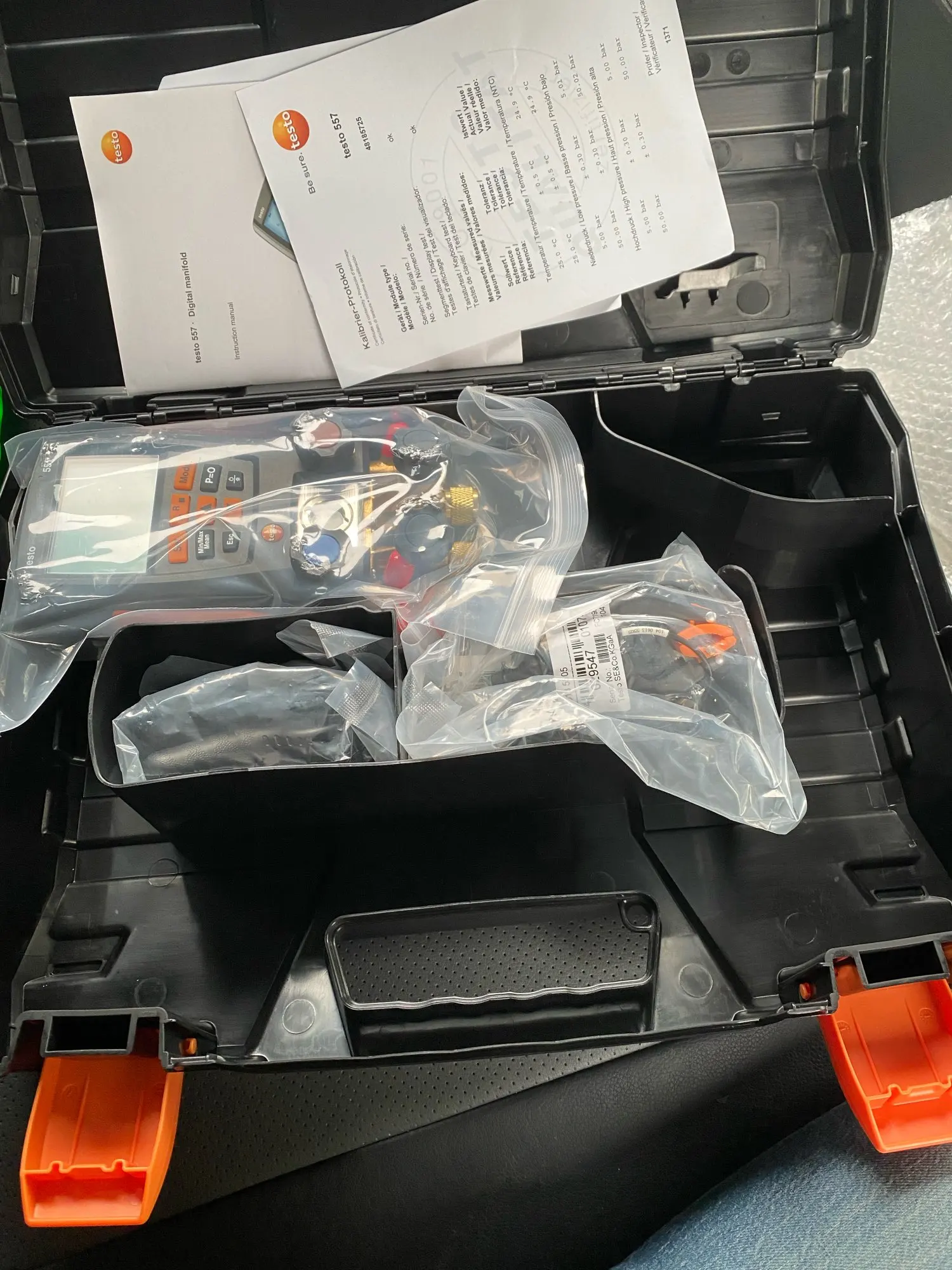

Продавец отличный, отправил быстро, хорошо упаковал, всё пришло целое (хоть и долго шло) на смс отвечает в течении дня, прибор оригинальный, единственное не все батарейки были в комплекте, но это мелочи.
