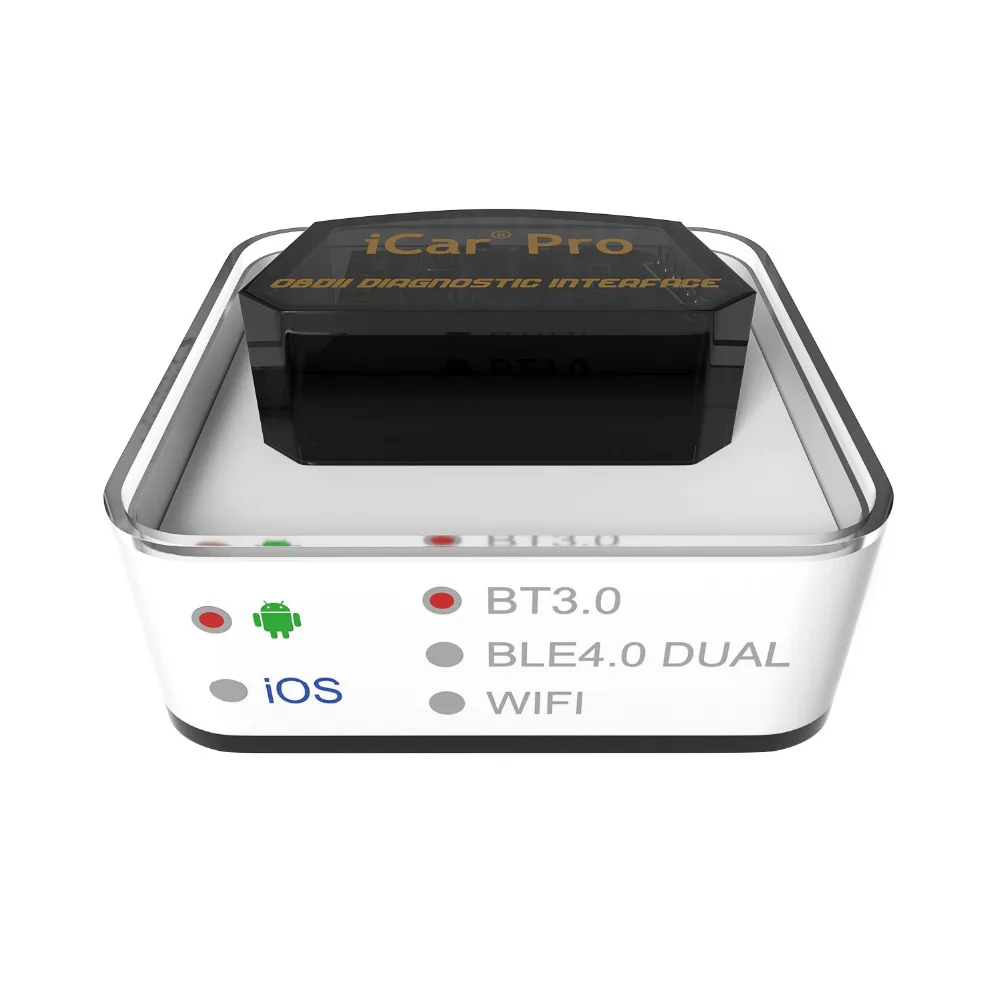

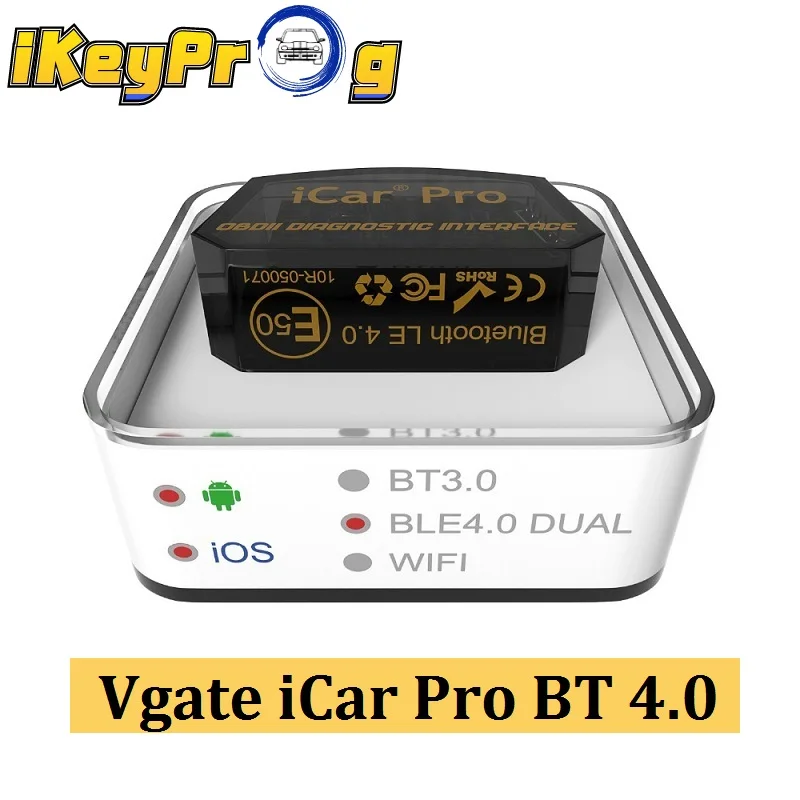

Vgate iCar Pro ELM327 Bluetooth/WIFI OBD2 OBDII EOBD Car Diagnostic Tool Elm 327 iCar Pro Scanner For Android/IOS
Vgate iCar Bluetooth 4.0/3.0/wifi OBD II adpater is a high-quality automotive scanning tool.
vgate iCar por bluetooth 3.0/4.0/wifi elm327 obd2 scanner Vehicle Coverage:
Works on all OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles (Petrol cars from 2001 and diesel cars from 2003/2004 in Europe)
obd2 scanner elm327 bluetooth/wifiIcar Pro Functions: Read both nonspecific and manufacturer specific trouble codes. Fast ARM processor allowing up to 30 PID's per second.
Read and delete fault codes, Turn off MIL (check engine light). view freeze frame data & I/M readiness monitors. Save money! Read real-time ECU sensor data (Engine RPM. Fuel System status, Fuel Pressure. Oxygen sensor voltages and many readable parameters on your vehicle). Prepare for emission testing. Vgate iCar por elm327 bluetooth/wifi Features: CLEAR CHECK ENGINE LIGHT - This iCar Pro code reader will help you save money and accurately diagnose check engine light problem. Very easy to use.
EASY FITMENT - The majority of cars made in the past 2 decades are fitted with an OBD2 diagnostic port, simply find the port and plug the iCar Pro in.
FIT AND FORGET - It really is possible to fit and forget beacuse it's micro size and unique power saving functionality that protects your battery WORKS WITH HUNDREDS OF APPS - The Vgate iCar Pro Bluetooth Low Energy device works with the most popular OBD apps. Please find download instruction for Android device in product description.

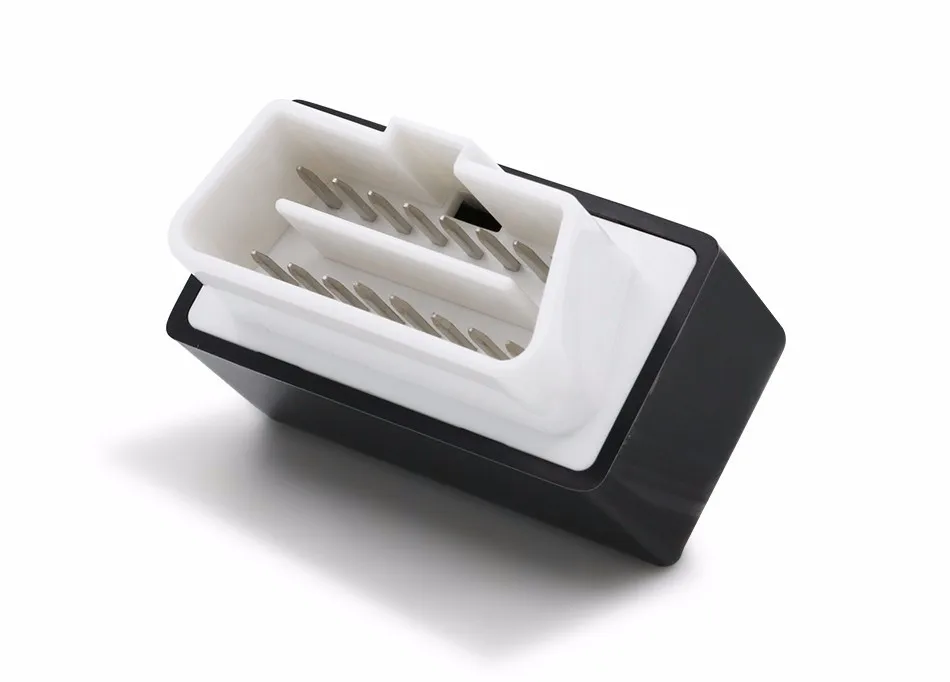

Tips before your purchase: For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant. To be sure your vehicle complies with OBD-II, look for a sticker on the vehicle under the hood in the engine compartment that clearly states "OBD II compliant or certified".
Vgate iCar pro bluetooth/wifi elm327 OBD-II protocols supported: SAE J1850 PWM(41.6 Kbaud)
SAE J1850 VPW(10.4 Kbaud)
ISO9141-2(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)
SAE J1939 CAN(29bit ID,250* Kbaud)
USER1 CAN(11*bit ID,125* Kbaud)
USER2 CAN(11*bit ID,50* kbaud)

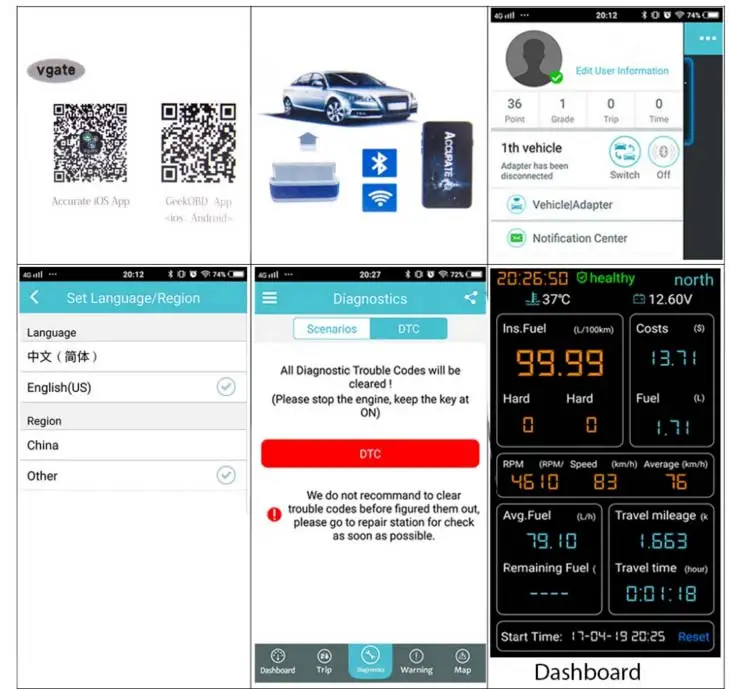

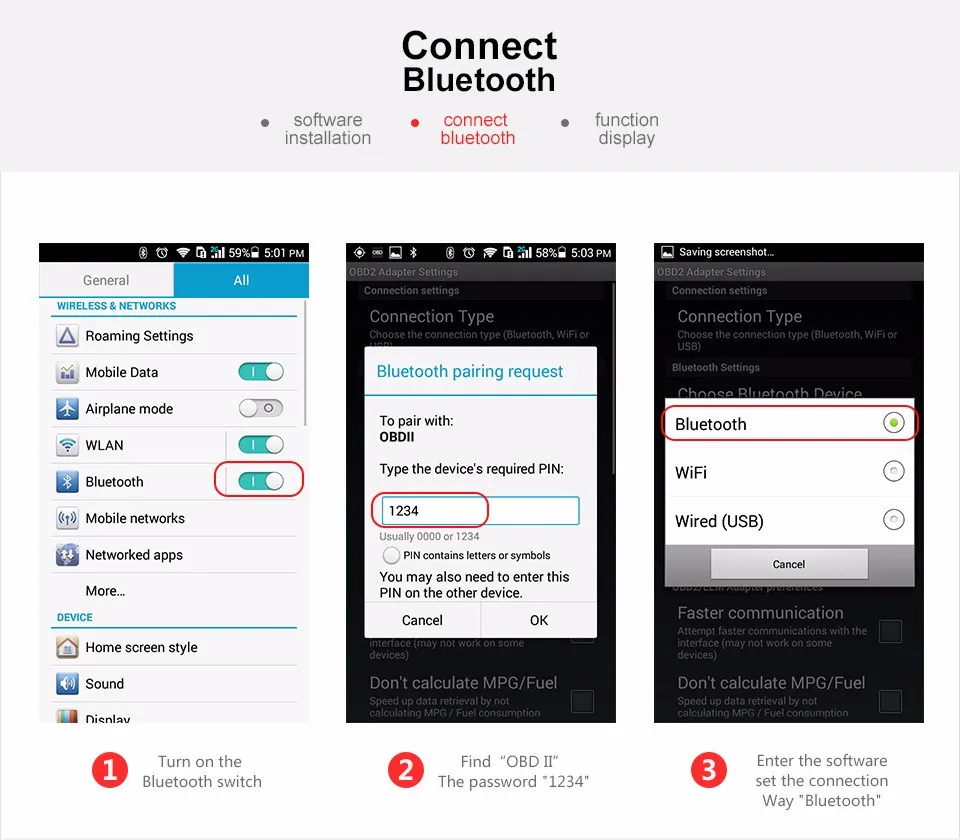

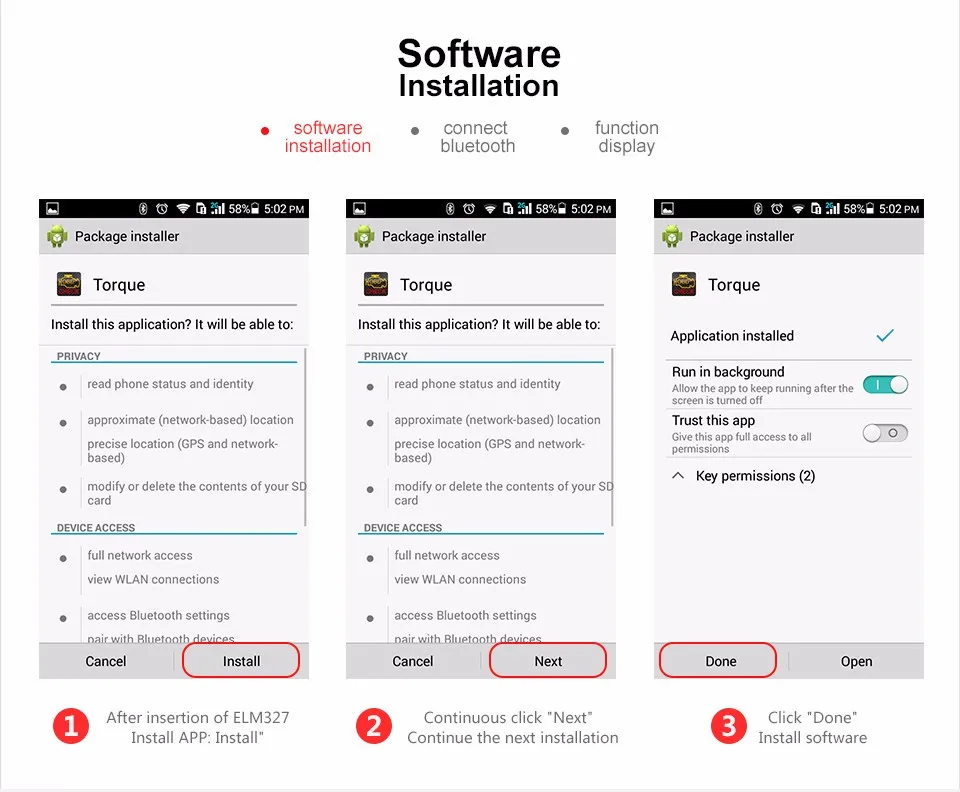

How to setup Bluetooth/wifi pairing: vgate icar pro elm327 BT4.0/3.0/wifi model version Home screen
Go to setting page
Select V-LINK Default password is "1234"
Device paired

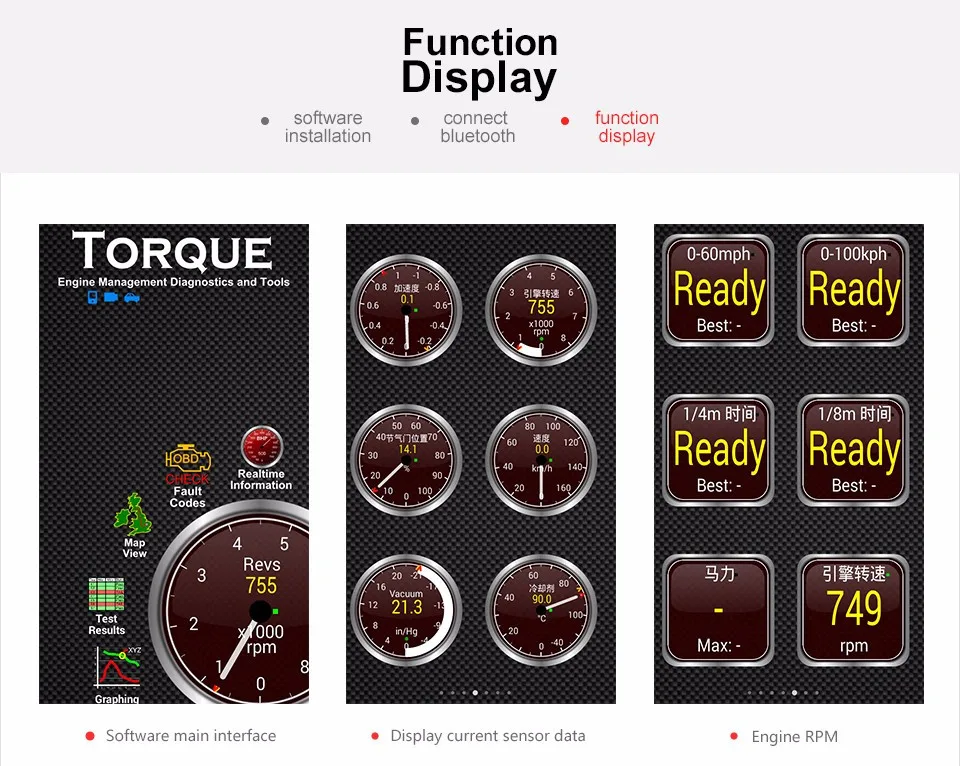

Run Torque app
Go to Torque app OBD II adapter setting
Choose connecion type>Bluetooth
Choose Bluetooth device>V-LINK
Exit Torque app completely
RunTorque app
Connected Vgate iCAR Pro ELM327 OBD2 Scanner Setting guide:
Vgate iCar pro Bluetooth3.0/4.0/wifiSpecification: Supply Voltage:11.5V-15V
Supply Current:<200Ma
Standby Current:<30Ma ( TONWON Pro =<3Ma )
Operating Temperature:-40℃--85℃
Operating Humidity:5%--95%RH Non-Dewfall

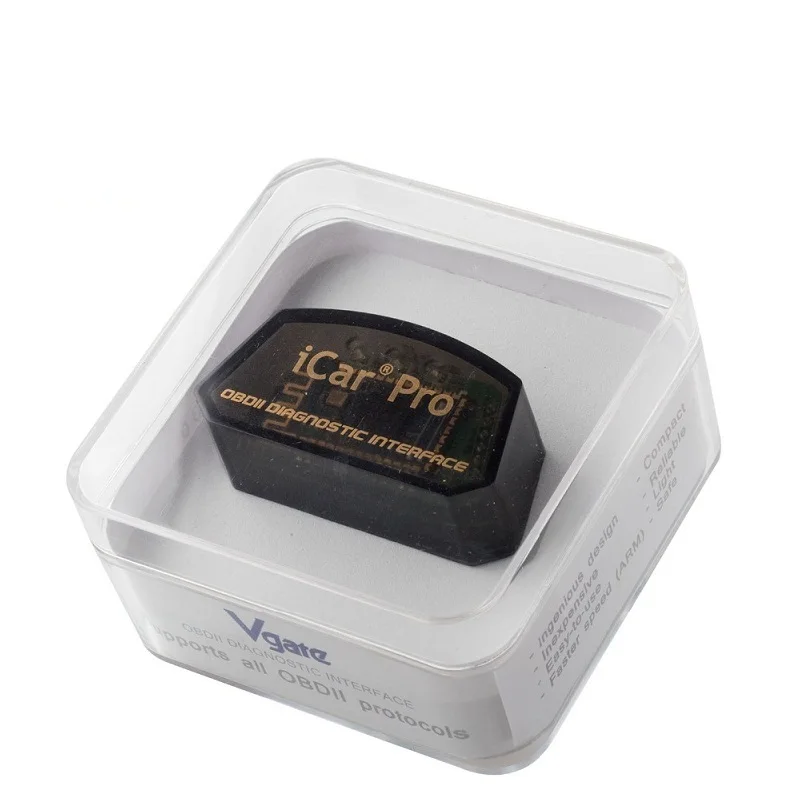

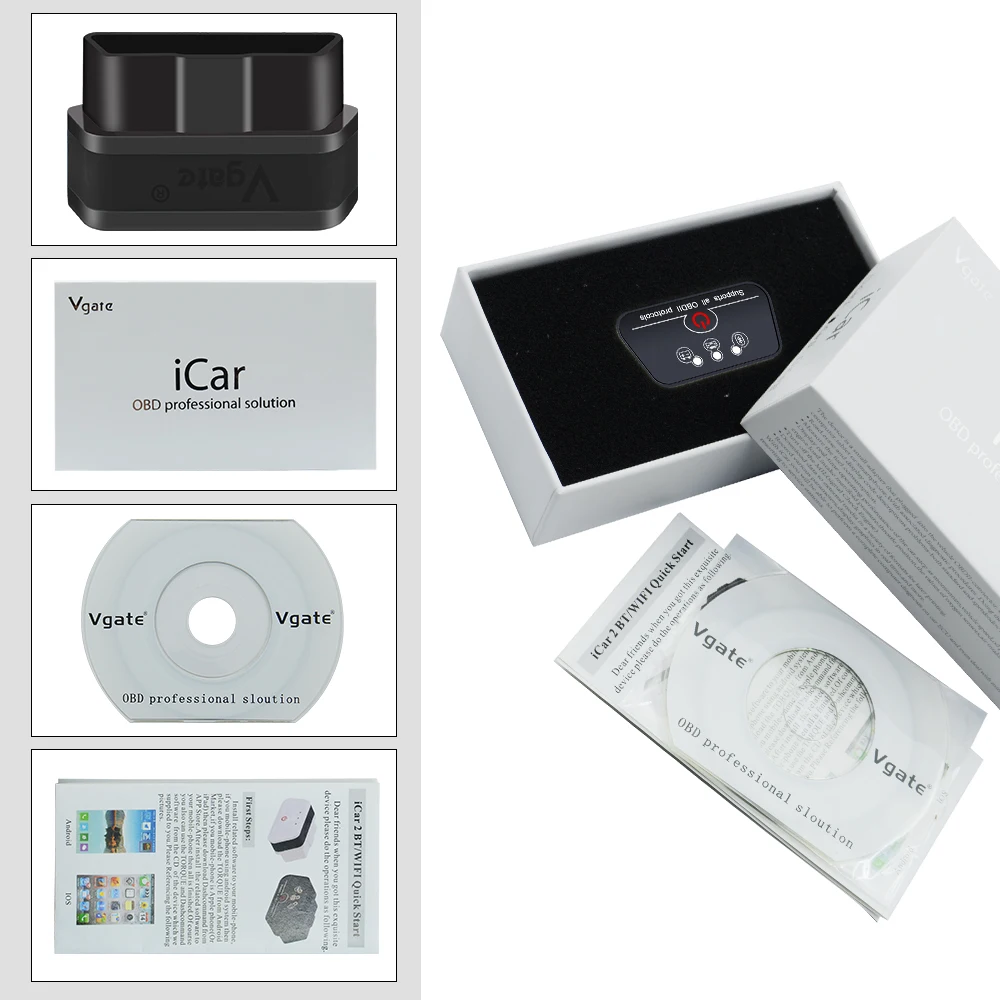

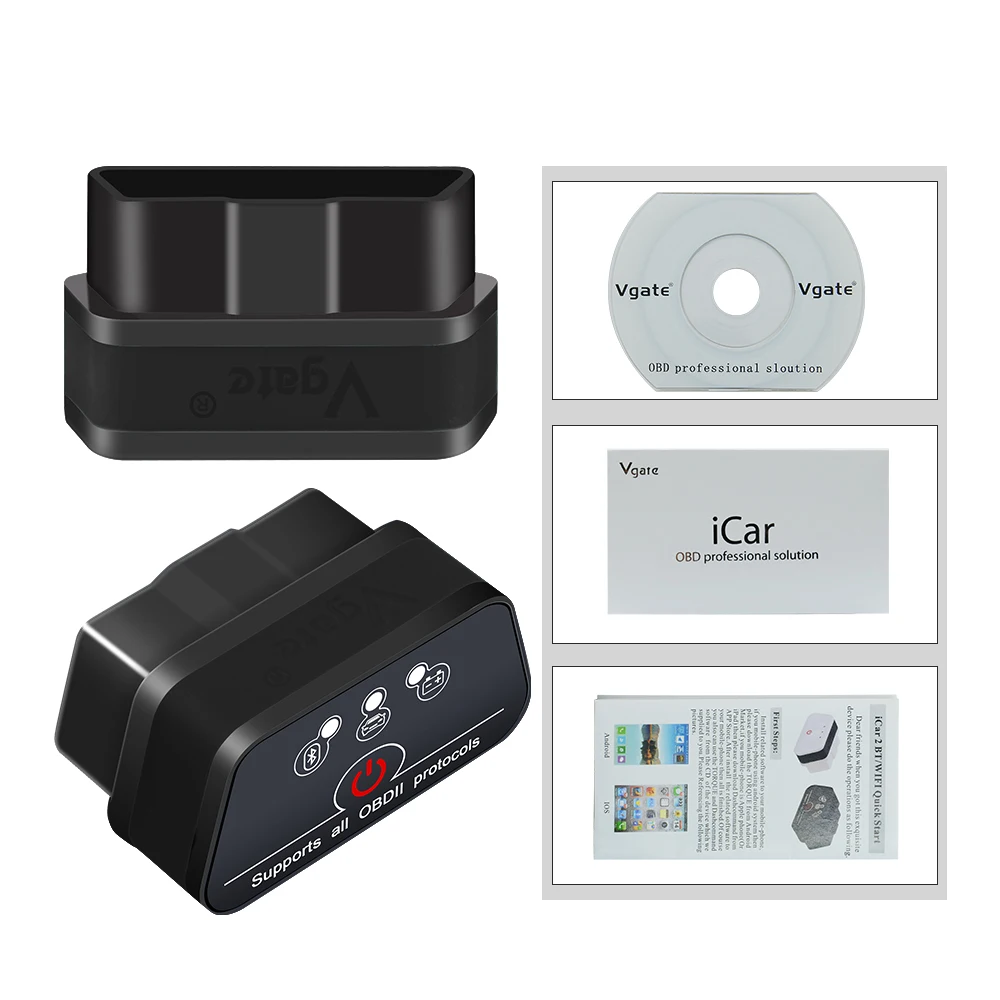

wifi Elm327 Bluetooth3.0/4.0 vgate iCar pro Package Includes: 1pc x Vgate iCar Pro Bluetooth 4.0/3.0 wifi OBDII adapter

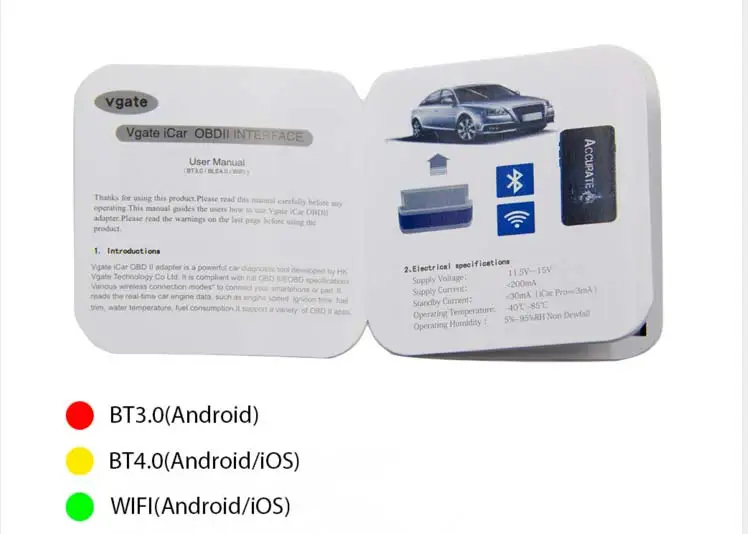

1pc x User manual
1. 100% original, and firmware version is V2.1 support all standard OBD2 protocols.
2.Wifi versionSupport IOS/Anroid/Windows system.
3. Can do most of OBDIIgasoline and diesel 12V cars,but can't support all OBDII cars.

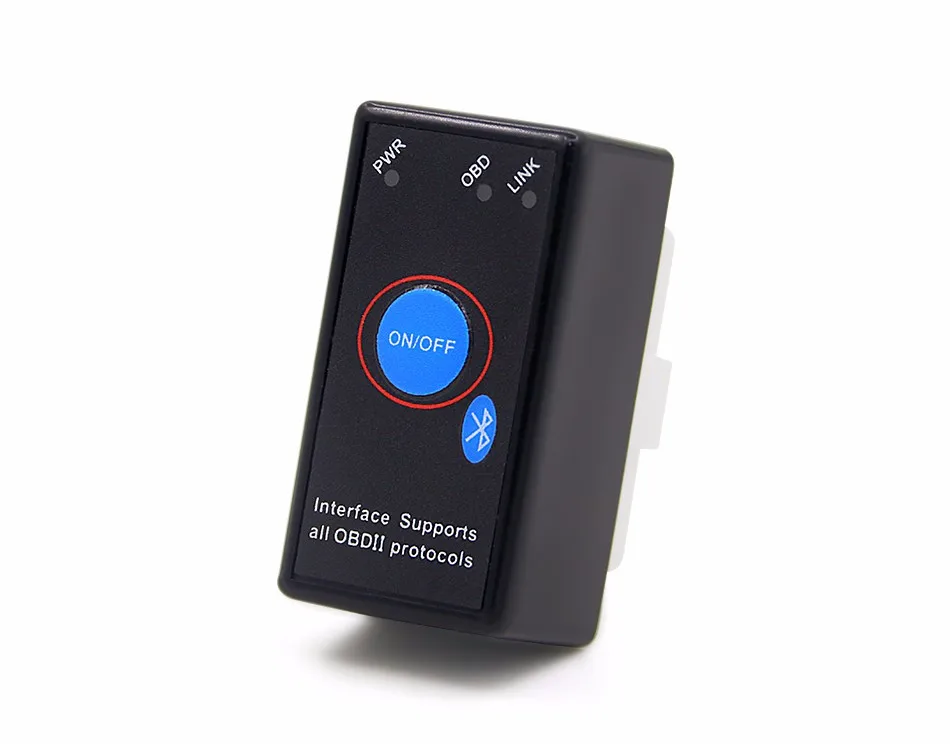

4. Thepower buttonis only used for reset the device , not have the function of turn on or turn off.
5. When stop communication, wait half an hour, auto sleep

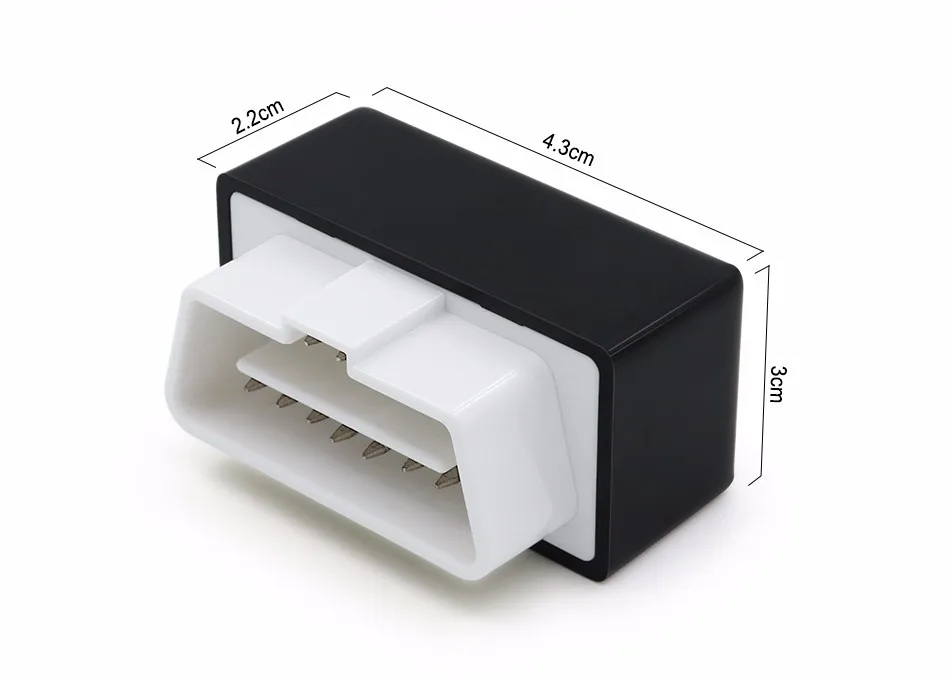

6. Better than ELM327 V1.5, Small size, compact structure, more stable connection and durable
7. Providemulti-languageoptional.

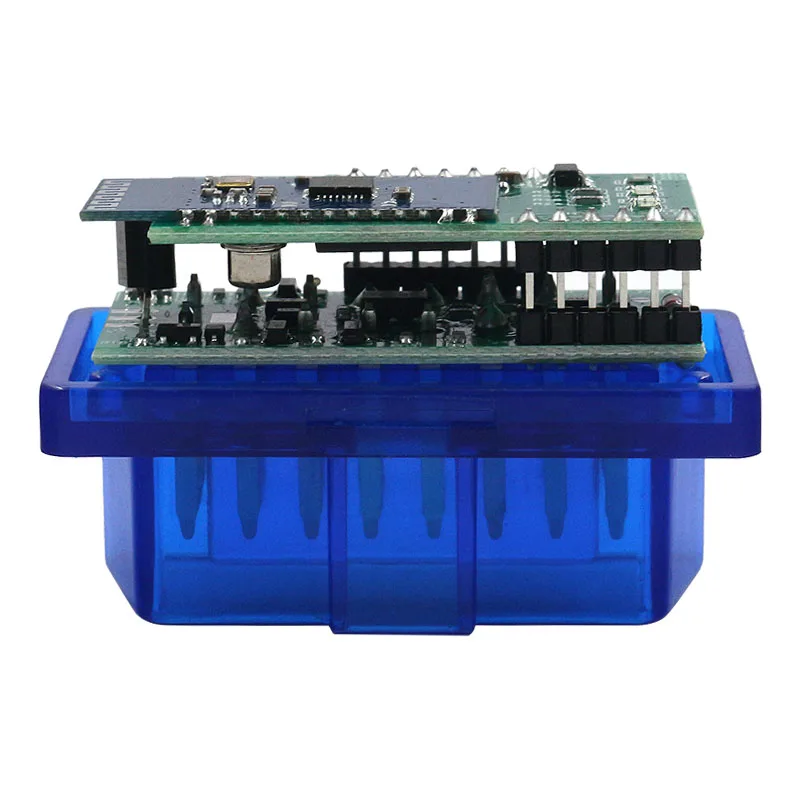

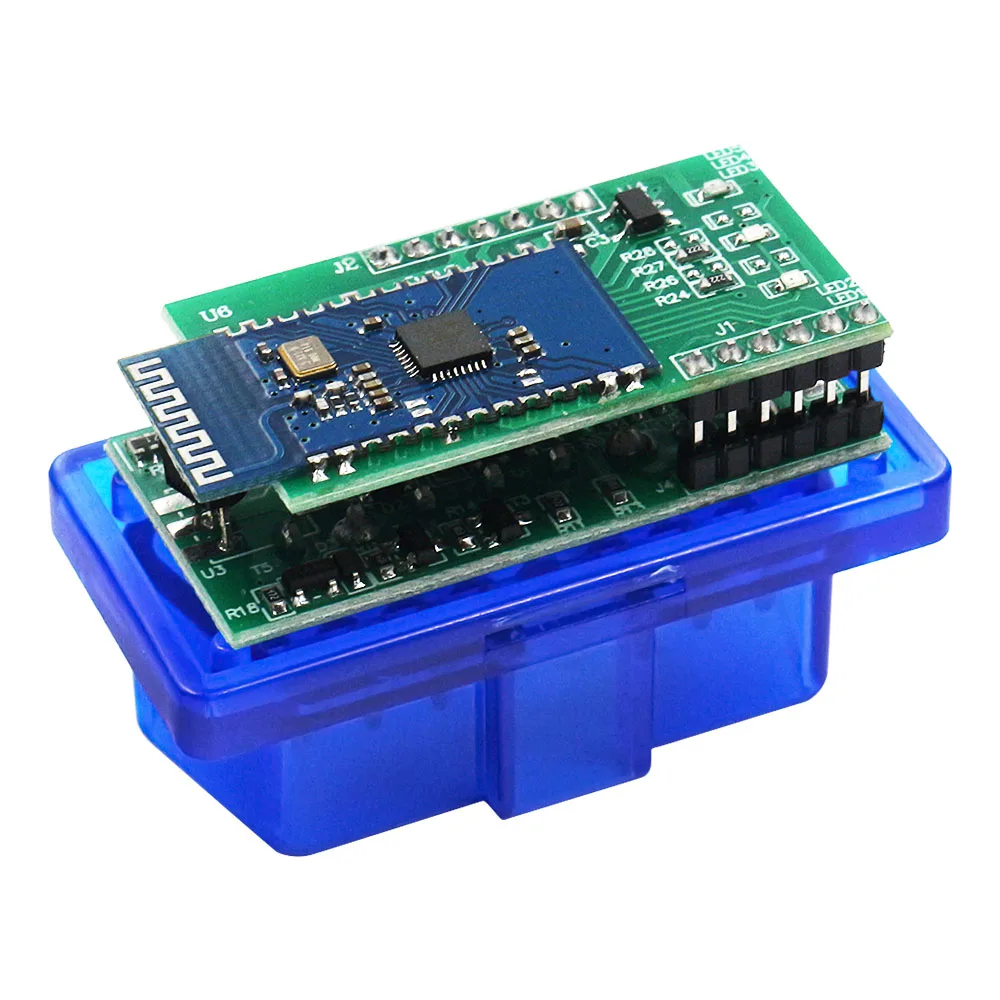

8. The adapter uses the fastest and most reliableARM chips
9.Bluetooth 5~10 meter, Wireless (wifi version) 10~20 meter
10.The iCar 2 bluetooth Only support android system up than 4.3 version , and bluetooth 3.0 or over version phone.
Support car models:
ICAR2 Functions:

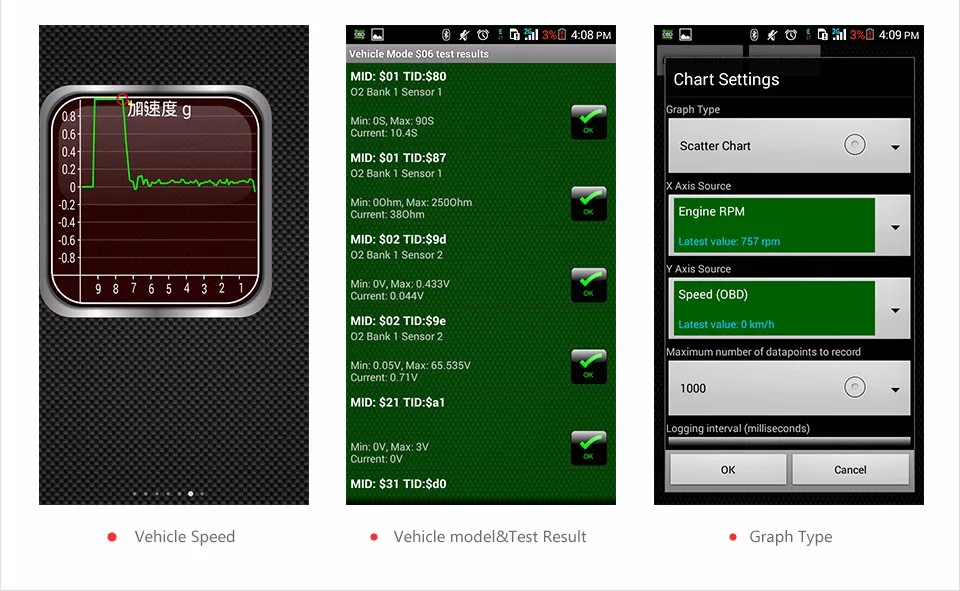

Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Features:
