-- Description --
This flexible drive shaft kit is usually used in brushless electric RC boat.
This flexi-cable uses spiral-wound steel that is soldered into a stub shaft to which the propeller is fixed.
They are easy to install,robust and allow the drive to be installed parallel to the waterline.
There are two self-lubricating bearing sleeves in the sleeve of the holder to ensure that the shaft works smoothly and stably.
The shaft sleeve angle is adjustable.
Tips:
Right-Hand: which rotates clockwise as viewed from the stern when in forward gear
Left-Hand: which rotates counter clockwise as viewed from the stern when in forward gear
-- Specification & Features --

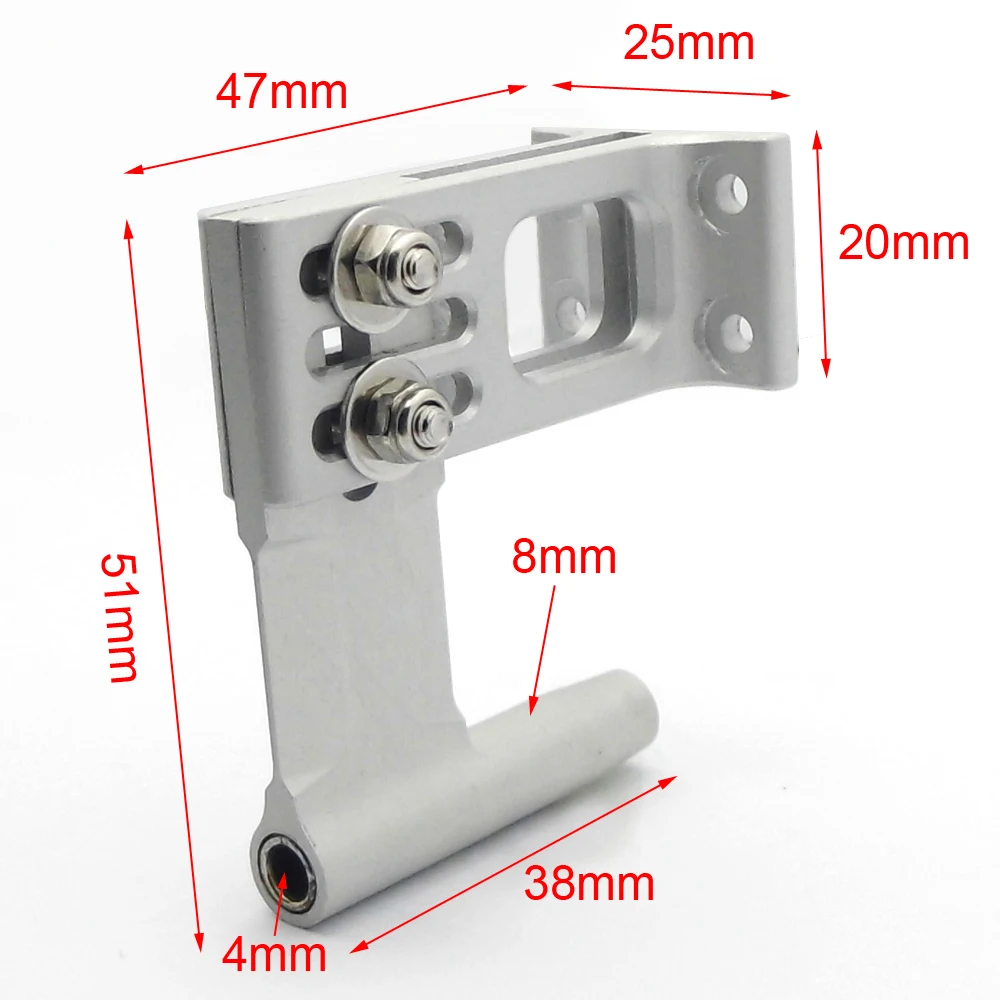

* Shaft holder material: aluminum alloy
* Left-hand / Right-hand Optional
* Flexible shaft diameter: 4mm
* Flexible shaft length( Total ): 350mm/400mm optional
* Copper tube length: 300mm
* PTFE tube length: 310mm
* Hard shaft end length 75mm (with thread)
* Thread length: 10mm
* Thread: M4

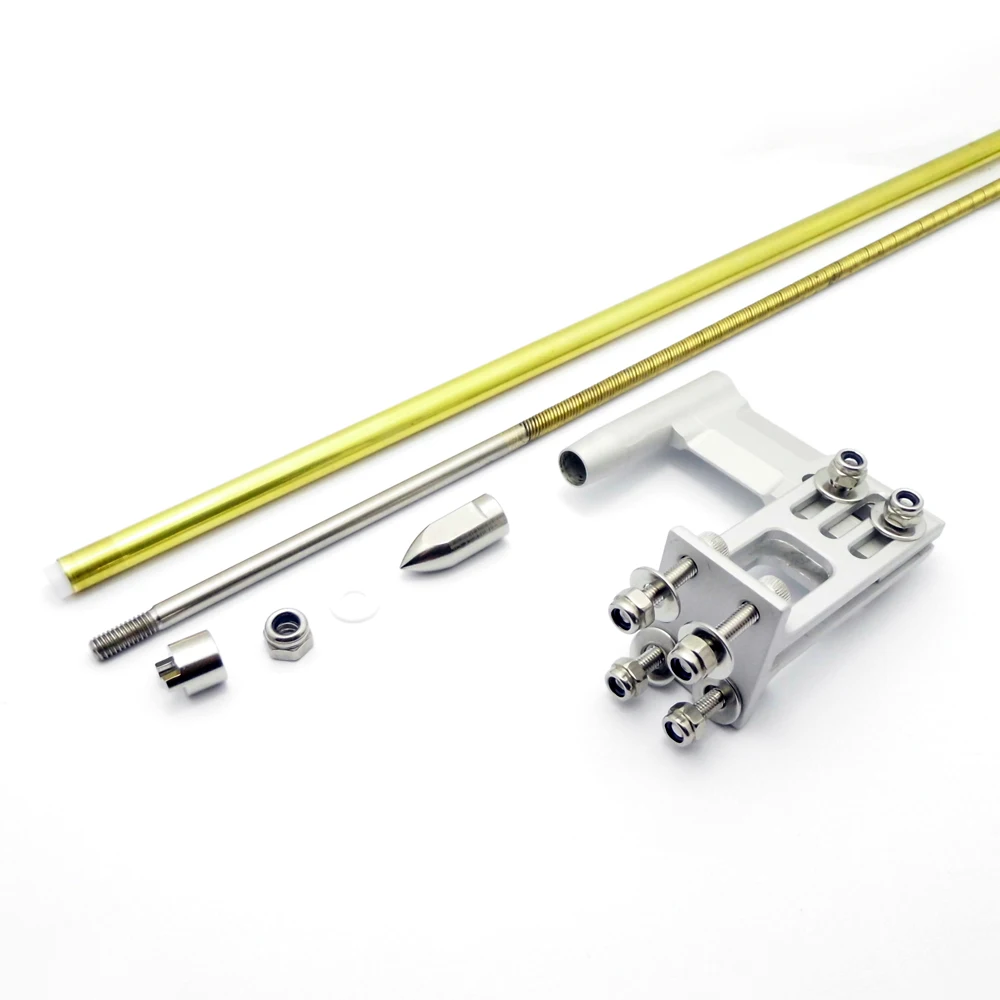

-- Item Contains --
1x flexible shaft( 350mm/400mm long optional )

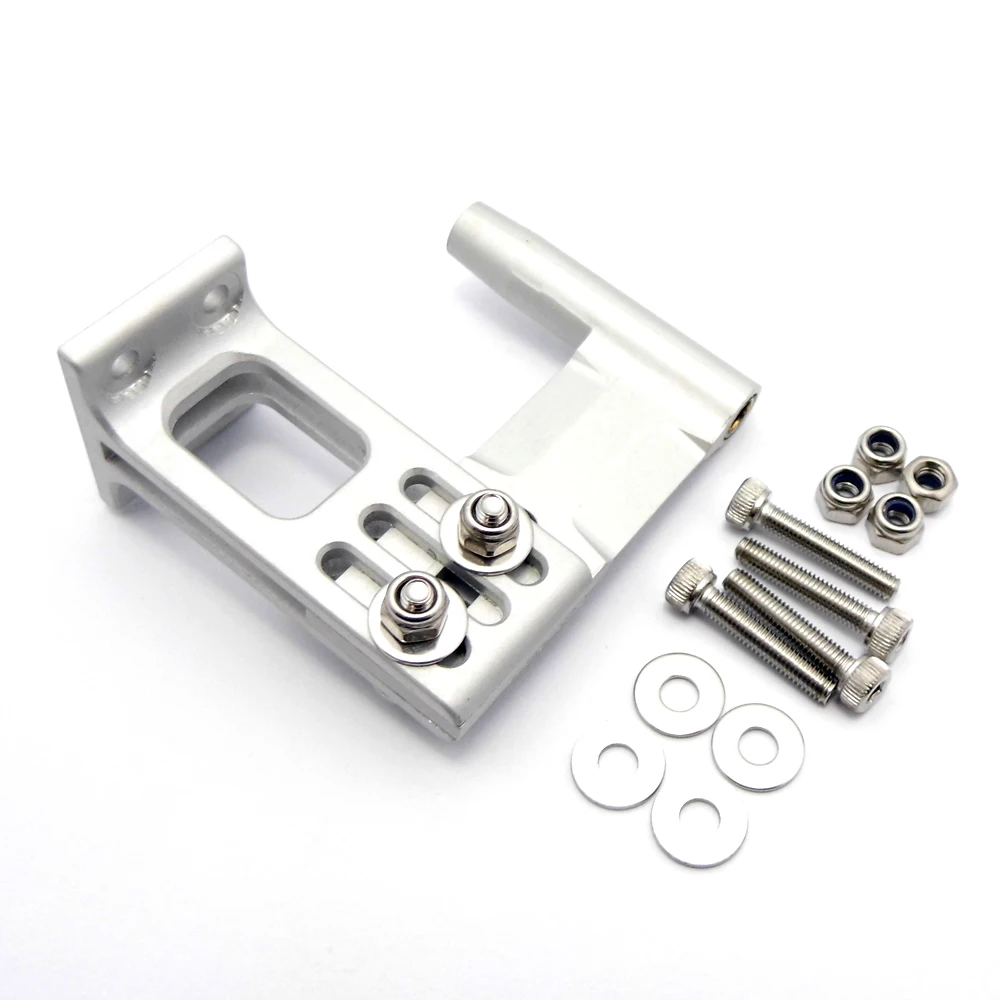

1x Shaft strut Holder
1x 300mm copper shaft sleeve
1x 310mm PTFE tube
1x 4mm white plastic washer
1x M4 threaded bullet
1x M4 Nut
1x 4mm drive dog
